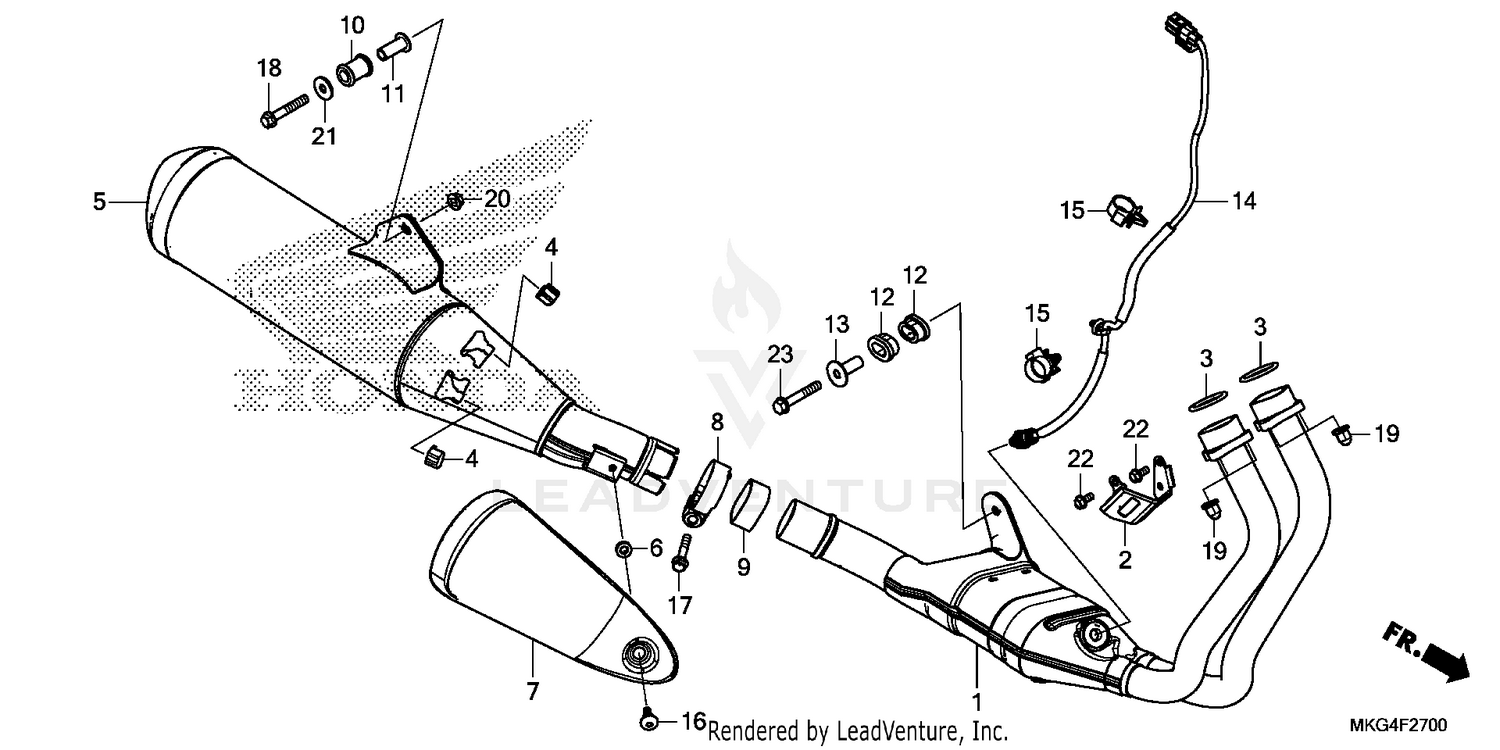

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EX.
18150-MKG-A00
|
$793.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SENSOR
18190-MGZ-J40
|
$26.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EX. PIPE
18291-MN4-920
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, PROTECTOR
18293-MN0-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER
18310-MKG-A00
|
$436.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, PROTECTOR MOUNTING
18345-MBT-610
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COVER, MUFFLER
18355-K87-A00
|
$31.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, L. RR. MUFFLER
18376-MG7-000
|
$32.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, MUFFLER
18391-MJW-J01
|
$13.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, MUFFLER MOUNTING
18421-MB0-000
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, MUFFLER MOUNTING
18422-KAF-700
Superseded by 18422-MAL-600
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, MUFFLER MOUNTING
18422-MAL-600
|
$7.44 | ||
|
Unavailable |
|||
|
#12
RUBBER, EX. PIPE MOUNTING
18422-MGZ-J00
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, EX. PIPE MOUNTING
18423-MGZ-J00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENSOR, OXYGEN (NGK)
36531-MKG-A01
|
$162.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENSOR, OXYGEN
36531-MKG-A02
|
$162.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, RETURN HOSE
53781-SE0-952
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (6X12)
90115-K87-A00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X40)
90161-MCT-770
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (8X50)
90163-GHB-730
|
$0.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEX. CAP (8MM)
90304-KPH-700
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (8MM)
94050-08070
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN (8MM)
94103-08700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X14)
95701-06014-07
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (8X50)
95701-08050-00
|
$2.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
