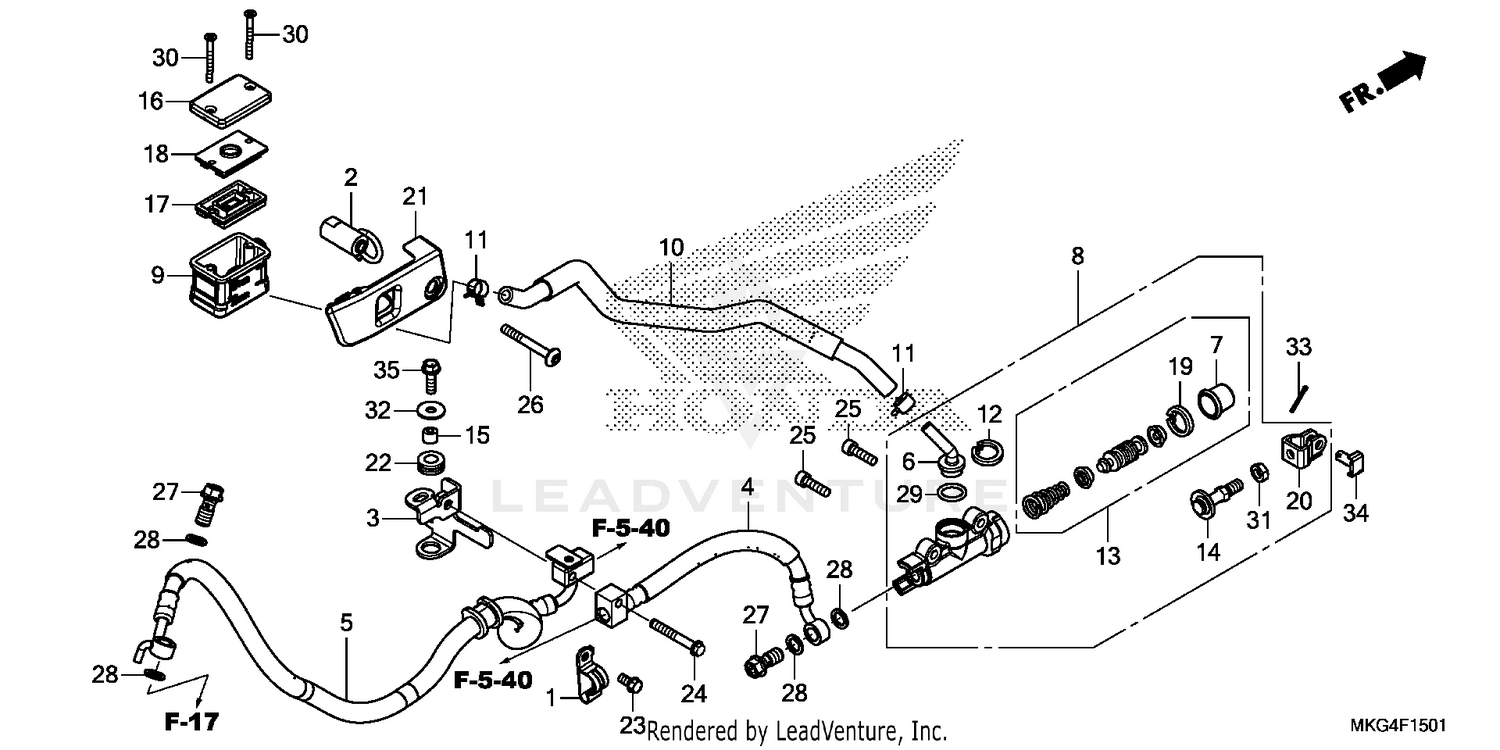

Rear Brake Master Cylinder (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, BRAKE HOSE
43155-K87-L50
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, OIL CUP
43156-K87-A00
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, RR. BRAKE HOSE
43160-K87-L50
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE A, RR. BRAKE
43314-K87-L51
|
$25.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE D, RR. BRAKE
43317-K87-L51
|
$42.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONNECTOR
43503-KCY-671
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
MASTER CYLINDER SUB-ASSY., RR. (NISSIN)
43510-K87-A01
|
$127.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUP, OIL
43511-KV3-831
|
$28.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, RR. MASTER CYLINDER
43512-K87-A01
|
$19.72 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP, RR. MASTER CYLINDER (FOR FR.)
43517-KS6-701
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MJ6-315
|
$54.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD, PUSH
43530-KZZ-901
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, BRAKE HOSE STAY
45161-K87-L50
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, MASTER CYLINDER (COO)
45513-HR0-305
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, MASTER CYLINDER (COO)
45513-KK1-771
Superseded by 45513-HR0-305
|
$5.22 | ||
|
Unavailable |
|||
|
#17
DIAPHRAGM
45520-MG7-006
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, DIAPHRAGM
45521-HA2-006
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
46182-MEL-D21
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
JOINT, BRAKE ROD
46504-KV6-702
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, OIL CUP
50328-K87-A00
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROMMET, MAIN PIPE COVER
64312-KWW-640
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X12) (L. SIDE ONLY)
90013-GHB-610
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X45)
90013-GHB-720
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, SOCKET (6X22)
90111-GHB-660
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, SOCKET SPECIAL (6X50)
90113-K87-A00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW,FLAT,4X40
93600-040401G
|
$0.55 | ||
|
Unavailable |
|||
|
#31
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLAIN (6MM)
94103-06000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)
95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
