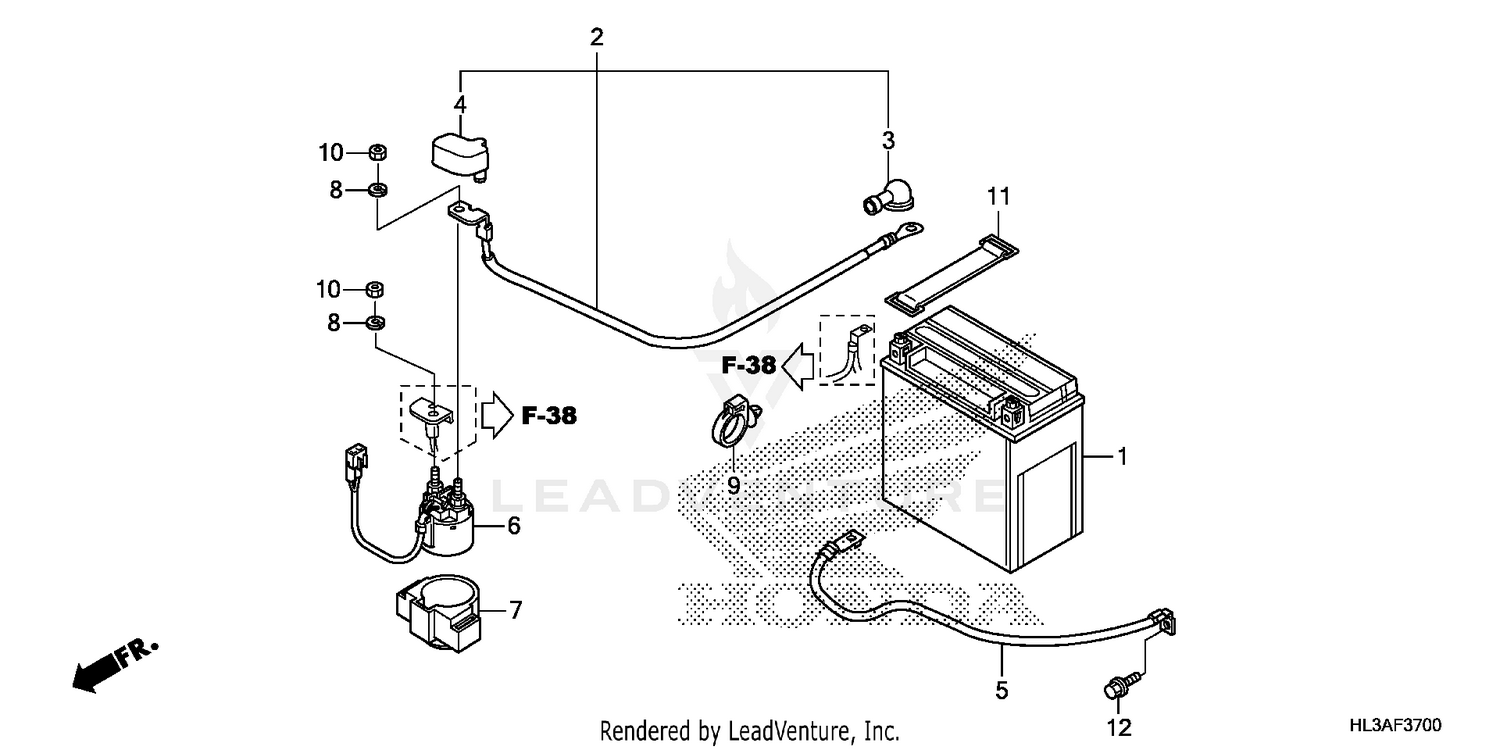

Battery Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BATTERY YTX14-BS
31500-HC4-726
Superseded by 31500-HL5-F62AH
|
$135.02 | ||
|
Unavailable |
|||
|
#1
BATTERY (YTX14-BS) (YUASA) (MSDS)
31500-HC4-726AH
|
$135.02 | ||
|
Unavailable |
|||
|
#2
CABLE, STARTER MOTOR
32405-HL3-A00
|
$89.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, TERMINAL
32411-473-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, MAGNETIC SWITCH TERMINAL
32416-HN5-670
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE, BATTERY GROUND
32601-HL3-A00
|
$34.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH ASSY., STARTER MAGNETIC
35850-HN7-003
|
$70.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, MAGNETIC SHOCK (Honda Code 8611063)
35856-HP5-600
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING (6MM) (Honda Code 1310549)
90052-ZA0-800
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, HARNESS
90652-HC4-003
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, HEX. (6MM)
94002-06390-0S
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND F, BATTERY (155MM)
95012-17001
|
$9.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
