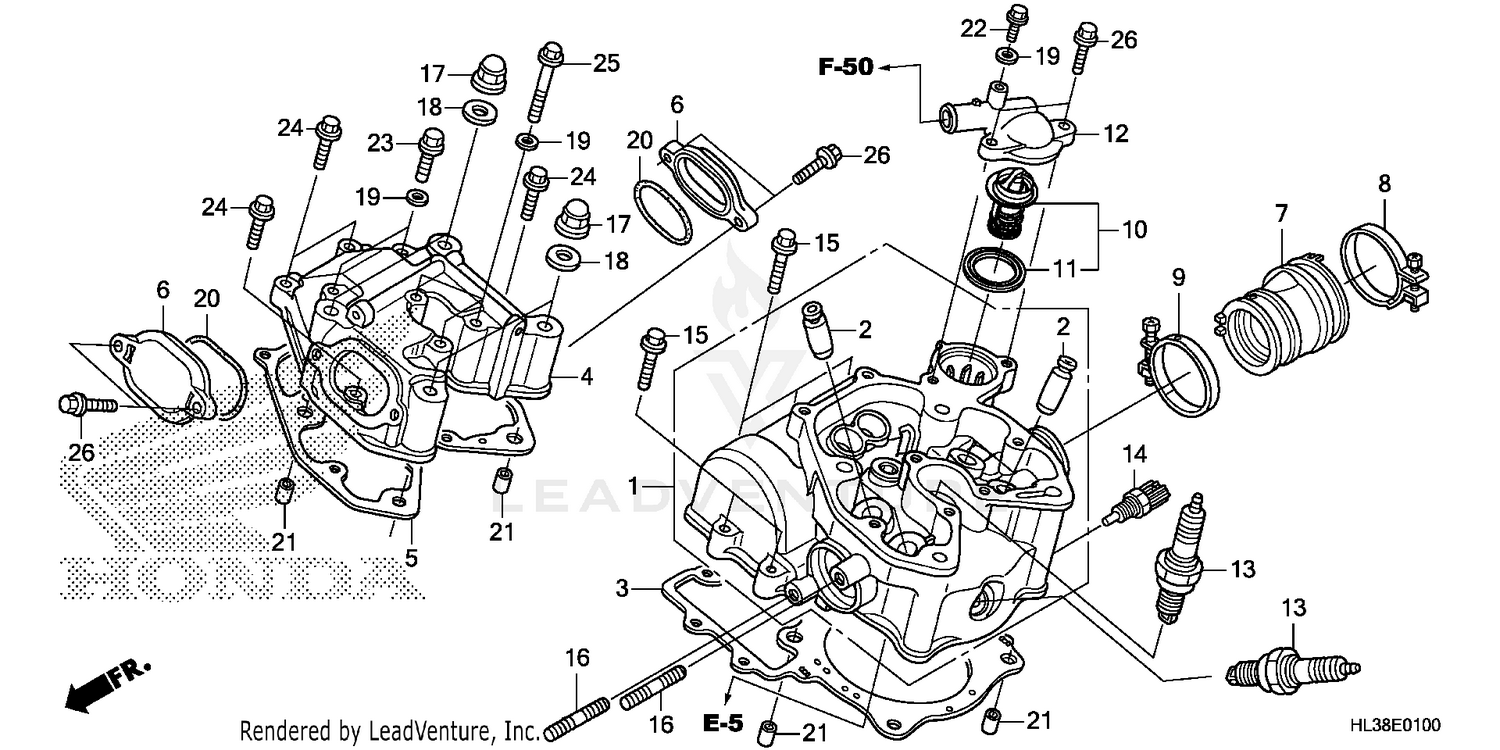

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-HN8-F40
|
$924.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-HN2-305
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD
12251-HN8-A61
|
$58.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, CYLINDER HEAD
12310-HN8-000
|
$237.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CYLINDER HEAD COVER
12315-HN8-000
|
$20.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, TAPPET ADJUSTING HOLE
12351-HN2-010
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
INSULATOR, THROTTLE BODY
16211-HL3-A00
|
$33.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, INSULATOR
16218-MCA-000
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, INSULATOR
16218-MGS-D30
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
THERMOSTAT SET
19300-HN8-305
|
$79.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, THERMOSTAT
19305-KV3-010
|
$7.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
COVER, THERMOSTAT
19321-HL1-A00
|
$32.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (CPR6EB-9) (NGK)
31916-HN8-F41
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENSOR ASSY., WATER TEMPERATURE
37870-MGS-D31
|
$60.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X28) (NSHF)
90004-GHB-680
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, STUD (8X30)
90035-HL3-A00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE CAP (10MM)
90201-HA0-000
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CAP (10MM)
90202-HA0-000
Superseded by 90201-HA0-000
|
$8.09 | ||
|
Unavailable |
|||
|
#18
WASHER, PLAIN (10MM)
90401-437-000
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SEALING (6MM)
90441-706-000
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (57X2.5)
91308-500-000
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN A, DOWEL (12X16)
94301-12160
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)
95701-06020-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X65) (Honda Code 2552545)
95701-06065-00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
