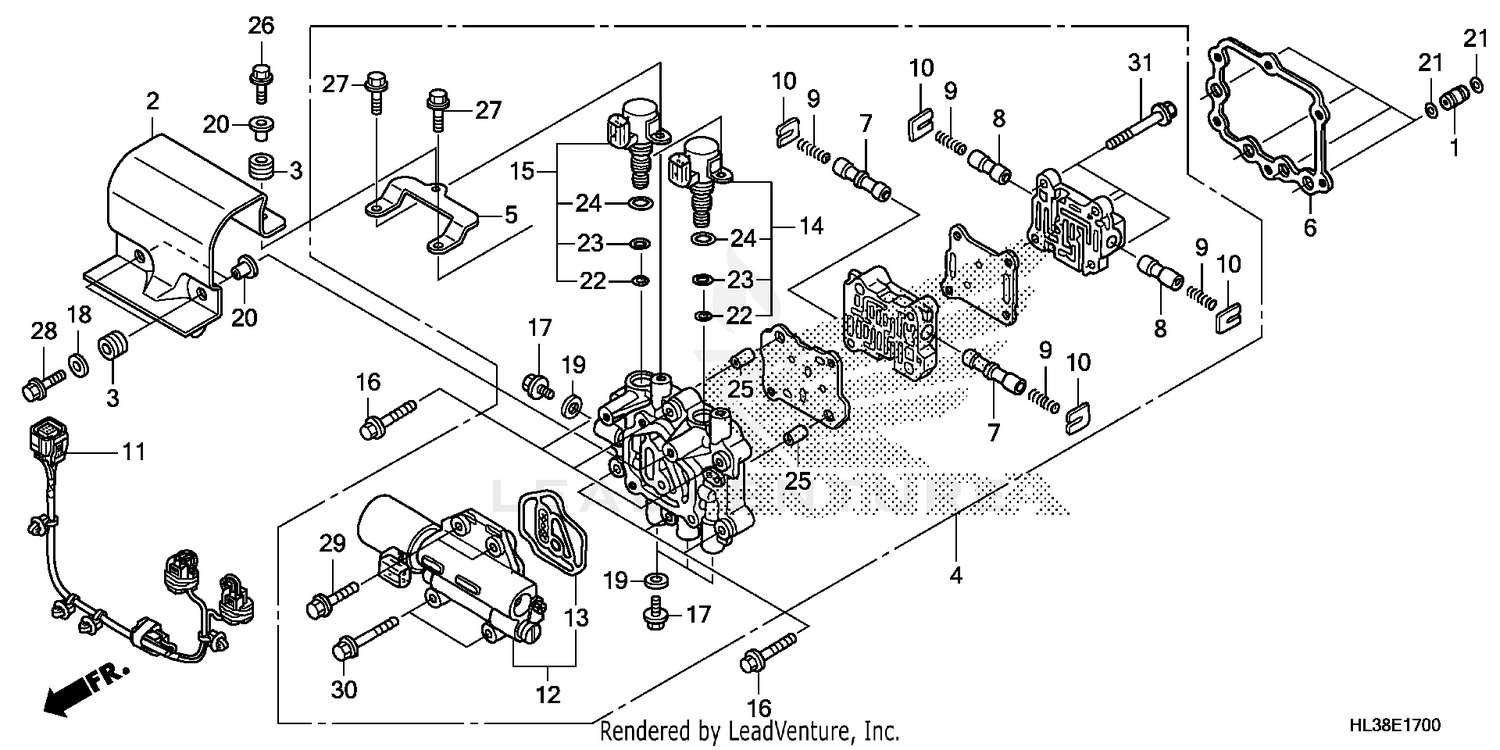

Main Valve Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, OIL GUIDE (10MM)
11334-HN8-010
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SOLENOID
11355-HL1-A00
|
$26.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, PROTECTOR MOUNTING
18345-MBT-610
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BODY ASSY., VALVE
27100-HL1-A01
|
$1,081.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, SOLENOID COVER
27105-HL1-A00
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, OIL CONTROL COVER
27135-HN8-000
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE, SHIFT
27211-HN8-003
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE, ORIFICE CONTROL
27221-HN8-003
|
$11.72 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, VALVE
27231-HN8-003
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT, VALVE SPRING
27263-PX3-000
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#11
SUB-WIRE, SOLENOID
32102-HL3-A00
|
$58.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
SOLENOID ASSY., LINEAR
38610-HN8-003
|
$315.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, BASE
38615-HN8-003
|
$26.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
SOLENOID ASSY. A
38620-HN8-003
|
$114.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
SOLENOID ASSY. B
38630-HN8-003
|
$114.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X32) (NSHF)
90004-GHB-690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SEALING (8MM)
90024-612-000
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, RR. COVER GROMMET (FOR FR.)
90439-MB0-000
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (6MM)
90512-440-980
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING (7X1.7)
91301-473-003
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (7.6X1.9) (KEIHIN)
91301-P6H-003
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (9.6X1.9)
91302-P6H-003
Superseded by 91302-P7W-A00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (9.6X1.9)
91302-P7W-A00
|
$3.05 | ||
|
Unavailable |
|||
|
#24
O-RING (11.7X1.9) (KEIHIN)
91303-P6H-003
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X25) BOLT, FLANGE (6X16)
95701-06025-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X35)
95701-06035-08
|
$1.82 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE (6X50)
95701-06050-08
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
