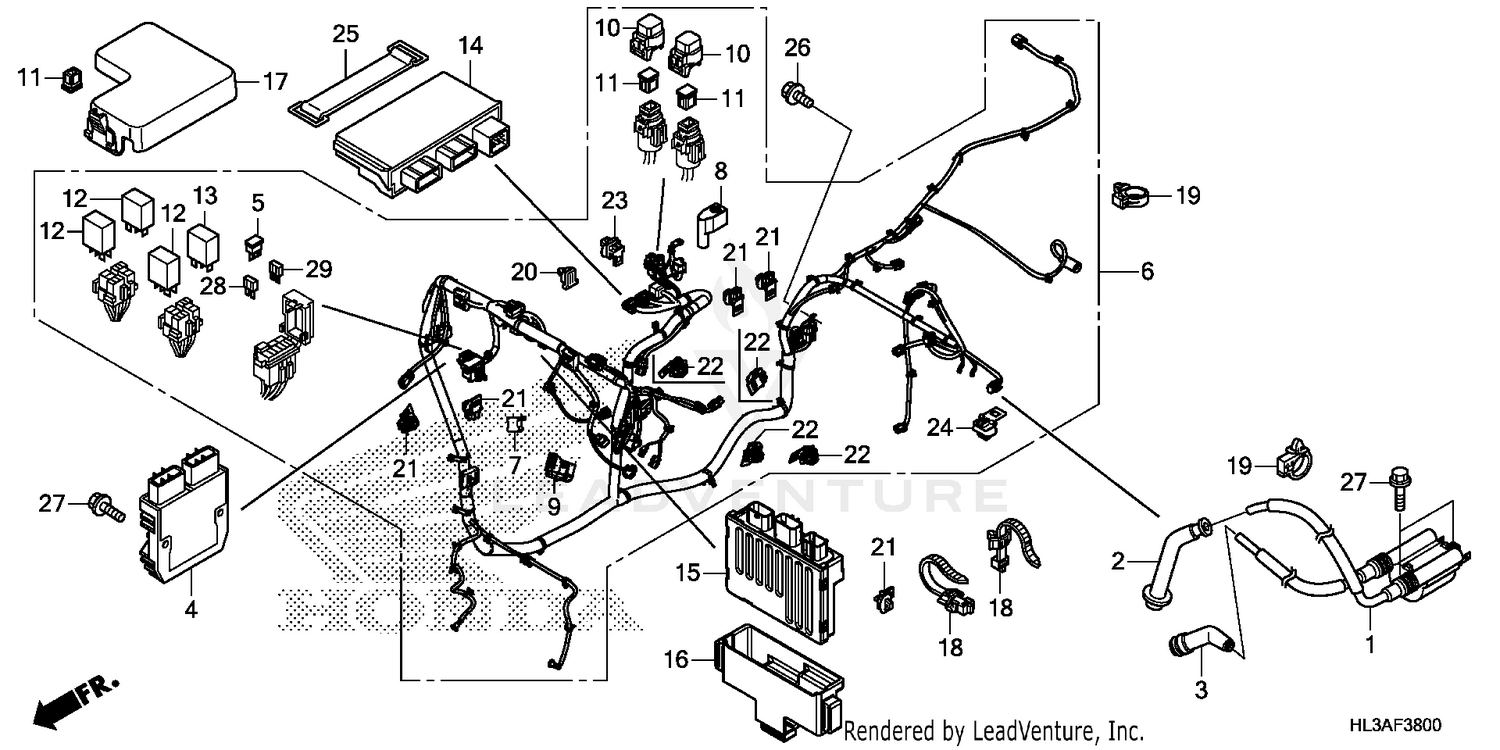

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL ASSY., IGNITION
30510-HL3-A41
|
$112.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-HL3-A41
|
$30.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP ASSY., NOISE SUPPRESSOR (NGK)
30701-HN8-F41
|
$31.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
RECTIFIER ASSY., REGULATOR
31600-MGZ-J01
|
$227.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE HARNESS
32100-HL3-610
|
$3,104.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONNECTOR, DIODE (2P) (3A)
32146-S84-003
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, BATTERY TERMINAL
32414-MW0-000
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, DUMMY (WPC 4P 090 M) (RED)
32606-K44-V01
|
$8.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER ASSY., FUSE (40A)
38205-HP0-B11
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE, BLOCK (40A)
38211-SNA-A21
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#12
RELAY, POWER (MICRO ISO 4P)
38501-MCS-G01
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
RELAY, POWER (MICRO ISO 5P)
38502-MCS-G01
|
$12.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PGM-FI UNIT
38770-HL3-602
|
$267.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
EPS UNIT
39980-HL3-611
|
$711.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION, EPS UNIT
39981-HN2-B70
|
$6.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, FUSE BOX
61130-HL3-A00
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, WIRE HARNESS (150MM) (NATURAL)
90649-SC2-003
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP, HARNESS
90652-HC4-003
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, CONNECTOR (NATURAL)
91533-S04-003
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, CONNECTOR (DARK BLUE)
91535-STK-003
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, CONNECTOR
91565-S3Y-003
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, CONNECTOR (BLACK) (Honda Code 7386865)
91565-SEL-003
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND F, BATTERY (155MM)
95012-17001
|
$9.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#28
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#29
FUSE, MINI (15A) (Honda Code 4853438)
98200-41500
|
$1.27 | ||
|
Unavailable |
|||
