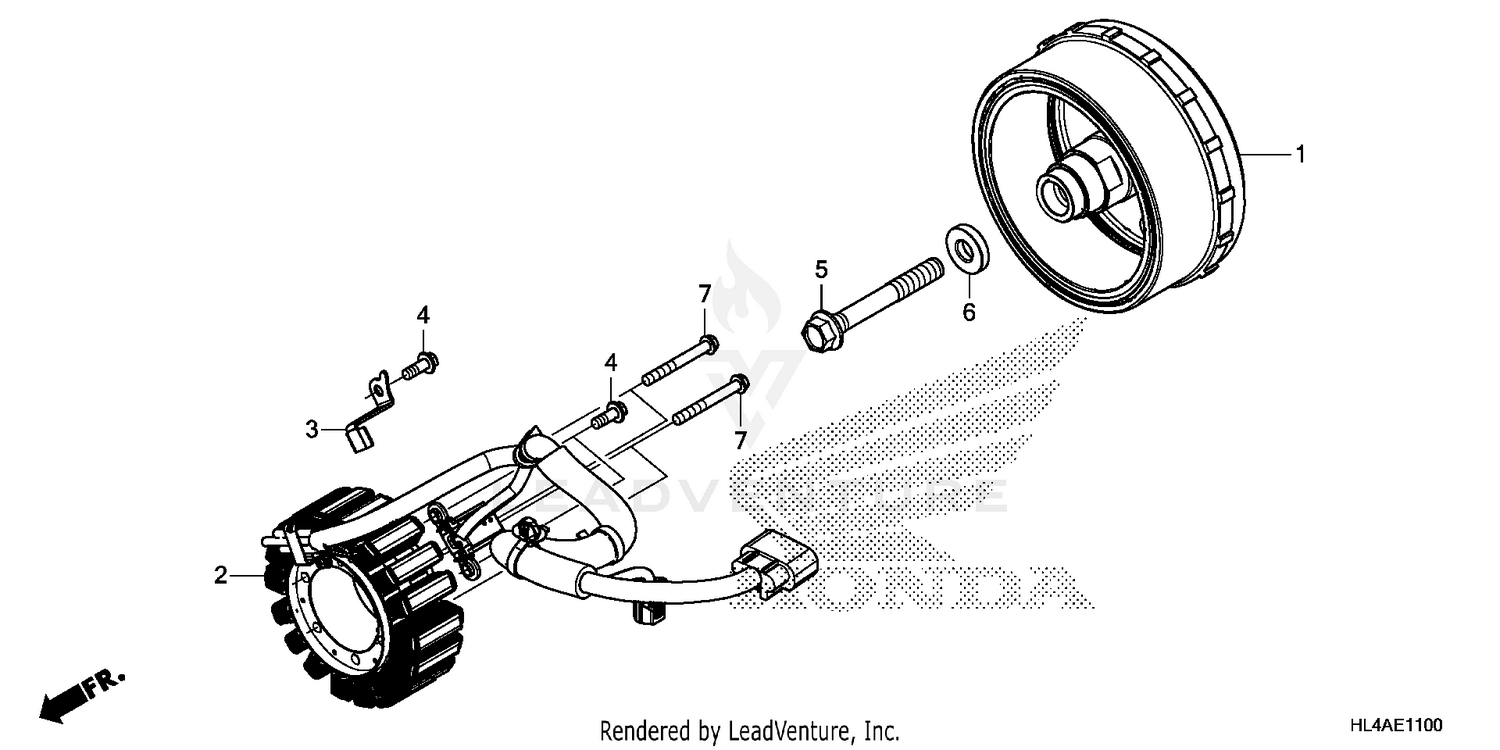

Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLYWHEEL
31110-HL4-003
|
$526.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
STATOR
31120-HL4-003
|
$503.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, ALTERNATOR WIRE
32112-HL4-000
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE (6X16) (NSHF)
90004-GHB-630
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SPECIAL (12MM)
90081-HR0-F20
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER (12.3X29X6)
90401-HL4-000
|
$16.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X50) BOLT, FLANGE (6X55)
96001-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
