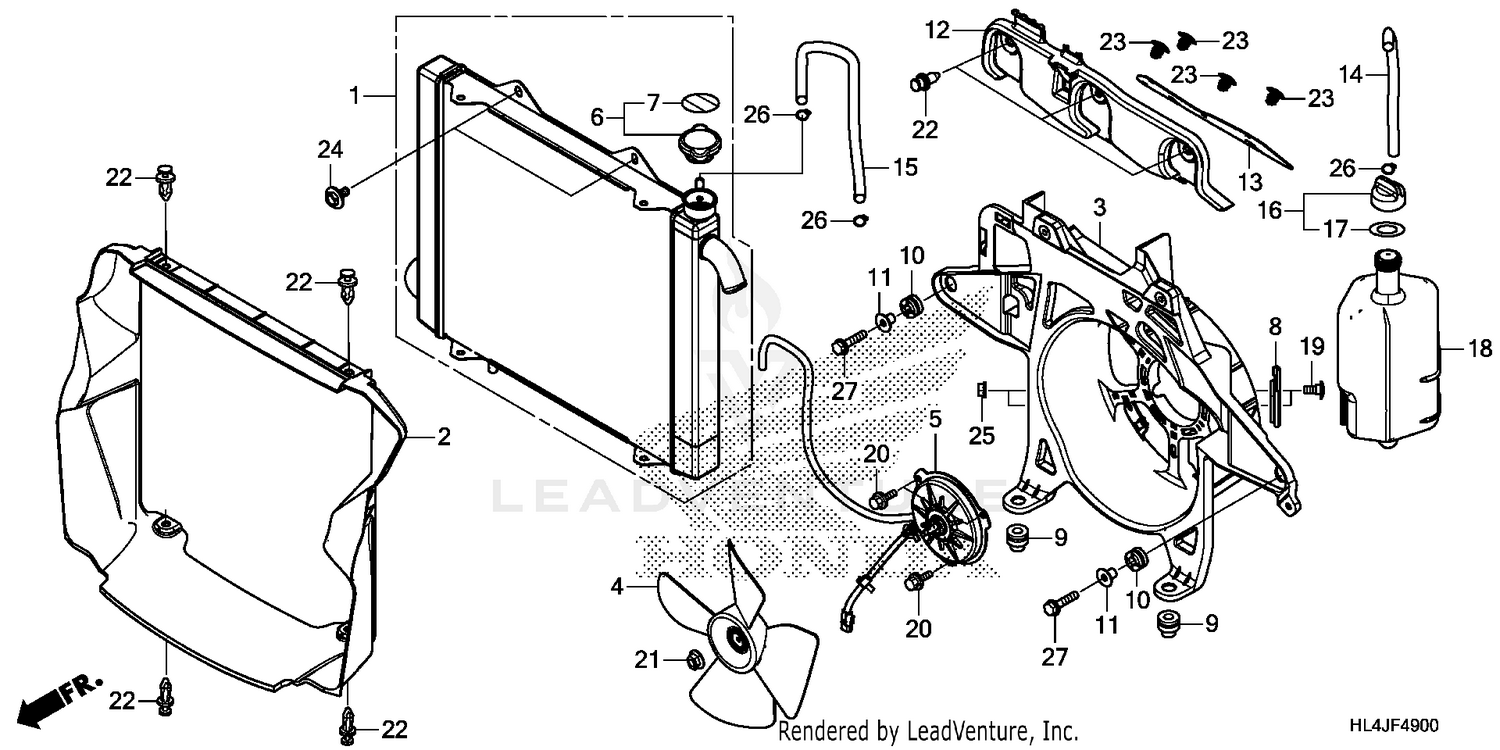

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR
19010-HL4-F01
|
$165.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHROUD, RADIATOR
19014-HL4-A00
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, FAN MOTOR
19015-HL4-A01
|
$81.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
FAN, COOLING
19020-HN7-000
Superseded by 19020-HL3-A01
|
$23.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
MOTOR ASSY., FAN
19030-HL4-F41
|
$151.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, RADIATOR
19037-GEE-710
|
$36.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
LABEL, RADIATOR CAP
19046-PAA-A00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, RESERVE TANK
19050-HL4-A00
|
$23.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, RADIATOR MOUNTING
19051-HL4-A00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, RADIATOR MOUNTING
19052-MGH-640
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, AIR GUIDE
19071-HL4-F00
|
$10.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, AIR GUIDE
19072-HL4-F00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE A, RESERVE TANK
19103-HL4-A00
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE B, RESERVE TANK
19104-HL4-A00
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP ASSY., RESERVE TANK
19106-GET-000
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, RESERVE TANK
19107-GET-000
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
TANK, RADIATOR RESERVE
19110-HL4-F00
|
$16.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (6X14)
90106-KBV-000
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (5X10)
90196-MBB-003
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SERRATE (5MM)
90315-MK3-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CLIP, WASHER MOUTH (SOURCE: VINTAGE PARTS INC.)
91504-SD5-003
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT-WASHER (6X14)
93404-06014-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CLIP, TUBE (C11)
95002-70000
|
$1.72 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (6X22)
95701-06022-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
