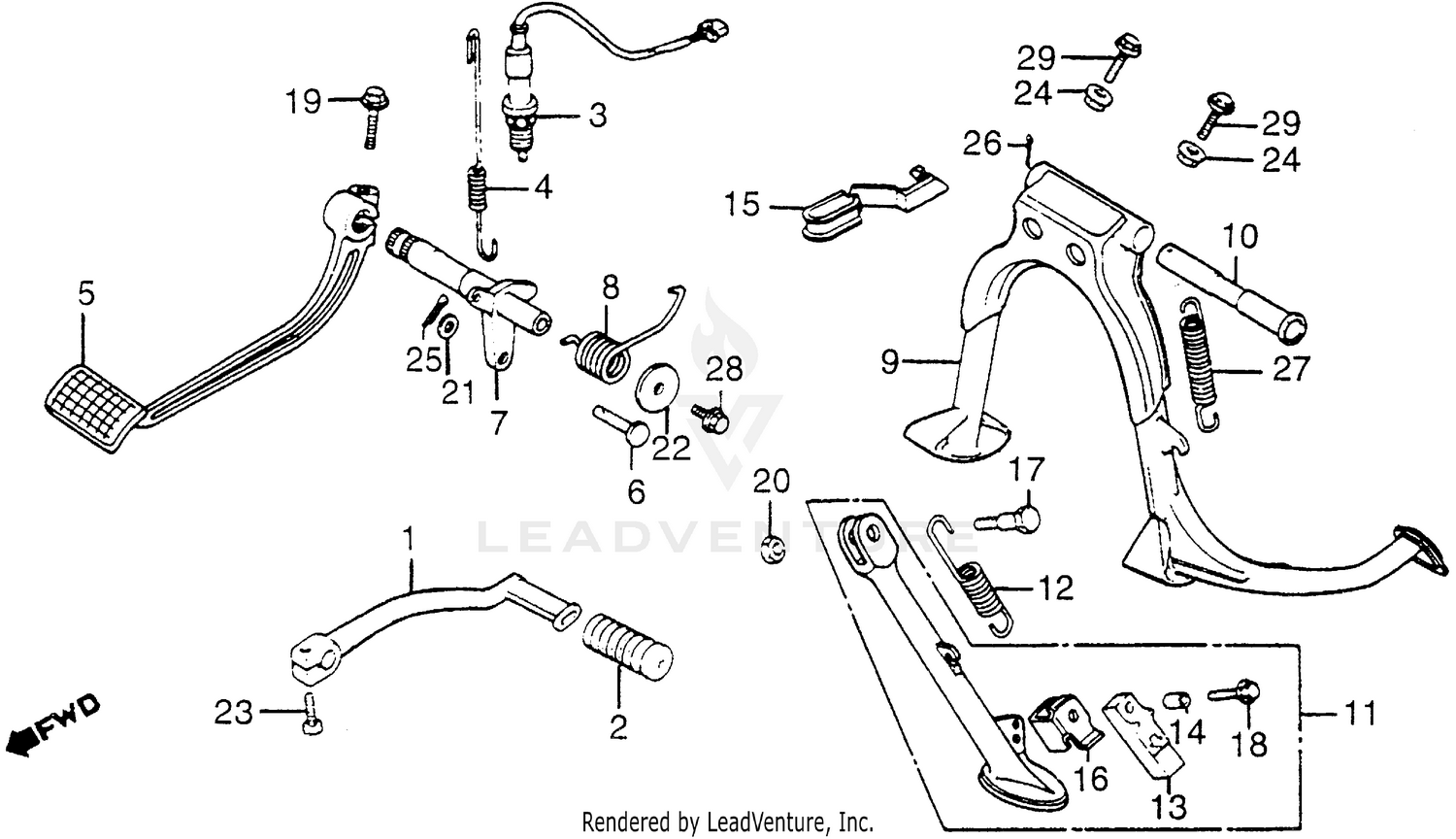

Gearshift Pedal + Brake Pedal + Stands Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT (NOT AVAILABLE)
24701-MG9-680
|
$37.82 | ||
|
Unavailable |
|||
|
#2
RUBBER, GEARSHIFT PEDAL
24781-419-000
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH ASSY., RR. STOP
35350-MF9-405
|
$13.73 | ||
|
Unavailable |
|||
|
#3
SWITCH ASSY., RR. STOP
35350-MG9-000
Superseded by 35350-MF9-405
|
$13.73 | ||
|
Unavailable |
|||
|
#4
SPRING, STOP SWITCH
35357-KC1-000
Superseded by 35357-KC1-730
|
$4.49 | ||
|
Unavailable |
|||
|
#4
SPRING, STOP SWITCH
35357-KC1-730
|
$4.49 | ||
|
Unavailable |
|||
|
#5
PEDAL, RR. BRAKE
46500-MG9-000
Superseded by 46500-ML8-700
|
$88.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
PEDAL, RR. BRAKE
46500-ML8-700
|
$88.00 | ||
|
Unavailable |
|||
|
#6
PIN, BRAKE ROD
46503-371-000
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPINDLE, RR. BRAKE
46505-MG9-000
|
$46.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, BRAKE PEDAL
46506-MG9-000
|
$8.55 | ||
|
Unavailable |
|||
|
#9
STAND, MAIN (NOT AVAILABLE)
50500-MG9-680
|
$87.22 | ||
|
Unavailable |
|||
|
#10
PIPE, MAIN STAND PIVOT
50526-300-000
|
$16.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAR ASSY., SIDE STAND (NOT AVAILABLE)
50540-MG9-680
|
$64.00 | ||
|
Unavailable |
|||
|
#12
SPRING, SIDE STAND
50541-MB0-000
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, STAND
50548-356-700
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, STAND RUBBER SETTING
50549-356-700
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, DRAIN TUBE
50550-MG9-680
|
$7.08 | ||
|
Unavailable |
|||
|
#16
BRACKET, SIDE STAND RUBBER
50574-MB0-000
|
$8.30 | ||
|
Unavailable |
|||
|
#17
SCREW, SIDE STAND
90108-MG9-680
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SIDE STAND RUBBER
90115-MB0-000
|
$2.43 | ||
|
Unavailable |
|||
|
#19
BOLT, SPECIAL FLANGE (8X26)
90183-438-000
|
$6.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, SIDE STAND
90203-MJ4-000
|
$4.32 | ||
|
Unavailable |
|||
|
#21
WASHER (7X12)
90501-310-000
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER (31X6.3X2.3) (NOT AVAILABLE)
90501-689-000
|
$3.15 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (6X20)
92000-06020
Superseded by 92101-06020-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEX. (6X20)
92101-06020-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#24
NUT, FLANGE (8MM)
94050-08080
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PIN, COTTER (1.6X25)
94201-16250
|
$1.08 | ||
|
Unavailable |
|||
|
#26
PIN, SPLIT (2.5X30)
94201-25250
Superseded by 94201-25300
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, SPLIT (2.5X30)
94201-25300
|
$1.08 | ||
|
Unavailable |
|||
|
#27
SPRING G, MAIN STAND
95014-71702
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X10)
95700-06010-00
Superseded by 95701-06010-00
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X10)
95701-06010-00
|
$1.32 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (8X40)
95700-08040-08
Superseded by 95701-08040-08
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (8X40)
95701-08040-08
|
$2.32 | ||
|
Unavailable |
|||
