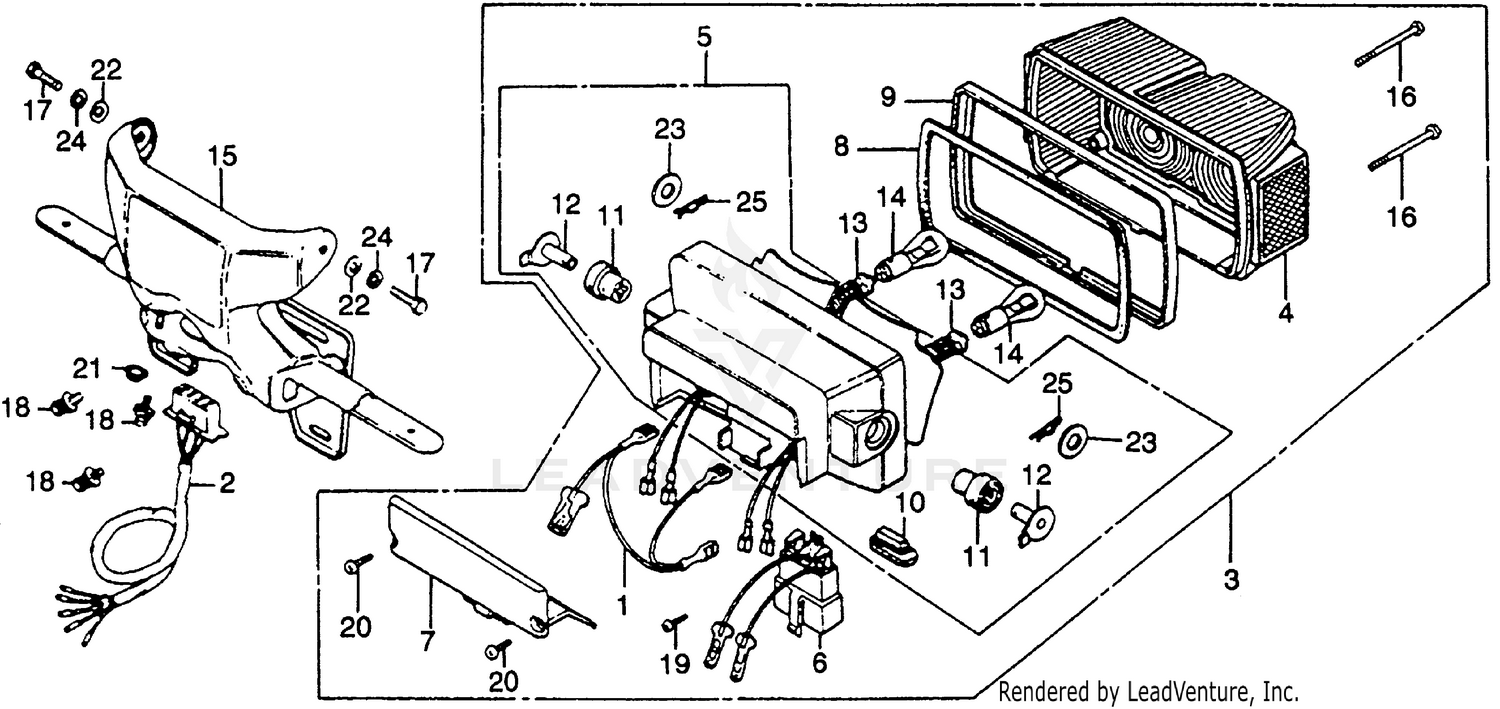

Taillight 79 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, GROUND (NOT AVAILABLE)
32101-422-003
|
$7.49 | ||
|
Unavailable |
|||
|
#2
SUB-WIRE HARNESS (NOT AVAILABLE)
32101-431-780
|
$24.44 | ||
|
Unavailable |
|||
|
#3
TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE)
33701-422-672
Superseded by 33701-422-673
|
$295.73 | ||
|
Unavailable |
|||
|
#3
TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE)
33701-422-673
|
$295.73 | ||
|
Unavailable |
|||
|
#4
LENS, TAILLIGHT
33702-422-671
|
$68.21 | ||
|
Unavailable |
|||
|
#5
BASE, TAILLIGHT (NOT AVAILABLE)
33703-422-672
Superseded by 33703-422-673
|
$172.53 | ||
|
Unavailable |
|||
|
#5
BASE, TAILLIGHT (NOT AVAILABLE)
33703-422-673
|
$172.53 | ||
|
Unavailable |
|||
|
#6
CONNECTOR (NOT AVAILABLE)
33704-422-003
|
$22.09 | ||
|
Unavailable |
|||
|
#7
COVER, TAILLIGHT (NOT AVAILABLE)
33708-422-003
|
$23.49 | ||
|
Unavailable |
|||
|
#8
GASKET, TAILLIGHT LENS (NOT AVAILABLE)
33709-422-003
|
$9.32 | ||
|
Unavailable |
|||
|
#9
RIM, TAILLIGHT (NOT AVAILABLE)
33710-422-003
|
$16.78 | ||
|
Unavailable |
|||
|
#10
RUBBER, SETTING (NOT AVAILABLE)
33711-422-003
Superseded by 33711-422-013
|
$4.20 | ||
|
Unavailable |
|||
|
#10
RUBBER, SETTING (NOT AVAILABLE)
33711-422-013
|
$4.20 | ||
|
Unavailable |
|||
|
#11
RUBBER B, SETTING (NOT AVAILABLE)
33713-422-013
|
$5.75 | ||
|
Unavailable |
|||
|
#12
COLLAR, TAILLIGHT SETTING
33715-422-013
|
$9.27 | ||
|
Unavailable |
|||
|
#13
WIRE, TAILLIGHT (NOT AVAILABLE)
33718-422-003
|
$12.65 | ||
|
Unavailable |
|||
|
#14
BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)
34906-MG9-771
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)
34906-341-671
Superseded by 34906-MG9-771
|
$5.20 | ||
|
Unavailable |
|||
|
#15
BRACKET, NUMBER PLATE (NOT AVAILABLE)
84700-431-781
|
$85.24 | ||
|
Unavailable |
|||
|
#16
SCREW, TAPPING (4X60)
90147-147-671
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX. (6X20)
92000-06020-02
Superseded by 92101-06020-0B
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX. (6X20)
92018-06020-02
Superseded by 92101-06020-0B
|
$2.13 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. (6X20)
92101-06020-0B
|
$2.13 | ||
|
Unavailable |
|||
|
#18
BOLT-WASHER (6X12)
93403-06012-00
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT-WASHER (6X12)
93493-06012-00
Superseded by 93403-06012-00
|
$1.82 | ||
|
Unavailable |
|||
|
#19
SCREW, TAPPING (3X8)
93901-22110
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING (4X10)
93901-24210
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER, PLAIN (6MM)
94101-06200
|
$0.78 | ||
|
Unavailable |
|||
|
#23
WASHER, PLAIN (8MM)
94103-08800
|
$0.98 | ||
|
Unavailable |
|||
|
#24
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PIN, LOCK (8MM)
94251-08000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
