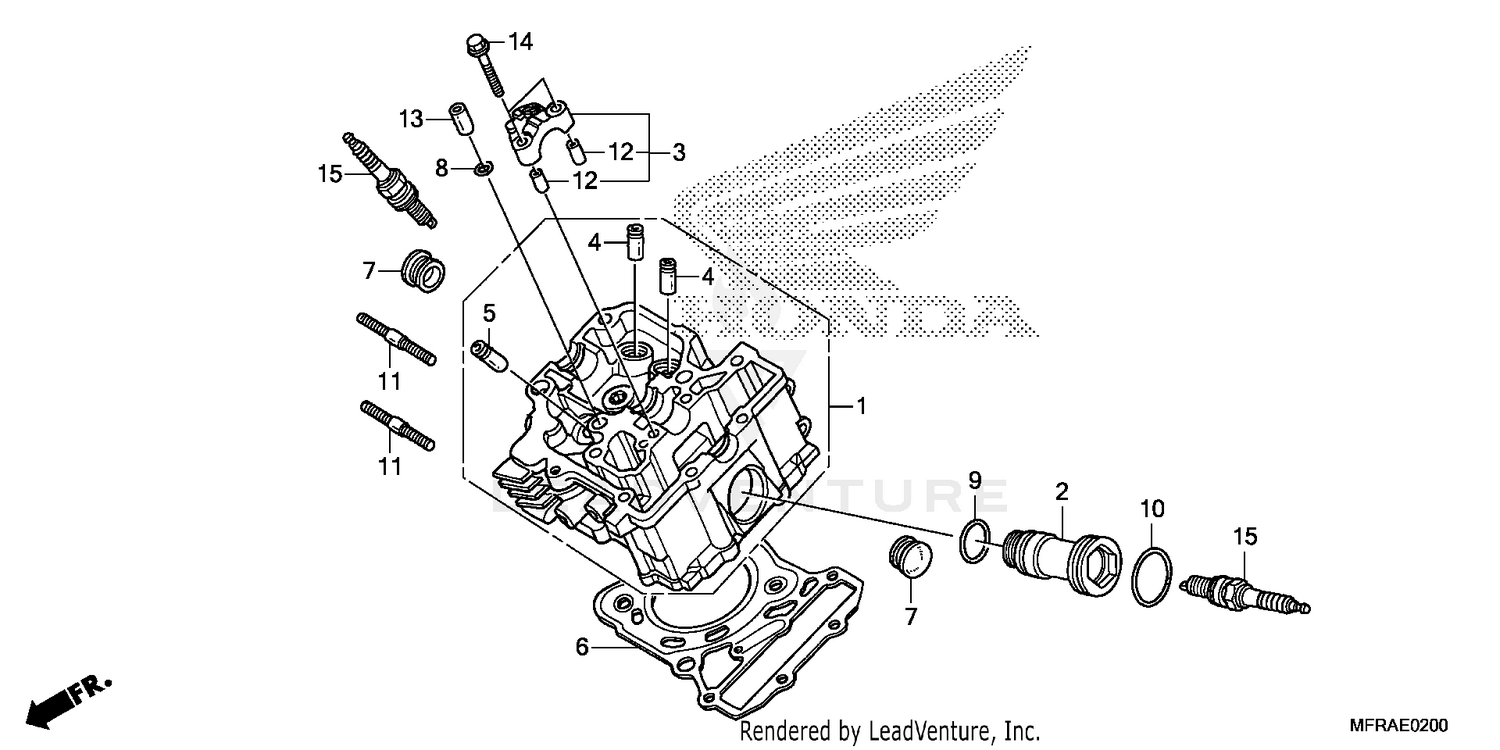

Front Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD, FR.
12210-MFY-A00
|
$1,251.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
SLEEVE, PLUG
12225-MG8-000
|
$44.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, CAMSHAFT
12230-MEA-670
|
$30.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, IN. VALVE (OVER SIZE)
12231-MG8-305
|
$24.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, IN VALVE
12233-MG8-305
Superseded by 12233-MG8-405
|
$20.26 | ||
|
Unavailable |
|||
|
#6
GASKET, CYLINDER HEAD
12251-MFR-671
|
$47.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, CAMSHAFT
12312-ME9-750
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (11.8X2.4)
91302-ZE9-003
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (27.4X2.4) (ARAI) (Honda Code 1871326)
91304-MG7-003
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (35.3X2.4) (NOK)
91351-MG7-004
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT 2, STUD (8X28)
92900-08028-0E
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PIN A, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X38)
95701-06038-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPARK PLUG (XU20EPR-U) (DENSO)
98069-5695Q
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPARK PLUG (DCPR6E) (NGK)
98069-5697Q
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPARK PLUG (XU22EPR-U) (DENSO)
98069-5795Q
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPARK PLUG (DCPR7E) (NGK)
98069-5797Q
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
