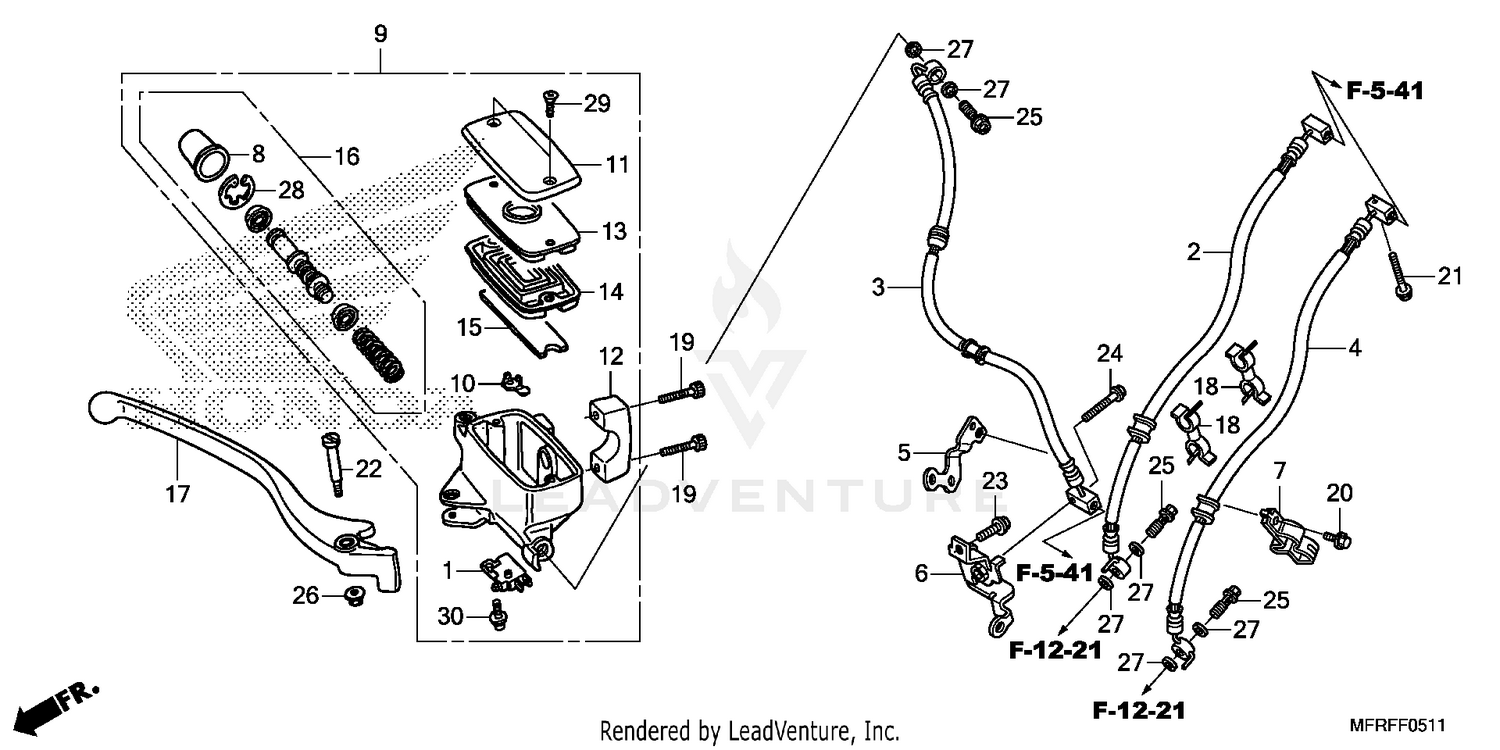

Front Brake Master Cylinder (3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MM5-601
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE C, SUB-BRAKE
43322-MFR-A01
|
$68.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE A, FR. BRAKE
45124-MFR-A01
|
$64.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE F, FR. BRAKE
45129-MFR-A01
|
$59.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, L. FR. BRAKE HOSE
45138-MFR-670
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, BRAKE JOINT
45156-MFR-A00
|
$16.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, FR. BRAKE HOSE
45181-MFR-A00
|
$10.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
MASTER CYLINDER SUB-ASSY., FR. BRAKE
45510-MFR-306
Superseded by 45510-MFR-681
|
$291.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
MASTER CYLINDER SUB-ASSY., FR. BRAKE
45510-MFR-681
|
$291.53 | ||
|
Unavailable |
|||
|
#10
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, MASTER CYLINDER (NISSIN)
45513-MM5-016
|
$27.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, MASTER CYLINDER (NISSIN)
45517-MAV-751
|
$25.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, DIAPHRAGM (NISSIN)
45518-MM5-006
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIAPHRAGM (NISSIN)
45520-MM5-006
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
FLOAT, FR. MASTER CYLINDER (NISSIN)
45523-MN5-006
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
MASTER CYLINDER SET
45530-471-831
|
$48.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER, R. HANDLEBAR
53175-MR5-305
Superseded by 53175-MR5-003
|
$19.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, SENSOR HOSE
53740-SE0-952
Superseded by 53740-SE0-953
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, SENSOR HOSE
53740-SE0-953
|
$3.43 | ||
|
Unavailable |
|||
|
#19
BOLT, SOCKET (6X22)
90101-MCL-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X10)
90106-MBZ-G00
|
$1.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X25)
90106-MEJ-D00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, R. HANDLEBAR PIVOT
90114-MA5-671
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X12)
90123-MCH-A00
|
$1.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X25)
90124-MCH-A00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#30
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
