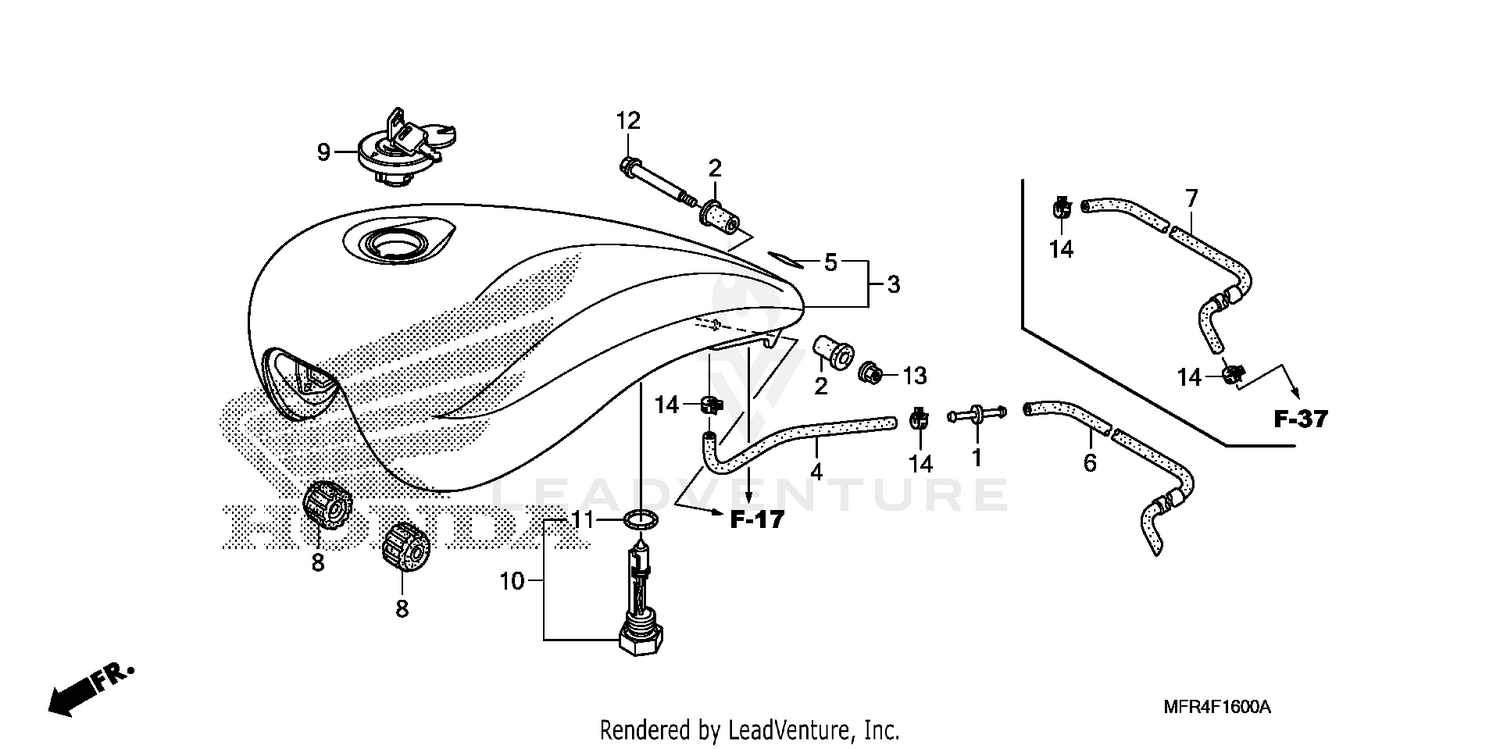

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, FUEL TUBE
16958-GJ6-000
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION, FUEL TANK PIVOT
17506-MBR-000
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
TANK SET, FUEL *NHB01* (GRAPHITE BLACK)
17520-MFR-670ZB
|
$1,707.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, FUEL TANK BREATHER
17528-MCV-K00
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
TAPE, TANK GUARD
17528-MR4-900
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, CANISTER JOINT
17529-MFR-770
|
$15.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION, FR. FUEL TANK
17611-KE8-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, FR. FUEL TANK
17611-286-000
Superseded by 17611-KE8-000
|
$5.29 | ||
|
Unavailable |
|||
|
#9
CAP, FUEL FILLER
17620-KR3-751
Superseded by 17620-KR3-753
|
$85.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR ASSY., FUEL RESERVE
37810-MER-D01
|
$63.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, FUEL RESERVE SENSOR
37811-MB1-008
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, TANK HINGE
90135-MFR-670
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U (6MM) NUT, FLANGE (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CLAMP, TUBE (8.0)
90652-KSJ-A21
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
