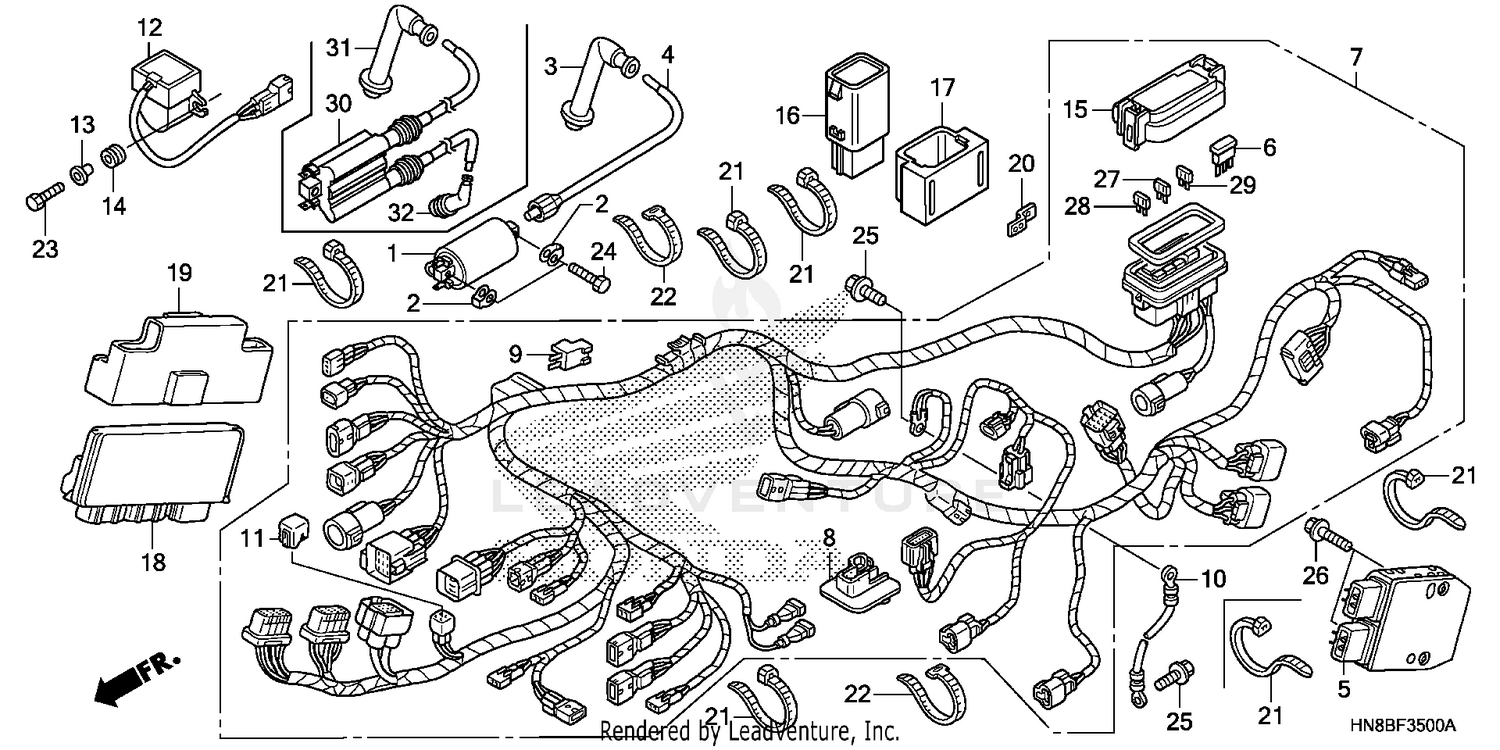

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, IGNITION
30500-MBG-003
|
$74.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER, IGNITION COIL
30520-ML7-000
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP ASSY.
30700-HN8-003
Superseded by 30700-HN8-004
|
$50.71 | ||
|
Unavailable |
|||
|
#4
WIRE ASSY., IGNITION
30731-HN8-A60
|
$19.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY., REGULATOR
31600-HP0-A01
|
$167.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRE HARNESS
32100-HN8-B40
|
$1,029.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, CONNECTOR
32107-HN8-A60
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONNECTOR, DIODE (2P) (3A)
32146-S84-003
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE, GROUND
32603-HN8-000
|
$35.39 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, DUMMY (4P) (RED)
32606-GEV-761
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR, BANK ANGLE
35161-HN8-A61
|
$136.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
35162-MN5-003
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
35163-MN5-003
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER SET, FUSE
38220-HN8-B40
|
$8.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
RELAY, WATERPROOF (15AX2)
38580-HP5-601
|
$56.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION, RELAY
38585-HN8-B41
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
PGM-FI UNIT
38770-HN8-B41
|
$1,237.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
CUSHION, PGM-FI UNIT
38771-HN8-A60
|
$37.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY A, CONNECTOR
50327-HN5-670
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, WIRE (165MM) (BLACK)
90651-KV6-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-WASHER (4X20)
93401-04020-08
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEX. (6X20)
92101-06020-4J
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#27
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#28
FUSE, MINI (15A)
98200-41500
|
$1.27 | ||
|
Unavailable |
|||
|
#29
FUSE, MINI (30A)
98200-43000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
