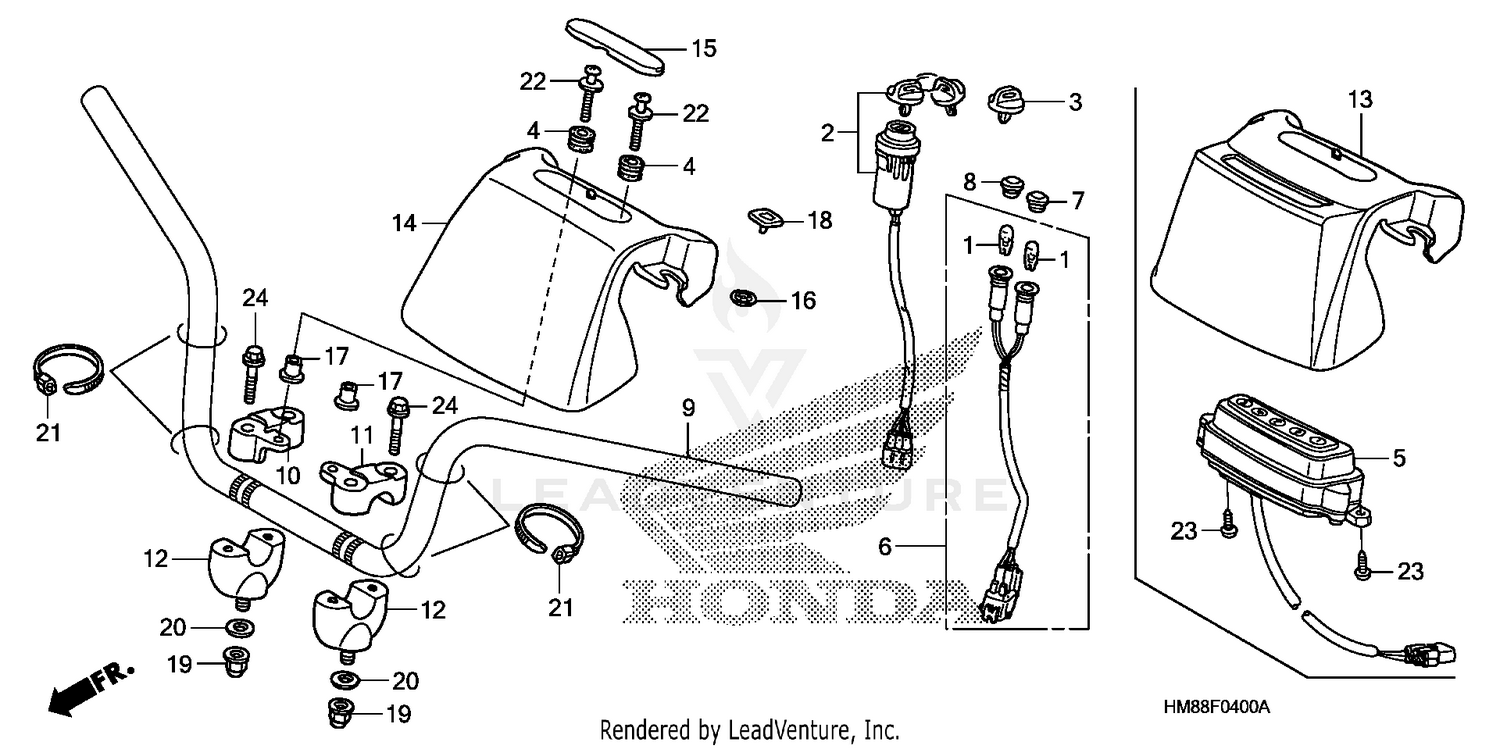

Handlebar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BULB, WEDGE BASE (12V 1.7W H.D) (NIPPON SEIKI)
34909-KW3-003
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH ASSY., IGNITION
35100-HM8-000
|
$68.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX)
35121-HF1-881
|
$11.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX)
35122-HF1-881
|
$11.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
RUBBER, MOUNTING
37215-HM5-670
|
$2.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOX, GEAR POSITION INDICATOR
37600-HM8-A51
|
$75.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
SOCKET ASSY., INDICATOR
37600-HN6-000
|
$65.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
LENS, OIL INDICATOR (RED)
37602-HM5-670
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
LENS, REVERSE INDICATOR (ORANGE)
37604-HM8-B60
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
LENS, NEUTRAL INDICATOR (GREEN)
37603-HM5-670
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
HANDLEBAR
53100-HM8-B60
|
$157.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, R. HANDLE (UPPER)
53111-HC3-000
|
$21.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, L. HANDLE (UPPER)
53121-HC3-000
|
$21.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, HANDLE (LOWER)
53130-HB3-770
|
$25.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, HANDLE *NH1* (BLACK)
53205-HM8-B10ZA
|
$49.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, HANDLE COVER *NH1* (BLACK)
53206-HM8-000ZA
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SPEED (4MM)
64206-MJ0-000
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, COVER SETTING
83601-357-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
EMBLEM, PRODUCT (UEHARA)
86150-HN8-004
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (10.3MM)
90521-427-770
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, WIRE HARNESS
90651-MA6-720
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-WASHER (6X20)
93894-06020-0H
|
$1.40 | ||
|
Unavailable |
|||
|
#22
SCREW-WASHER (6X20)
93894-06020-08
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, TAPPING (5X16)
93903-25310
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X35)
95701-08035-08
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
