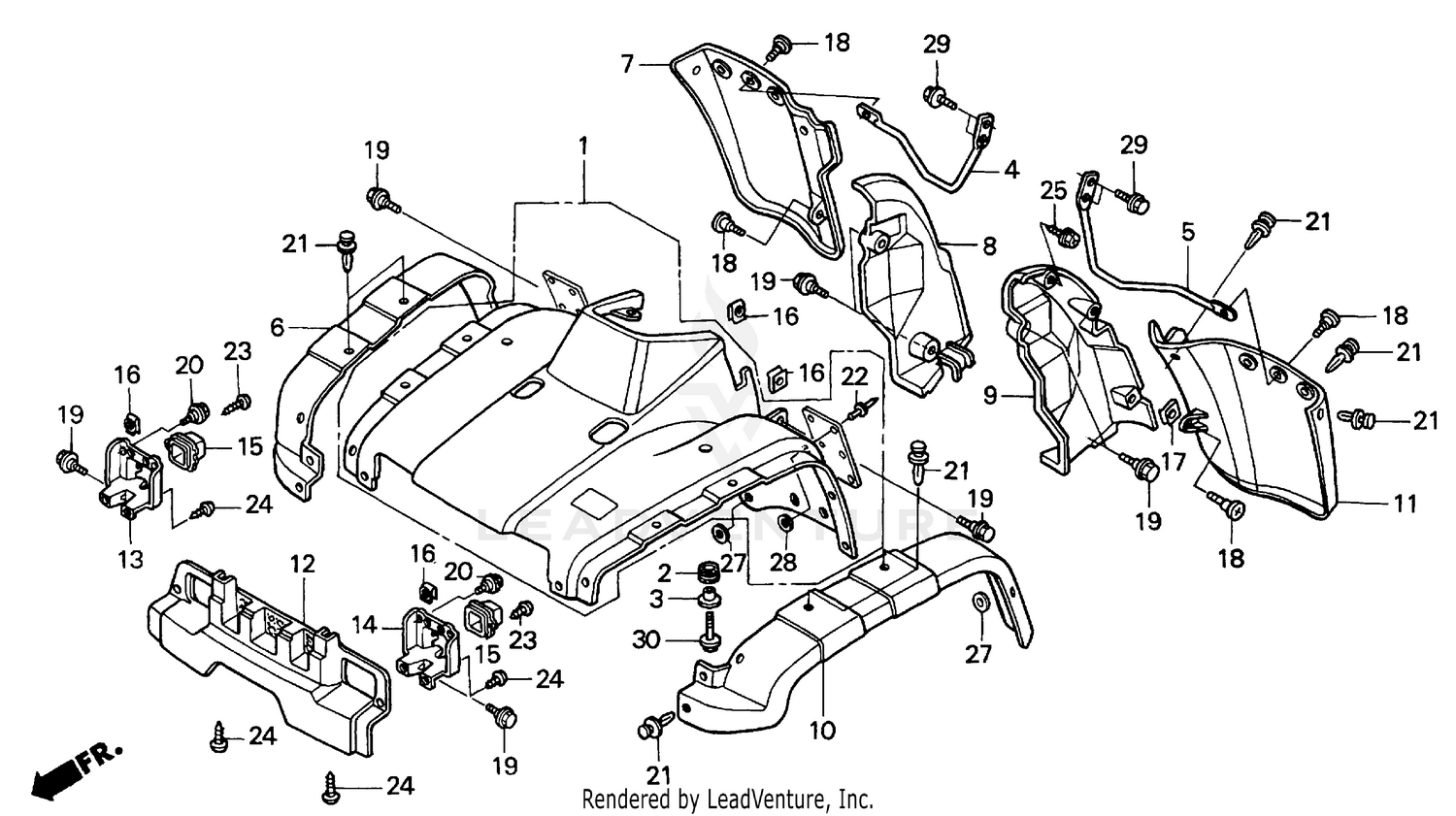

450s Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FR. *G152* (ADVENTURE GREEN)
61100-HM7-A00ZA
|
$234.62 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FR. *Y151R* (STARBURST YELLOW)
61100-HM7-A00ZF
|
$202.53 | ||
|
Unavailable |
|||
|
#1
FENDER, FR. *R232* (PATRIOT RED)
61100-HM7-A00ZC
|
$225.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, FR. FENDER MOUNTING
61103-HM5-850
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, FR. FENDER (WHITE)
61104-357-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, FR. FENDER (WHITE)
61104-428-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Unavailable |
|||
|
#4
STAY, R. FR. STEERING
61105-HM7-000
|
$72.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, L. FR. STEERING
61106-HM7-000
|
$72.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPLASH GUARD, R. FR. SIDE *NH1* (BLACK)
61861-HM7-000ZB
|
$30.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPLASH GUARD, R. FR. (LOWER) *NH1* (BLACK)
61862-HM7-000ZB
|
$31.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
FENDER, R. (INNER)
61863-HM7-A00
Superseded by 61863-HN0-670
|
$28.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
FENDER, R. (INNER)
61863-HN0-670
|
$28.56 | ||
|
Unavailable |
|||
|
#9
FENDER, L. (INNER)
61864-HM7-A00
Superseded by 61864-HN0-670
|
$28.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
FENDER, L. (INNER)
61864-HN0-670
|
$28.56 | ||
|
Unavailable |
|||
|
#10
SPLASH GUARD, L. FR. SIDE *NH1* (BLACK)
61866-HM7-000ZB
|
$30.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPLASH GUARD, L. FR. (LOWER) *NH1* (BLACK)
61867-HM7-000ZB
|
$31.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
GRILLE, FR. *NH1* (BLACK)
66300-HM7-000ZB
|
$38.10 | ||
|
Unavailable |
|||
|
#13
COVER, R. HEADLIGHT
66301-HM7-000
|
$20.74 | ||
|
Unavailable |
|||
|
#14
COVER, L. HEADLIGHT
66302-HM7-000
|
$21.80 | ||
|
Unavailable |
|||
|
#15
CAP, HEADLIGHT TAIL
66303-HM7-000
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FENDER SETTING
84601-HC4-000
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FENDER SETTING
84601-HM7-000
|
$13.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, SPECIAL (6X8)
90102-HM7-000
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6MM)
90111-162-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6MM)
90111-197-890
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
RIVET, POP (3.2)
90841-HF1-910
|
$0.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW, TAPPING (4X12)
93903-24320
|
$0.95 | ||
|
Unavailable |
|||
|
#24
SCREW, TAPPING (5X12)
93903-25220
|
$0.95 | ||
|
Unavailable |
|||
|
#25
SCREW, TAPPING (6X16)
93904-26210
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, PLAIN (3MM)
94103-03800
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
