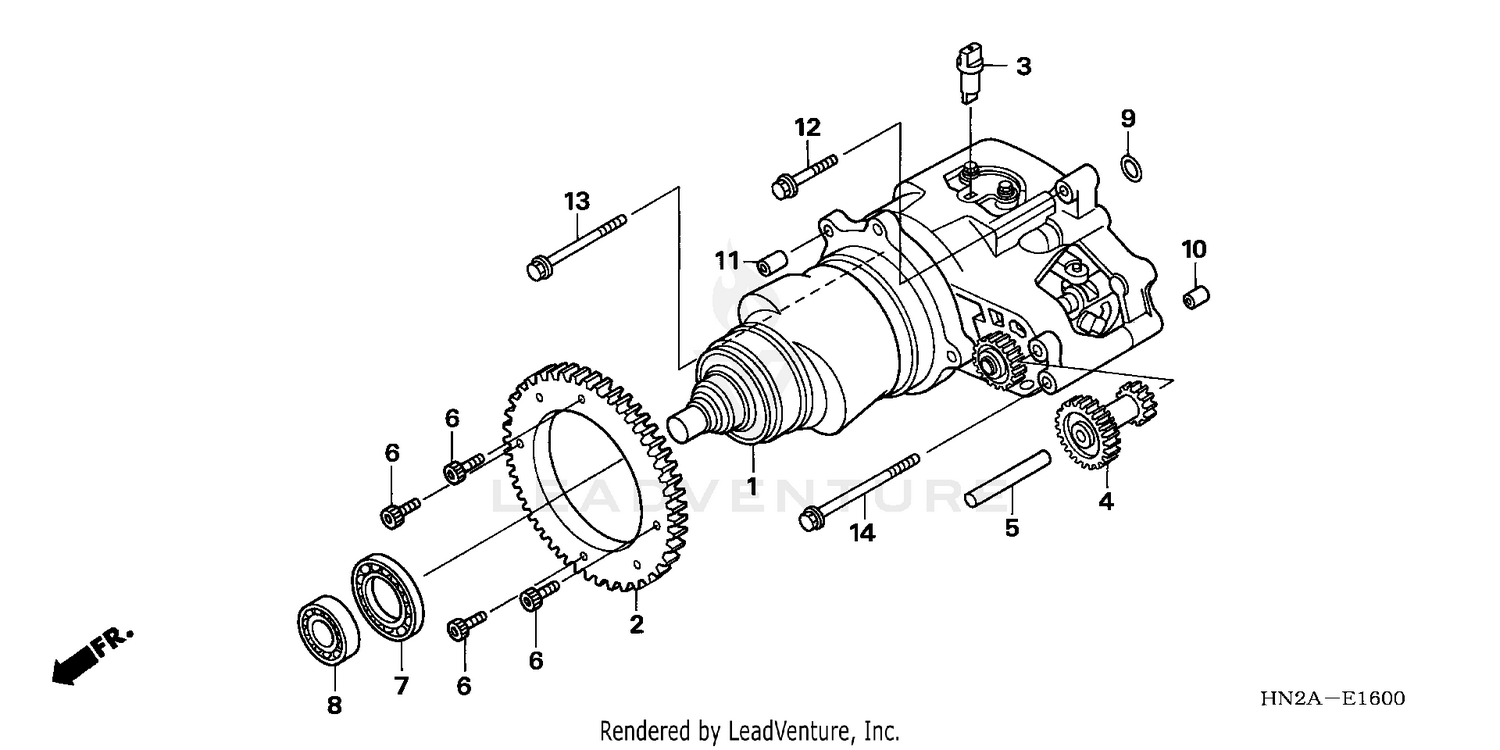

Hondamatic Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HONDAMATIC UNIT
26000-HN2-A00
|
$2,613.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PRIMARY DRIVEN (70T)
26221-HN2-000
|
$181.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, ANGLE SENSOR
27431-HN2-000
|
$14.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, MOTOR DRIVE (56T/17T)
27511-HN2-000
|
$64.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, MOTOR DRIVE
27526-HN2-000
|
$5.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, SOCKET (6MM)
90002-HN5-670
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, RADIAL BALL (6813) (NTN)
91007-HN2-004
|
$86.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, RADIAL BALL (22X52X13)
91014-HN2-003
|
$22.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (19.20X1.90) (NOK)
91301-P7X-003
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIN, DOWEL (7X12)
94303-07120
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X60)
95701-06060-00
|
$0.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X105)
95701-06105-00
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
