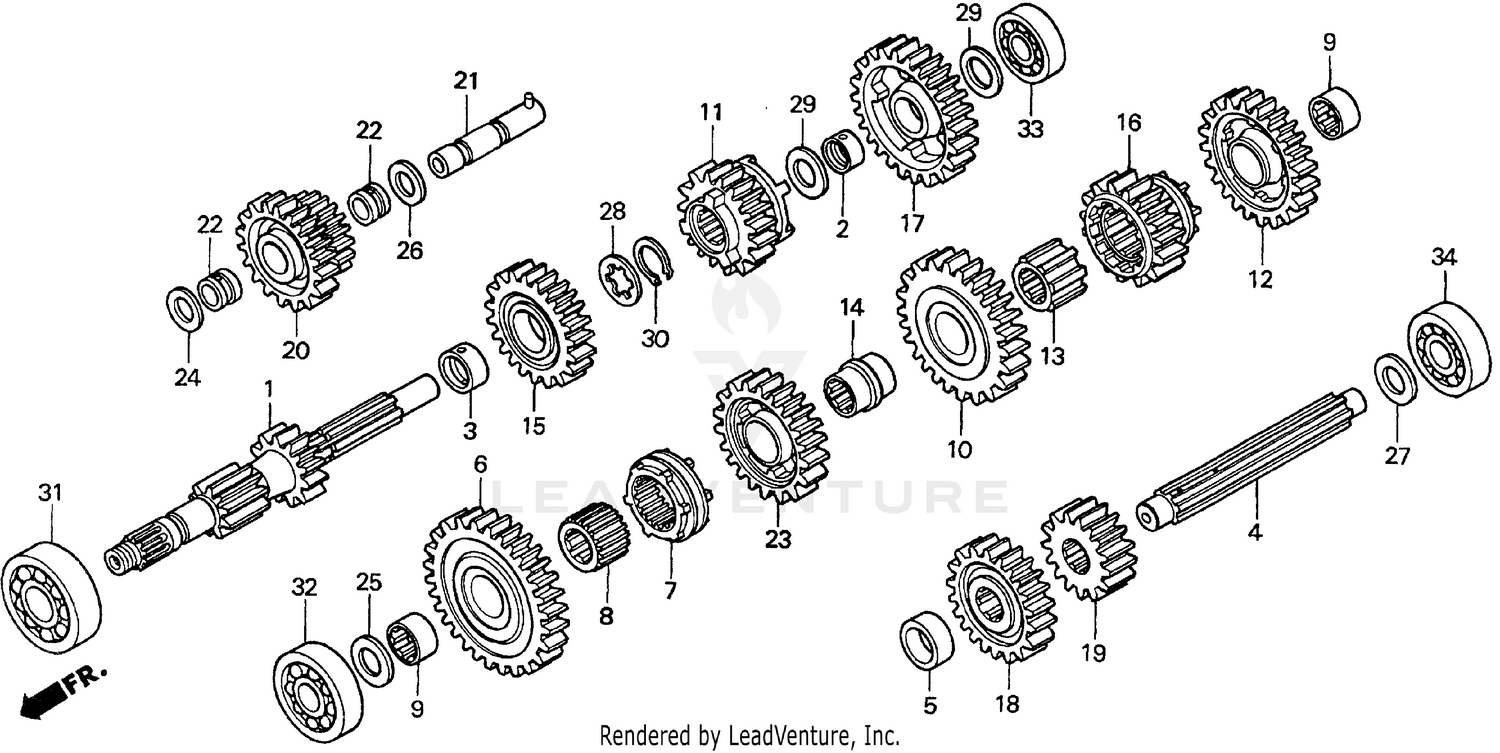

450es Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (12T/18T)
23211-HN0-A11
|
$128.46 | ||
|
Unavailable |
|||
|
#2
BUSH (17MM)
23212-HA0-000
|
$17.61 | ||
|
Unavailable |
|||
|
#3
BUSH A (22MM)
23214-HA0-000
|
$19.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
COUNTERSHAFT
23220-HM7-000
|
$124.48 | ||
|
Unavailable |
|||
|
#5
COLLAR, COUNTERSHAFT
23224-HC4-000
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT FIRST (49T)
23411-HN0-A10
|
$98.81 | ||
|
Unavailable |
|||
|
#7
SHIFTER, REVERSE COUNTERSHAFT LOW GEAR
23412-HN0-A10
|
$39.34 | ||
|
Unavailable |
|||
|
#8
COLLAR, SPLINE
23413-HA7-670
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, SPLINE (25MM)
23414-HA0-000
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTERSHAFT SECOND (43T)
23431-HN0-A10
|
$98.81 | ||
|
Unavailable |
|||
|
#11
GEAR, MAINSHAFT THIRD (23T)
23441-HN0-A10
|
$93.52 | ||
|
Unavailable |
|||
|
#12
GEAR, COUNTERSHAFT THIRD (37T)
23451-HN0-A10
|
$94.58 | ||
|
Unavailable |
|||
|
#13
COLLAR, COUNTERSHAFT FOURTH SPLINE
23453-HN0-A10
|
$29.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH A, SPLINE (25MM)
23454-HA0-000
|
$41.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, MAINSHAFT FOURTH (28T)
23461-HN0-A10
|
$86.22 | ||
|
Unavailable |
|||
|
#16
GEAR, COUNTERSHAFT FOURTH (33T)
23471-HN0-A10
|
$101.89 | ||
|
Unavailable |
|||
|
#17
GEAR, MAINSHAFT FIFTH (33T)
23481-HN0-A10
|
$90.37 | ||
|
Unavailable |
|||
|
#18
GEAR, COUNTERSHAFT FIFTH (28T)
23491-HC4-000
|
$74.33 | ||
|
Unavailable |
|||
|
#19
GEAR, FINAL DRIVE (20T)
23621-HM7-000
|
$60.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, REVERSE IDLE
23720-HM7-000
|
$202.57 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHAFT, REVERSE IDLE
23730-HC4-000
|
$29.59 | ||
|
Unavailable |
|||
|
#22
BUSH, REVERSE IDLE GEAR
23732-HA0-000
|
$29.51 | ||
|
Unavailable |
|||
|
#23
GEAR, COUNTERSHAFT REVERSE (27T)
23751-HN0-A10
|
$88.28 | ||
|
Unavailable |
|||
|
#24
WASHER, THRUST (14MM)
90402-HA0-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, THRUST (20MM)
90403-HA7-670
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLAIN (14MM)
90412-HA0-000
|
$10.67 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPECIAL (20MM)
90451-HM7-000
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPLINE (22MM)
90451-KY1-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, THRUST (17MM)
90452-HC4-000
Superseded by 90452-178-000
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, THRUST (17MM)
90452-178-000
|
$5.24 | ||
|
Unavailable |
|||
|
#30
CIRCLIP (22MM)
90601-329-000
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, BALL (62/22) (NACHI)
91002-PL0-008
Superseded by 91002-PL0-018
|
$38.13 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, BALL (62/22) (NACHI)
91002-PL0-018
|
$38.13 | ||
|
Unavailable |
|||
|
#31
BEARING, BALL (62/22) (NACHI)
91005-657-008
Superseded by 91002-PL0-018
|
$38.13 | ||
|
Unavailable |
|||
|
#32
BEARING, RADIAL BALL (6204)
96100-62040-00
|
$14.82 | ||
|
Unavailable |
|||
|
#33
BEARING, RADIAL BALL (6203U)
96140-62030-00
|
$22.52 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, RADIAL BALL (6204U)
96140-62040-00
|
$29.85 | ||
|
Available to order. Add to View Price |
|||
