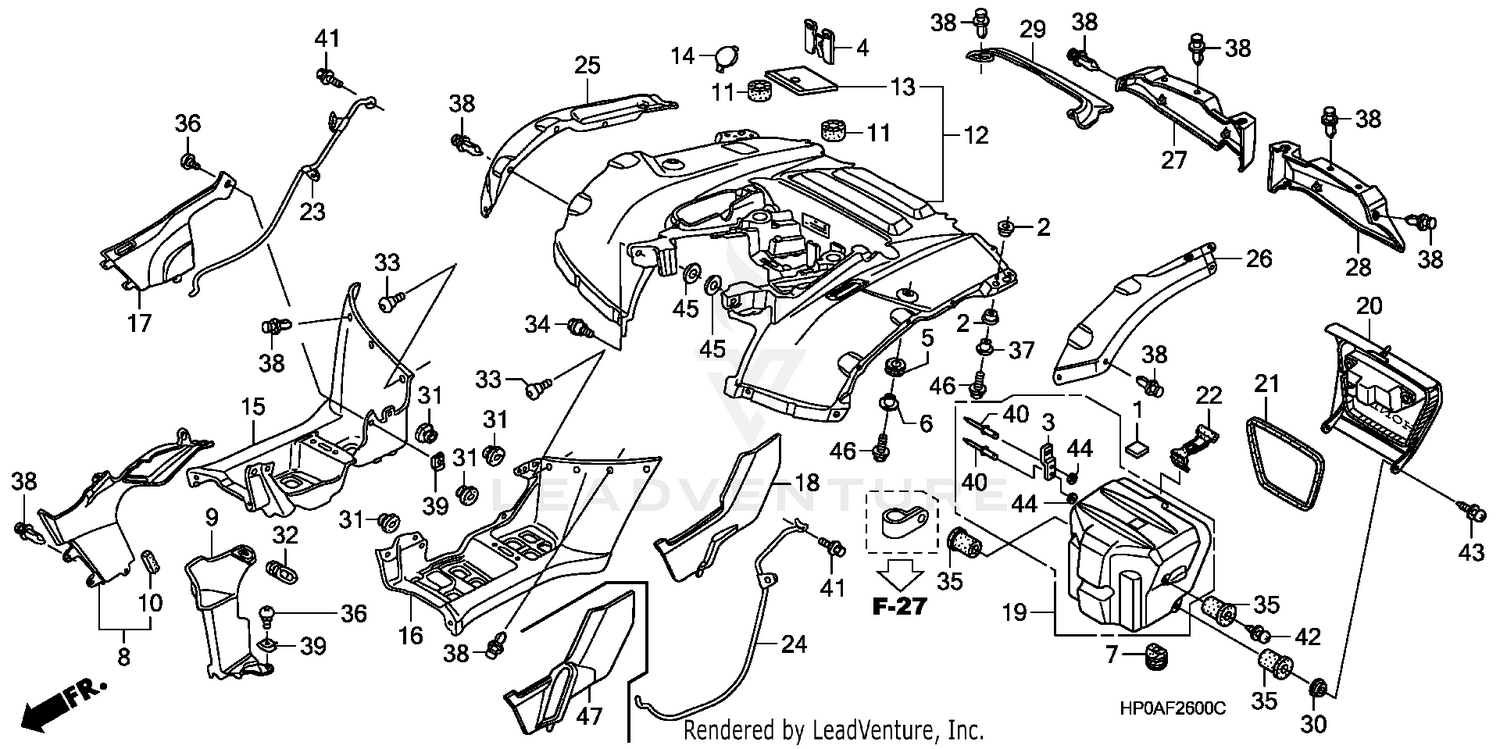

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, AIR CLEANER HOUSING
17209-GAJ-900
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, TAILLIGHT SETTING
33718-GE2-690
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY A, CONNECTOR
50327-HN5-670
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, FUSE CONNECTOR
50328-HN2-000
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, FR. FENDER MOUNTING
61103-HM5-850
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, FR. FENDER (WHITE)
61104-357-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, FR. FENDER (WHITE)
61104-428-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Unavailable |
|||
|
#7
PLUG, FR. FENDER
61105-KA8-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, R. ENGINE AIR *NH1* (BLACK)
61880-HP0-A00ZA
|
$28.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, L. FR. ENGINE AIR *NH1* (BLACK)
61895-HP0-A00ZA
|
$216.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL C, HEADLIGHT
64236-MR8-610
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION, SEAT MOUNTING
77207-HA0-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
FENDER, RR. *YRA02L* (NATURAL CAMO)
80100-HP0-E40ZA
|
$550.55 | ||
|
Unavailable |
|||
|
#13
RUBBER, BATTERY MOUNTING
80102-HP0-A00
|
$9.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
LID, R. RR. FENDER *YRA02L* (NATURAL CAMO)
80110-HP0-A80ZA
|
$28.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPLASH GUARD, R. CENTER *NH1* (BLACK)
80121-HP0-A00ZA
|
$134.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPLASH GUARD, L. CENTER *NH1* (BLACK)
80122-HP0-A00ZA
|
$150.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
SUB-COVER, R. ENGINE *NH1* (BLACK)
80123-HP0-A00ZA
|
$116.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOX, UTILITY
80210-HP0-A50
|
$93.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
LID, TOOL BOX *NH1* (BLACK)
80211-HP0-A50ZA
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, UTILITY BOX
80212-HP0-A50
|
$14.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, TOOL BOX
80214-HM5-850
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY, R. RR. FENDER
80217-HP0-A00
|
$153.09 | ||
|
Available to order. Add to View Price |
|||
|
#24
STAY, L. RR. FENDER
80218-HP0-A00
|
$150.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPLASH GUARD, R. RR. SIDE *NH1* (BLACK)
80220-HP0-A00ZA
|
$50.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPLASH GUARD, L. RR. SIDE *NH1* (BLACK)
80221-HP0-A00ZA
|
$50.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPLASH GUARD, R. RR. *NH1* (BLACK)
80250-HP0-A50ZA
|
$70.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPLASH GUARD, L. RR. *NH1* (BLACK)
80251-HP0-A50ZA
|
$50.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
LID, RR. FENDER *YRA02L* (NATURAL CAMO)
80311-HP0-A80ZA
|
$84.68 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR, LOCK SETTING
83119-MG9-000
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#31
GROMMET, AIR CLEANER HOUSING
83551-GE2-000
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#32
GROMMET A, SIDE COVER
83601-MB0-000
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SCREW, SPECIAL (6X8)
90102-HN5-670
|
$1.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BOLT, FLANGE (6MM)
90111-HP0-A00
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
NUT, COWL SETTING (5MM)
90111-KW3-003
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
SCREW, VISOR SPECIAL SETTING
90115-KW7-900
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
|
#37
COLLAR (6.3X13.5)
90503-KE1-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
NUT, CLIP (5MM)
90677-KAN-961
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#40
RIVET, POP (3.2X12.7)
90841-HN2-000
|
$0.13 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT-WASHER (6X16)
93404-06016-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW-WASHER (5X16)
93891-05016-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW-WASHER (5X20)
93894-05020-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, PLAIN (3MM)
94101-03800
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, PLAIN (8MM)
94103-08800
|
$0.98 | ||
|
Unavailable |
|||
|
#46
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#47
SUB-COVER, L. ENGINE *NH1* (BLACK)
80124-HP0-A00ZA
|
$91.73 | ||
|
Available to order. Add to View Price |
|||
