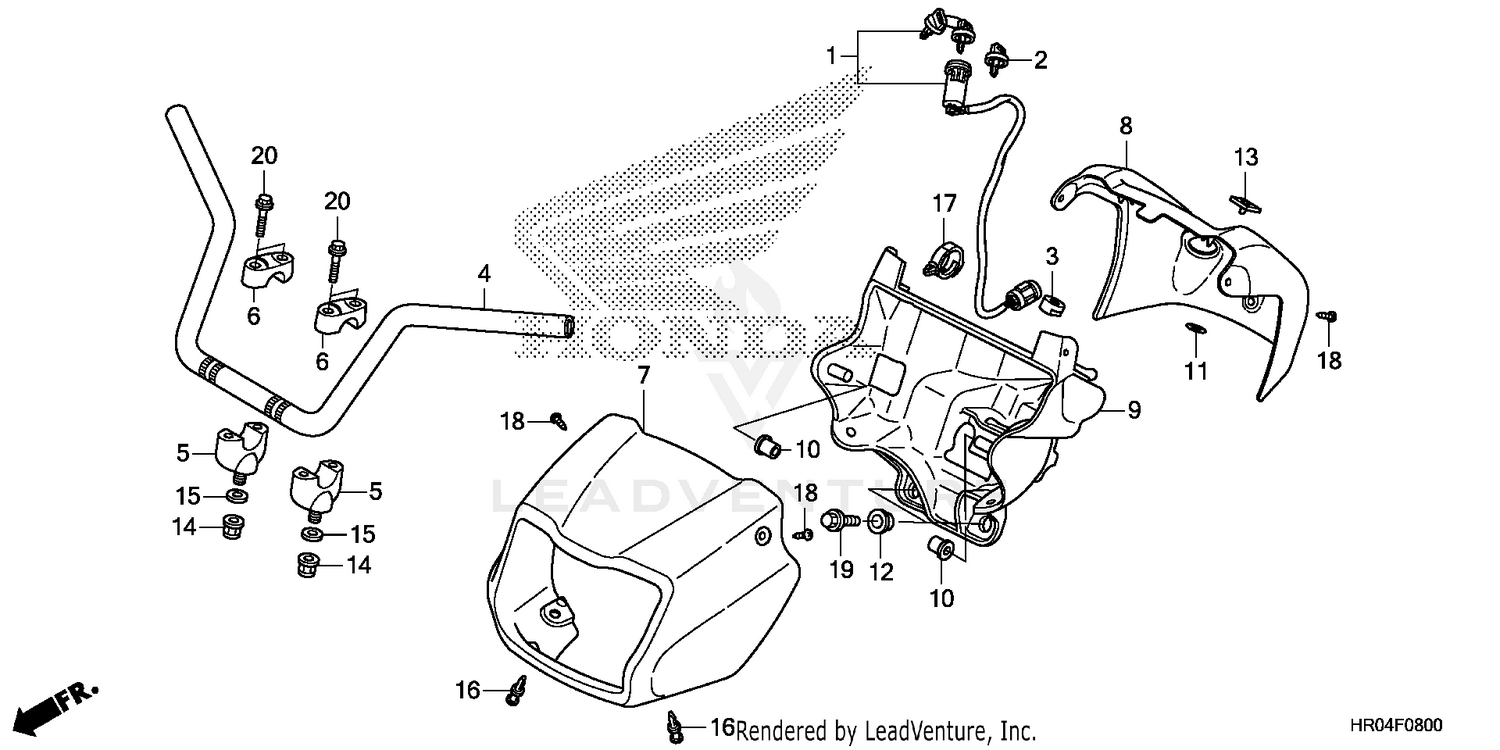

Handlebar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., IGNITION
35100-HP0-A71
|
$53.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) KEY, BLANK (TYPE2)
35121-HF1-881
|
$11.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX)
35122-HF1-881
|
$11.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
RUBBER B, BATTERY BOX
50329-425-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
HANDLEBAR
53100-HR0-F00
|
$133.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, HANDLE (LOWER)
53130-HB3-770
|
$25.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, HANDLE (UPPER)
53131-HB6-000
|
$25.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, ASSIST HEADLIGHT *YRA02L* (NATURAL CAMO)
53205-HR0-F40ZA
|
$217.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, METER *NH1* (BLACK)
53206-HR0-F00ZA
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, METER COVER
53207-HR0-F00
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT, ASSIST HEADLIGHT
53212-HP0-A00
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SPEED (4MM)
64206-MJ0-000
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, TOOL BOX SETTING
83505-KM4-000
|
$6.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
EMBLEM, PRODUCT (UEHARA)
86150-HN8-004
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (10.3MM)
90521-427-770
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLIP, WIRE HARNESS *NH1L* (BLACK)
91558-SD5-003
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, TAPPING (5X16) (PO)
93913-25480
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X20)
95701-08020-07
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X35)
95701-08035-08
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
