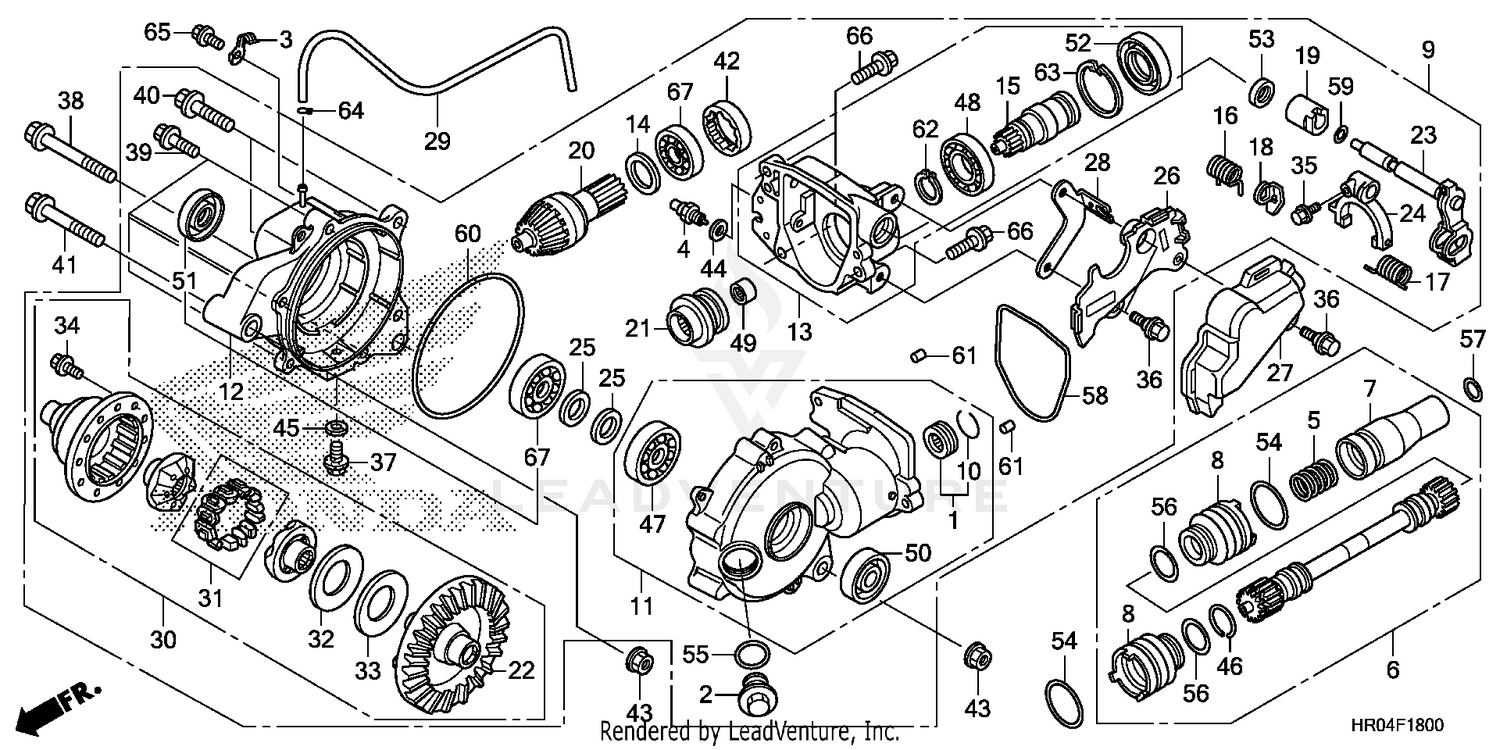

Front Final Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING SET, NEEDLE
06910-HN8-000
|
$33.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#2
CAP, VALVE ADJ.
12361-371-980
Superseded by 12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#3
CLIP, ALTERNATOR WIRE
32921-HN5-670
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., NEUTRAL
35600-HN7-003
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, SHAFT
40215-HM7-000
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT ASSY., FR. PROPELLER
40400-HR0-F00
|
$97.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT, FR. PROPELLER SHAFT
40402-HP5-600
|
$42.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, PROPELLER SHAFT COVER
40420-HP5-600
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR ASSY., FR. FINAL
41400-HR0-F00
|
$1,140.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING, STOPPER
41405-HA7-670
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE SUB-ASSY., FR. GEAR
41411-HR0-F00
|
$180.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER SUB-ASSY., FR. GEAR CASE
41412-HR0-F00
|
$127.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE SUB-ASSY., FR. CLUTCH
41413-HP5-601
|
$209.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM A, PINION GEAR (1.64)
41447-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM B, PINION GEAR (1.70)
41448-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM C, PINION GEAR (1.76)
41449-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM D, PINION GEAR (1.82)
41451-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM E, PINION GEAR (1.88)
41452-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM F, PINION GEAR (1.94)
41453-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM G, PINION GEAR (2.00)
41454-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM H, PINION GEAR (2.06)
41455-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM I, PINION GEAR (2.12)
41456-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM J, PINION GEAR (2.18)
41457-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM K, PINION GEAR (2.24)
41458-HN0-670
|
|||
|
Unavailable |
|||
|
#14
SHIM L, PINION GEAR (2.30)
41459-HN0-670
|
|||
|
Unavailable |
|||
|
#14
SHIM M, PINION GEAR (2.36)
41461-HN0-670
|
|||
|
Unavailable |
|||
|
#14
SHIM N, PINION GEAR (2.42)
41462-HN0-670
|
$4.58 | ||
|
Unavailable |
|||
|
#14
SHIM O, PINION GEAR (2.48)
41463-HN0-670
|
|||
|
Unavailable |
|||
|
#15
JOINT, FR. FINAL CLUTCH
41502-HL1-A01
|
$110.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, FR. FINAL CLUTCH
41503-HP5-600
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, FR. FINAL CLUTCH LOCK
41504-HP5-600
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
STOPPER, FR. FINAL CLUTCH
41505-HP5-600
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR, FR. FINAL CLUTCH
41506-HP5-600
|
$32.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, FR. PINION (13T)
41521-HR0-F00
|
$238.13 | ||
|
Available to order. Add to View Price |
|||
|
#21
SLEEVE, FR. FINAL CLUTCH
41527-HR0-F00
|
$47.36 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, FR. RING (42T)
41531-HR0-F00
|
$134.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHAFT, FR. FINAL CLUTCH
41540-HP5-600
|
$66.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
FORK, FR. FINAL CLUTCH
41550-HP5-600
|
$88.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM A, RING GEAR (0.50)
41631-HR0-F00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM B, RING GEAR (0.55)
41632-HR0-F00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM C, RING GEAR (0.60)
41633-HR0-F00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM D, RING GEAR (0.65)
41634-HR0-F00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM E, RING GEAR (0.70)
41635-HR0-F00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM F, RING GEAR (0.75)
41636-HR0-F00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM G, RING GEAR (0.80)
41637-HR0-F00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM H, RING GEAR (0.85)
41638-HR0-F00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM I, RING GEAR (0.90)
41639-HR0-F00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM J, RING GEAR (0.95)
41640-HR0-F00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM K, RING GEAR (1.00)
41641-HR0-F00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM L, RING GEAR (1.05)
41642-HR0-F00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM M, RING GEAR (1.10)
41643-HR0-F00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM N, RING GEAR (1.15)
41644-HR0-F00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM O, RING GEAR (1.20)
41645-HR0-F00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM P, RING GEAR (1.25)
41646-HR0-F00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM Q, RING GEAR (1.30)
41647-HR0-F00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM R, RING GEAR (1.35)
41648-HR0-F00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM S, RING GEAR (1.40)
41649-HR0-F00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM T, RING GEAR (1.45)
41650-HR0-F00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM U, RING GEAR (1.50)
41651-HR0-F00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM V, RING GEAR (1.55)
41652-HR0-F00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHIM W, RING GEAR (1.60)
41653-HR0-F00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#26
CASE, CLUTCH ARM
41711-HP5-600
|
$10.56 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, CLUTCH ARM
41712-HP5-600
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#28
STAY, CLUTCH CABLE
41715-HP5-600
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#29
TUBE, BREATHER (3.5X1225)
41811-HR0-F00
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#30
DIFFERENTIAL ASSY.
42400-HR0-F01
|
$601.96 | ||
|
Available to order. Add to View Price |
|||
|
#31
FOLLOWER SET, CAM
42440-HN5-671
|
$65.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHIM A (1.3)
42451-HN7-003
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHIM B (1.4)
42452-HN7-003
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHIM C (1.5)
42453-HN7-003
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHIM D (1.6)
42454-HN7-003
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHIM E (1.7)
42455-HN7-003
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHIM F (1.8)
42456-HN7-003
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHIM G (1.9)
42457-HN7-003
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPRING, DIFFERENTIAL SIDE CONED
42461-HN5-671
|
$19.29 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT (8X17)
90101-HN8-000
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, SPECIAL (6MM)
90101-HP5-600
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FR. FENDER FIXING
90106-MM9-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, SEALING (8MM)
90109-371-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (10X100)
90130-KPM-000
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (8X27)
90133-HP5-600
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (10X35)
90134-HP5-600
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (10X66)
90182-MB2-003
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, LOCK (60MM)
90244-HA0-000
|
$43.25 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, NEUTRAL SWITCH
90443-KR0-000
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
CLIP, NEEDLE THRUST BEARING (12MM)
91012-KF0-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#47
BEARING, RADIAL BALL (30X56X13) (JTEKT)
91052-HR0-F01
|
$27.09 | ||
|
Available to order. Add to View Price |
|||
|
#48
BEARING, RADIAL BALL (32X58X13)
91055-HP5-601
|
$16.85 | ||
|
Available to order. Add to View Price |
|||
|
#49
BEARING, NEEDLE (12X18X12)
91056-HP5-601
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#50
OIL SEAL (22X48X7) (ARAI)
91252-HC5-003
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#51
OIL SEAL (22X48X7) (ARAI)
91252-HC5-003
|
$11.36 | ||
|
Unavailable |
|||
|
#52
OIL SEAL (42X58X12)
91252-HP5-602
|
$28.00 | ||
|
Available to order. Add to View Price |
|||
|
#53
DUST SEAL (22X28X5)
91254-KS7-831
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
BAND, BOOT (D27)
91302-HM7-A00
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#55
O-RING (30.8MM) (Honda Code 0001065)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
BAND, BOOT (D20)
91303-HM7-A00
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#57
O-RING (18.5X2.4) (ARAI)
91311-MB0-003
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#58
GASKET, FR. FINAL CLUTCH COVER
91351-HP5-601
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#59
O-RING (8.5X1.5) (L. SIDE ONLY)
91352-GAZ-930
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#60
O-RING (132X2)
91352-HR0-F01
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#61
PIN A, DOWEL (6X10) (YAMADA)
94301-06100
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#62
CIRCLIP (OUTER) (32MM)
94510-32000
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#63
CIRCLIP (INNER) (58MM)
94520-58000
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#64
CLIP, TUBE (C6.5)
95002-35000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#65
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
BOLT, FLANGE (8X25)
95701-08025-00
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#67
BEARING, RADIAL BALL (6006)
96100-60063-00
|
$18.20 | ||
|
Available to order. Add to View Price |
|||
