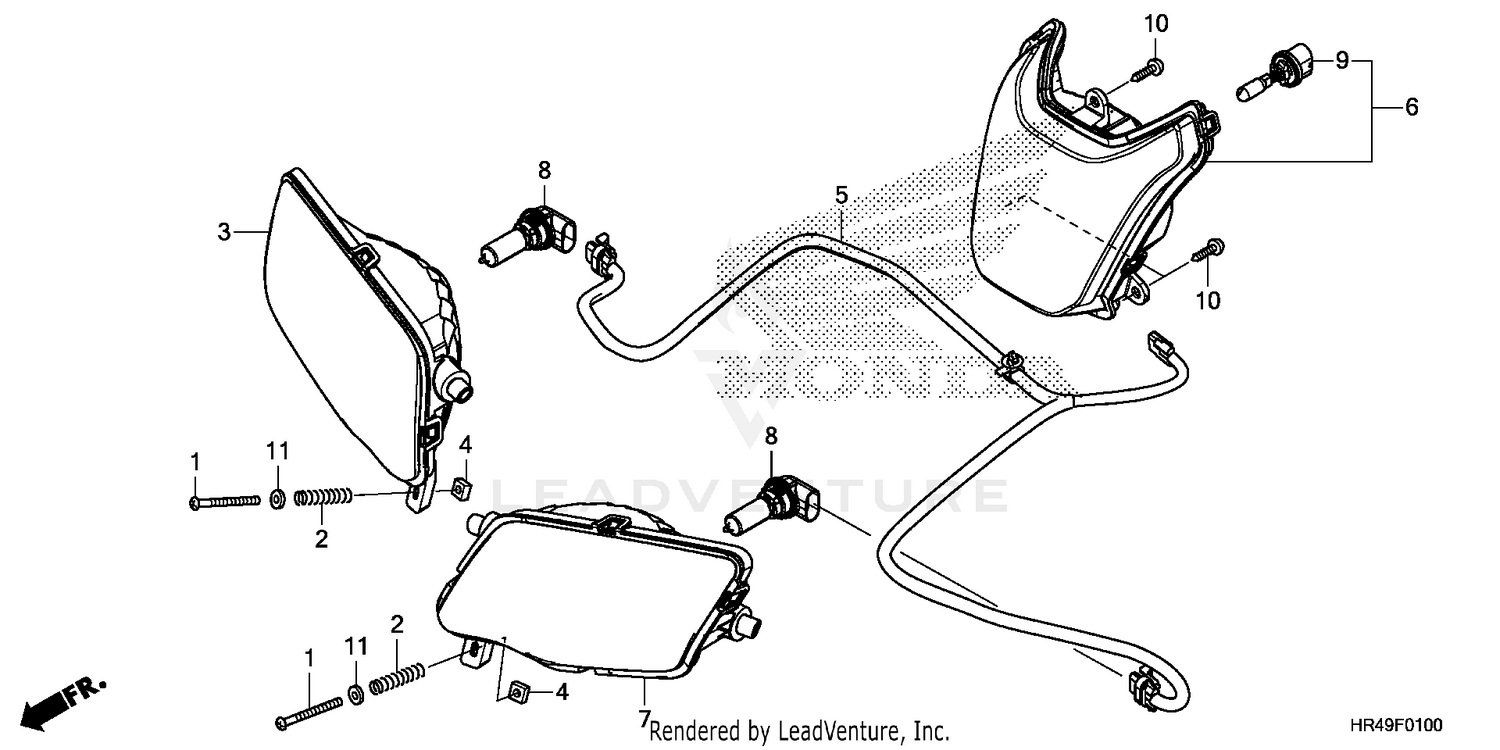

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW, PAN (4X55)
33103-KSC-670
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, BEAM ADJUSTING
33107-KAE-771
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
HEADLIGHT UNIT, R.
33110-HR3-A20
|
$50.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, BEAM ADJUSTING
33117-KBR-730
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
SUB-HARNESS, HEADLIGHT
33130-HR6-B00
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
HEADLIGHT ASSY., ASSIST (12V 50W)
33150-HR6-A61
|
$70.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
HEADLIGHT UNIT, L.
33160-HR3-A20
|
$50.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB, HEADLIGHT (12V 35/35W)
34901-HR3-A21
|
$25.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB, HEADLIGHT (12V 50W)
34901-HR6-A60
|
$25.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TAPPING (5X14) (PO)
93913-25380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN (4MM)
94103-04000
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
