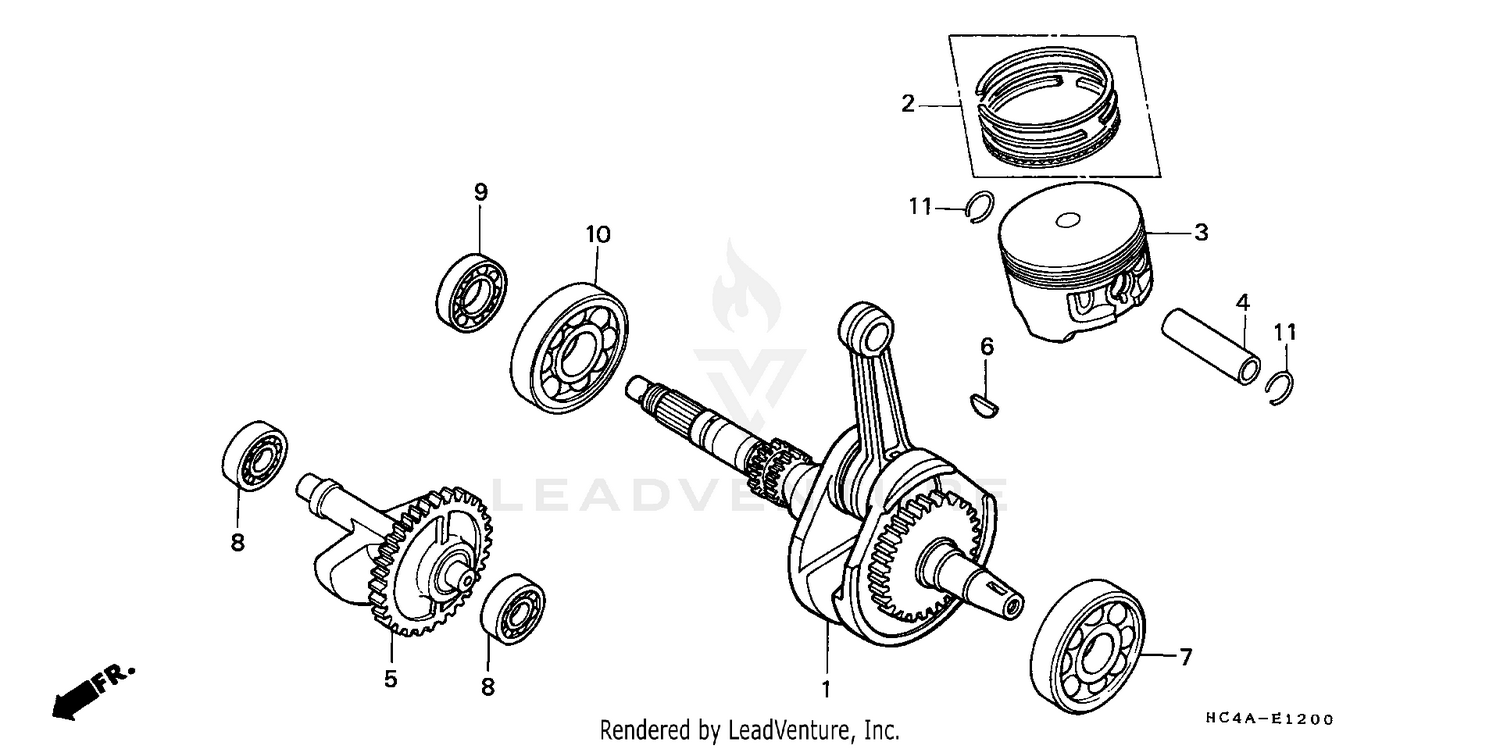

Crankshaft + Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT (NOT AVAILABLE)
13000-HC4-000
|
$661.22 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (STD) (TEIKOKU)
13011-HC4-306
|
$69.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (0.25)
13021-HC4-306
|
$47.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (0.50)
13031-HC4-306
|
$58.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (0.75)
13041-HC4-306
|
$44.30 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (1.00)
13051-HC4-306
|
$46.53 | ||
|
Unavailable |
|||
|
#3
PISTON (STD) (NOT AVAILABLE)
13101-HC4-000
|
$81.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON (0.25)
13102-HC4-305
|
$81.56 | ||
|
Unavailable |
|||
|
#3
PISTON (0.50)
13103-HC4-305
|
$81.56 | ||
|
Unavailable |
|||
|
#3
PISTON (0.75) (NOT AVAILABLE)
13104-HC4-305
|
$81.56 | ||
|
Unavailable |
|||
|
#3
PISTON (1.00) (NOT AVAILABLE)
13105-HC4-305
|
$81.56 | ||
|
Unavailable |
|||
|
#4
PIN, PISTON
13111-HC0-000
|
$33.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, BALANCER (34T)
13420-HC4-000
|
$204.63 | ||
|
Unavailable |
|||
|
#6
KEY, WOODRUFF (25X14X4)
90701-HB6-010
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, RADIAL BALL
91001-KE5-018
|
$69.08 | ||
|
Unavailable |
|||
|
#8
BEARING, RADIAL BALL RSH (6203)
91003-HA7-672
|
$32.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, RADIAL BALL (6303SP)
91009-HA0-004
|
$47.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING, RADIAL BALL (40X76X17.5) (KOYO)
91010-HC4-004
|
$72.45 | ||
|
Unavailable |
|||
|
#11
CLIP, PISTON PIN (17MM)
94601-17000
|
$1.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
