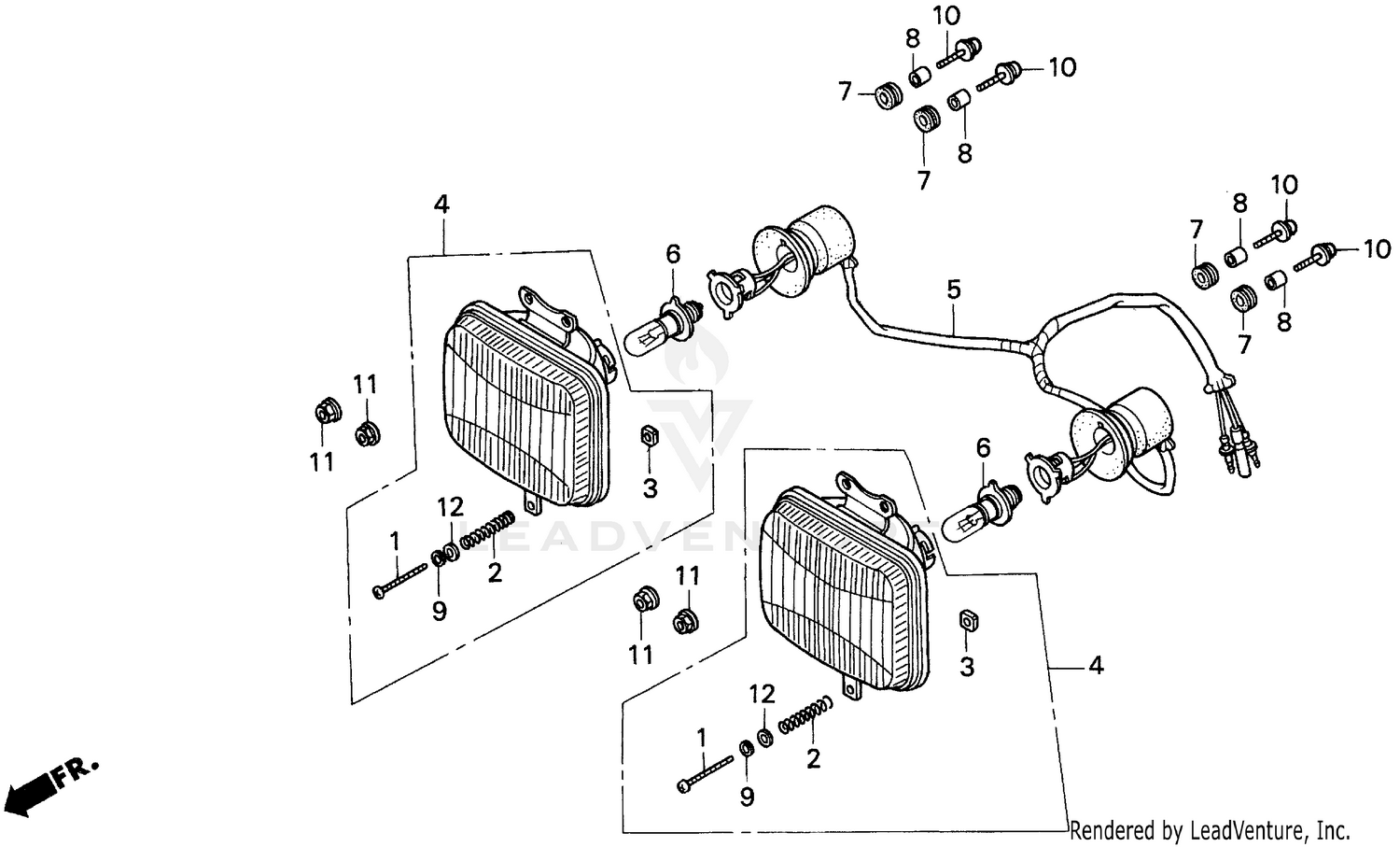

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW, BEAM ADJUSTING
33103-KF0-670
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, HEADLIGHT BEAM ADJUSTING
33107-246-003
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, BEAM ADJUSTING (STANLEY)
33117-KA2-003
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
HEADLIGHT UNIT
33120-HF1-670
|
$88.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
SOCKET, HEADLIGHT (NOT AVAILABLE)
33130-HF1-770
Superseded by 33130-HF1-880
|
$46.93 | ||
|
Unavailable |
|||
|
#6
BULB (12V25/25W) (STANLEY)
34901-066-003
Superseded by 34901-706-000
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB (12V25/25W) (STANLEY)
34901-706-000
|
$6.38 | ||
|
Unavailable |
|||
|
#7
GROMMET, SIDE COVER
50142-437-970
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, HEADLIGHT MOUNTING (NOT AVAILABLE)
61105-HC4-000
|
$2.88 | ||
|
Unavailable |
|||
|
#9
WASHER, BEAM ADJUSTING
90286-147-670
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-WASHER (4X18)
93894-04018-08
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE (4MM)
94050-04080
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN (3MM)
94103-03800
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
