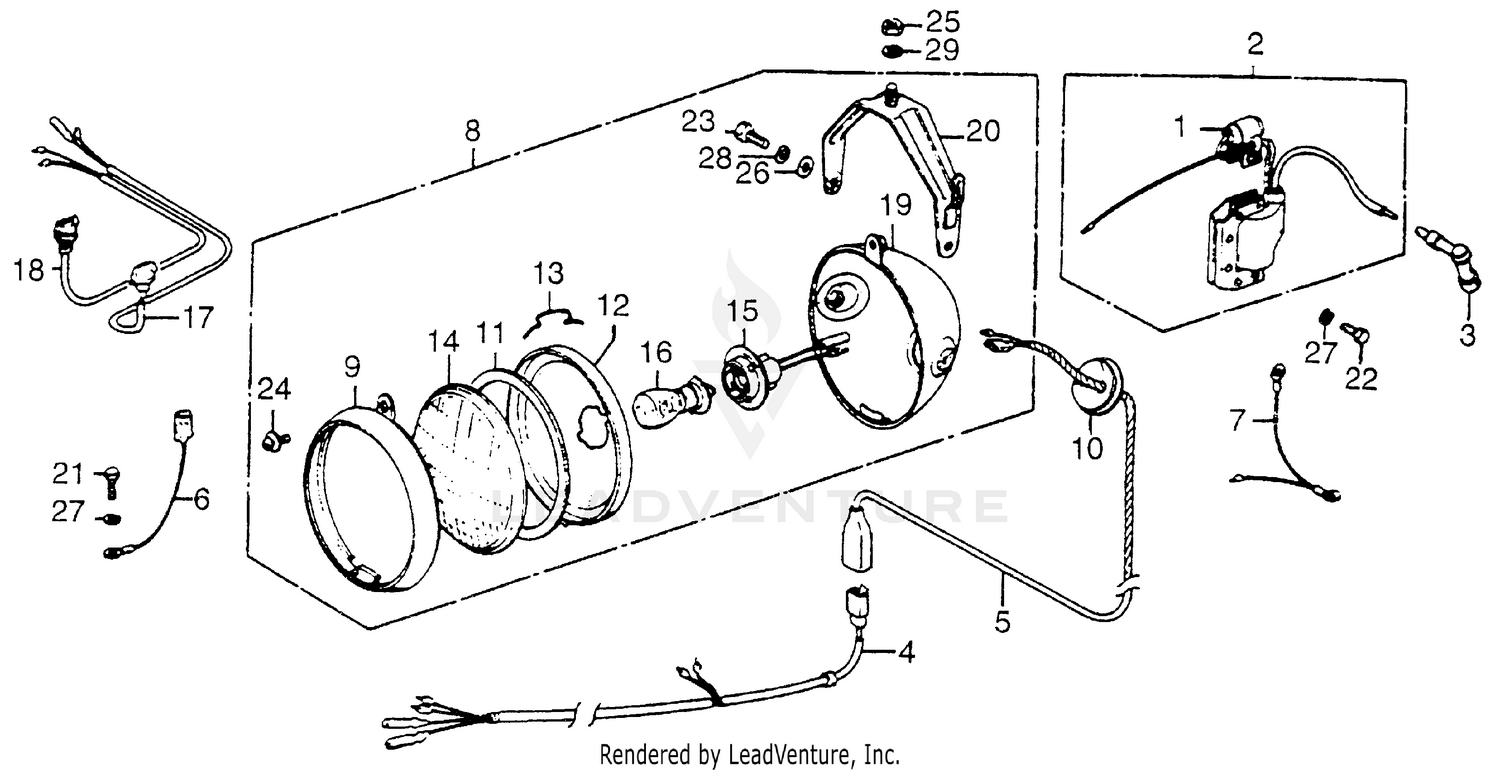

Wire Harness + Headlight + Switch + Ignition Coil 80 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CONDENSER ASSY. (TOYO)
30250-052-156
|
$17.71 | ||
|
Unavailable |
|||
|
#2
COIL, IGNITION
30500-950-013
Superseded by 30500-950-405
|
$143.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
COIL, IGNITION
30500-950-405
|
$143.02 | ||
|
Unavailable |
|||
|
#3
CAP ASSY., NOISE SUPPRESSOR
30700-098-153
Superseded by 30700-KE2-942
|
$21.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP ASSY., NOISE SUPPRESSOR
30700-098-163
Superseded by 30700-KE2-942
|
$21.65 | ||
|
Unavailable |
|||
|
#4
WIRE HARNESS (NOT AVAILABLE)
32100-950-010
|
$41.04 | ||
|
Unavailable |
|||
|
#5
SUB-CABLE, HEADLIGHT (NOT AVAILABLE)
32102-950-000
|
$18.56 | ||
|
Unavailable |
|||
|
#6
WIRE, GROUND (NOT AVAILABLE)
32106-950-000
|
$4.65 | ||
|
Unavailable |
|||
|
#7
WIRE, ENGINE GROUND (NOT AVAILABLE)
32610-950-010
|
$7.03 | ||
|
Unavailable |
|||
|
#8
HEADLIGHT ASSY.
33100-950-023
|
$98.77 | ||
|
Unavailable |
|||
|
#9
RIM, HEADLIGHT (NOT AVAILABLE)
33101-950-000
|
$14.80 | ||
|
Unavailable |
|||
|
#10
GROMMET, HEADLIGHT CASE (NOT AVAILABLE)
33104-950-000
|
$5.45 | ||
|
Unavailable |
|||
|
#11
GASKET, HEADLIGHT LENS (NOT AVAILABLE)
33105-070-000
|
$1.97 | ||
|
Unavailable |
|||
|
#12
REFLECTOR, HEADLIGHT (NOT AVAILABLE)
33106-950-003
|
$27.30 | ||
|
Unavailable |
|||
|
#13
SPRING, UNIT HOLDER (STANLEY)
33108-229-003
|
$2.65 | ||
|
Unavailable |
|||
|
#14
LENS, HEADLIGHT (STANLEY)
33121-229-003
|
$21.00 | ||
|
Unavailable |
|||
|
#15
SOCKET, HEADLIGHT (NOT AVAILABLE)
33130-950-013
|
$14.85 | ||
|
Unavailable |
|||
|
#16
BULB, HEADLIGHT (12V45/45W) (STANLEY)
34901-HB6-003
Superseded by 34901-HC3-003
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULB, HEADLIGHT (12V45/45W) (STANLEY) BULB (12V45/45W)
34901-HC3-003
|
$12.82 | ||
|
Unavailable |
|||
|
#16
BULB, HEADLIGHT (12V45/45W) (STANLEY)
34901-323-750
Superseded by 34901-HC3-003
|
$12.82 | ||
|
Unavailable |
|||
|
#17
SWITCH ASSY., HEADLIGHT (NOT AVAILABLE)
35200-950-003
|
$10.44 | ||
|
Unavailable |
|||
|
#18
SWITCH ASSY., STOP (NOT AVAILABLE)
35300-950-003
|
$19.67 | ||
|
Unavailable |
|||
|
#19
CASE, HEADLIGHT (NOT AVAILABLE)
61301-950-023
|
$60.61 | ||
|
Unavailable |
|||
|
#20
BRACKET, HEADLIGHT CASE (NOT AVAILABLE)
66305-950-013
|
$24.10 | ||
|
Unavailable |
|||
|
#21
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#21
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX. (6X22)
92000-06022
Superseded by 92101-06022-0A
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. (6X22)
92000-06022-00
Superseded by 92101-06022-0A
|
$1.62 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX. (6X22)
92101-06022-0A
|
$1.62 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (8X20) (SOURCE: VINTAGE PARTS INC.)
92000-08020-0G
Superseded by 92101-08020-0G
|
$0.73 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (8X20) (SOURCE: VINTAGE PARTS INC.)
92101-08020-0G
|
$0.73 | ||
|
Unavailable |
|||
|
#24
SCREW-WASHER (5X12)
93892-05012-00
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEX. (10MM)
94001-10000-0S
|
$1.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, FLAT (8MM)
94101-08700
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, SPRING (8MM) (NOT AVAILABLE)
94111-08700
|
$0.51 | ||
|
Unavailable |
|||
|
#29
WASHER, SPRING (8MM)
94111-10000
|
$1.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
