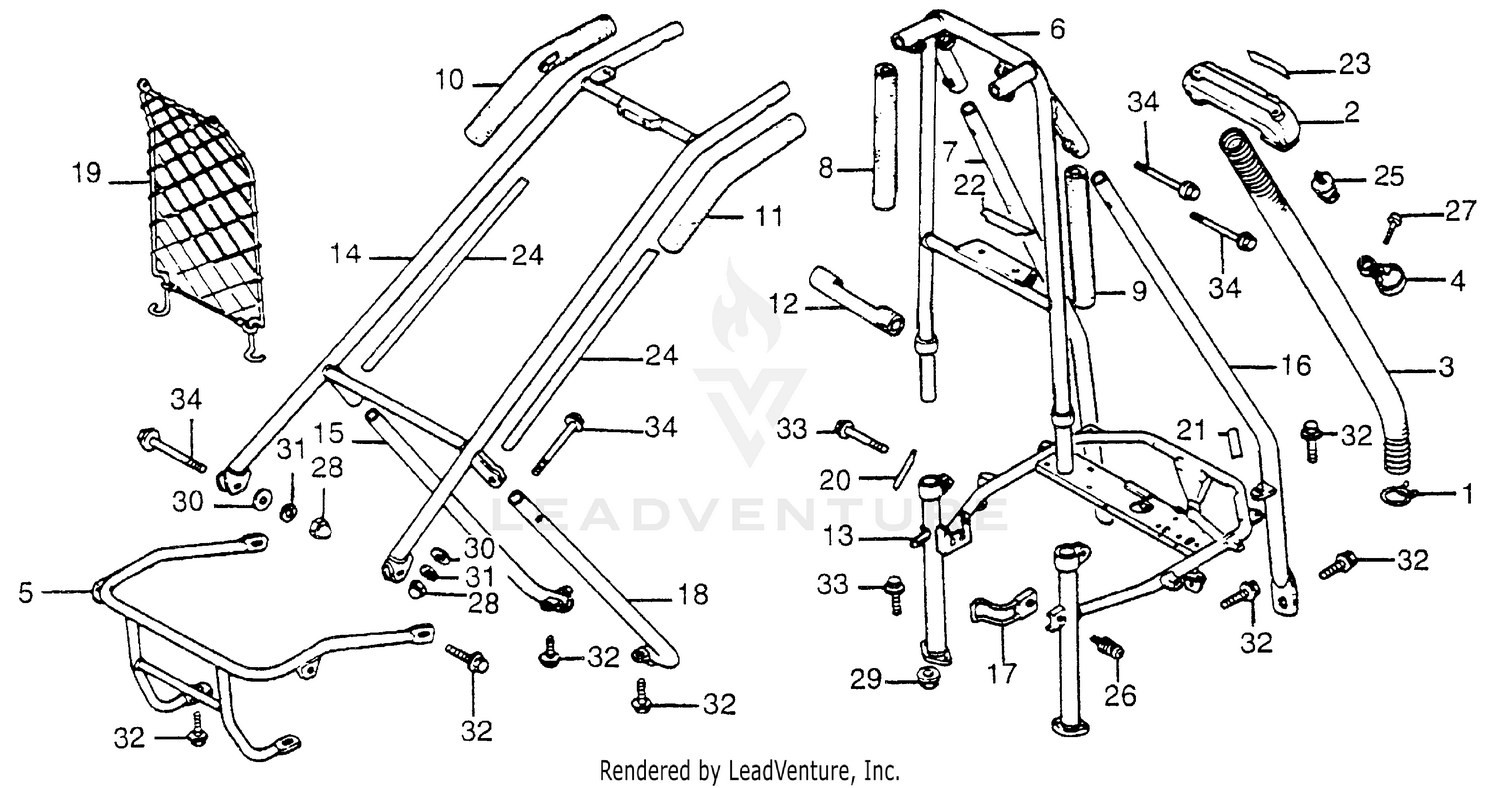

Grab Rail + Front Bumper + Roll Bar 81-84 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, AIR IN. TUBE
17243-671-000
|
$8.68 | ||
|
Unavailable |
|||
|
#2
HOUSING, AIR CLEANER (UPPER) (NOT AVAILABLE)
17316-950-000
|
$35.14 | ||
|
Unavailable |
|||
|
#3
DUCT, AIR IN.
17317-950-000
|
$44.28 | ||
|
Unavailable |
|||
|
#4
BAND, IN. DUCT (NOT AVAILABLE)
17318-950-000
|
$6.42 | ||
|
Unavailable |
|||
|
#5
BUMPER, FR. *R109* (PASSION RED) (NOT AVAILABLE)
62510-950-040ZA
Superseded by 62510-950-643ZA
|
$246.31 | ||
|
Unavailable |
|||
|
#5
BUMPER, FR. *R109* (PASSION RED) (NOT AVAILABLE)
62510-950-643ZA
|
$246.31 | ||
|
Unavailable |
|||
|
#6
BAR, CENTER ROLL *R109* (PASSION RED) (NOT AVAILABLE)
71910-950-030ZA
|
$284.22 | ||
|
Unavailable |
|||
|
#7
BAR, R. RR. ROLL *R109* (PASSION RED) (NOT AVAILABLE)
71912-950-030ZA
|
$104.04 | ||
|
Unavailable |
|||
|
#8
PAD, R. CENTER ROLL BAR (NOT AVAILABLE)
71915-950-030
|
$10.62 | ||
|
Unavailable |
|||
|
#9
PAD, L. CENTER ROLL BAR
71916-950-010
|
$13.19 | ||
|
Unavailable |
|||
|
#10
PAD, R. FR. ROLL BAR (NOT AVAILABLE)
71917-950-000
|
$18.81 | ||
|
Unavailable |
|||
|
#11
PAD, L. FR. ROLL BAR (NOT AVAILABLE)
71918-950-000
|
$18.81 | ||
|
Unavailable |
|||
|
#12
PAD C, CENTER ROLL BAR (NOT AVAILABLE)
71919-950-000
|
$13.19 | ||
|
Unavailable |
|||
|
#13
PIPE, GUARD *R109* (PASSION RED) (NOT AVAILABLE)
71920-950-030ZA
|
$386.24 | ||
|
Unavailable |
|||
|
#14
BAR, FR. ROLL *R109* (PASSION RED) (NOT AVAILABLE)
71922-950-000ZA
|
$176.52 | ||
|
Unavailable |
|||
|
#15
BAR, R. SIDE ROLL *R109* (PASSION RED) (NOT AVAILABLE)
71924-950-000ZA
|
$60.04 | ||
|
Unavailable |
|||
|
#16
BAR, L. RR. ROLL *R109* (PASSION RED) (NOT AVAILABLE)
71932-950-020ZA
|
$104.04 | ||
|
Unavailable |
|||
|
#17
GUARD, SEAT BELT (NOT AVAILABLE)
71941-950-000
|
$11.49 | ||
|
Unavailable |
|||
|
#18
BAR, L. SIDE ROLL *R109* (PASSION RED) (NOT AVAILABLE)
71944-950-000ZA
|
$70.18 | ||
|
Unavailable |
|||
|
#19
NET ASSY., HEAD RETRACT (NOT AVAILABLE)
77800-950-000
|
$72.48 | ||
|
Unavailable |
|||
|
#20
LABEL, STARTER WARNING (NOT AVAILABLE)
87102-950-000
|
$3.59 | ||
|
Unavailable |
|||
|
#21
LABEL, HOT WARNING
87105-950-000
|
$3.63 | ||
|
Unavailable |
|||
|
#22
LABEL, ROLL BAR (NOT AVAILABLE)
87106-950-030
|
$4.03 | ||
|
Unavailable |
|||
|
#23
LABEL, AIR CLEANER HOUSING (UPPER) (NOT AVAILABLE)
87111-950-000
|
$5.98 | ||
|
Unavailable |
|||
|
#24
STRIPE, ROLL BAR (NOT AVAILABLE)
87112-950-000
|
$9.95 | ||
|
Unavailable |
|||
|
#25
BOLT-WASHER (6X12)
93404-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#25
BOLT-WASHER (6X12)
93404-06012-08
Superseded by 93404-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#25
BOLT-WASHER (6X12)
93494-06012-08
Superseded by 93404-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN (5X16)
93500-05016-0G
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW-WASHER (6X14) (NOT AVAILABLE)
93893-06014-00
|
$0.59 | ||
|
Unavailable |
|||
|
#28
NUT, CAP (8MM)
94021-08000-0S
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE (8X16)
95700-08016-00
Superseded by 95701-08016-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (8X16)
95701-08016-00
|
$1.88 | ||
|
Unavailable |
|||
|
#33
BOLT, FLANGE (8X25)
95700-08025-00
Superseded by 95701-08025-00
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (8X25)
95701-08025-00
|
$2.04 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (8X45)
95700-08045-00
Superseded by 95701-08045-00
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (8X45)
95701-08045-00
|
$1.67 | ||
|
Unavailable |
|||
