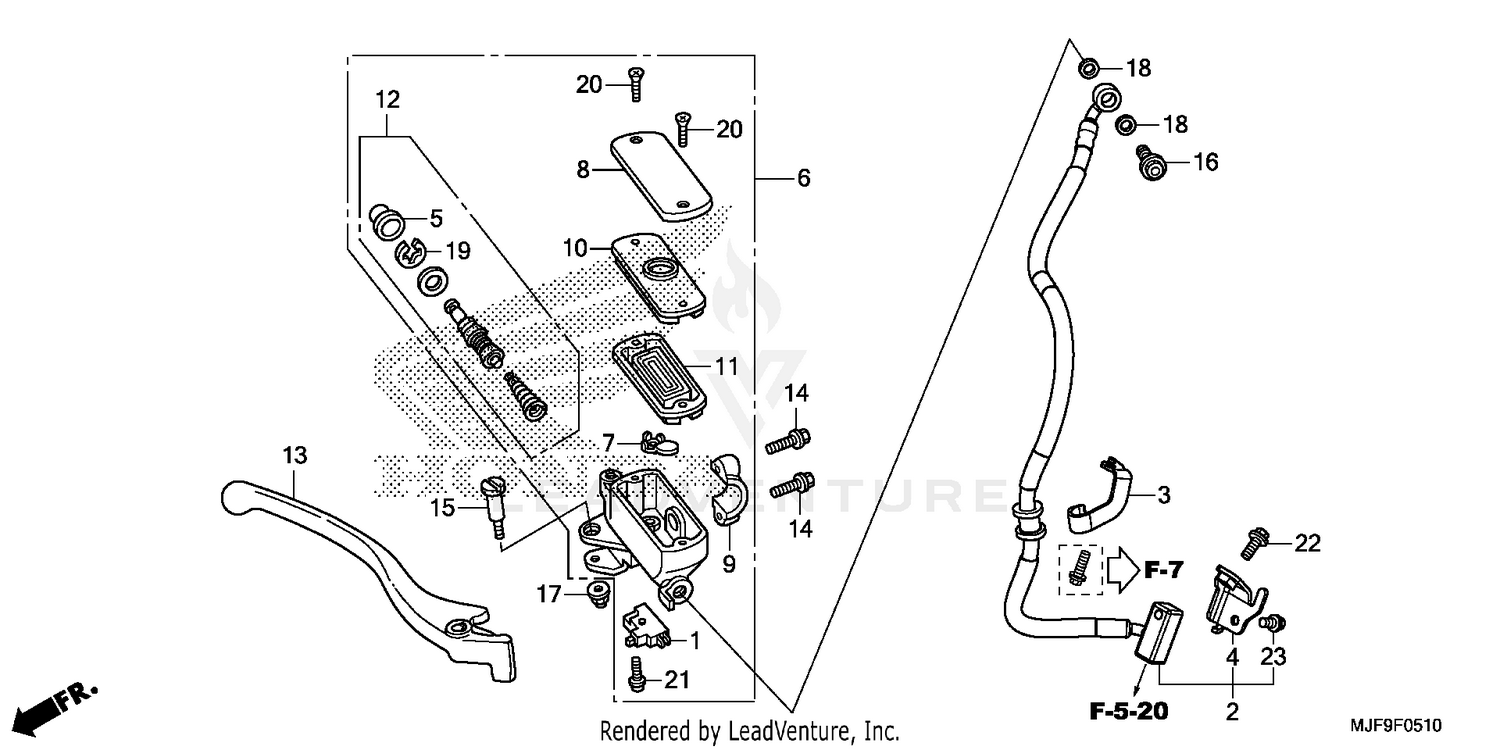

Front Brake Master Cylinder (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MGS-D31
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE A, FR. BRAKE
45125-MJF-C11
|
$67.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP A, FR. BRAKE
45155-MJF-C10
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, FR. BRAKE HOSE
45158-MGS-D80
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
MASTER CYLINDER SUB-ASSY., FR. (NISSIN)
45510-MGS-D31
|
$319.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, MASTER CYLINDER (NISSIN)
45513-MM5-016
|
$27.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, MASTER CYLINDER
45517-166-006
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, DIAPHRAGM (NISSIN)
45518-MM5-006
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIAPHRAGM (NISSIN)
45520-MM5-006
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
MASTER CYLINDER SET
45530-KVY-911
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, R. HANDLE (COO)
53175-MJF-305
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X22)
90101-MBZ-G00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, R. HANDLEBAR PIVOT
90114-MA5-671
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#21
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X14)
95701-06014-07
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X12) (L. SIDE ONLY)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
