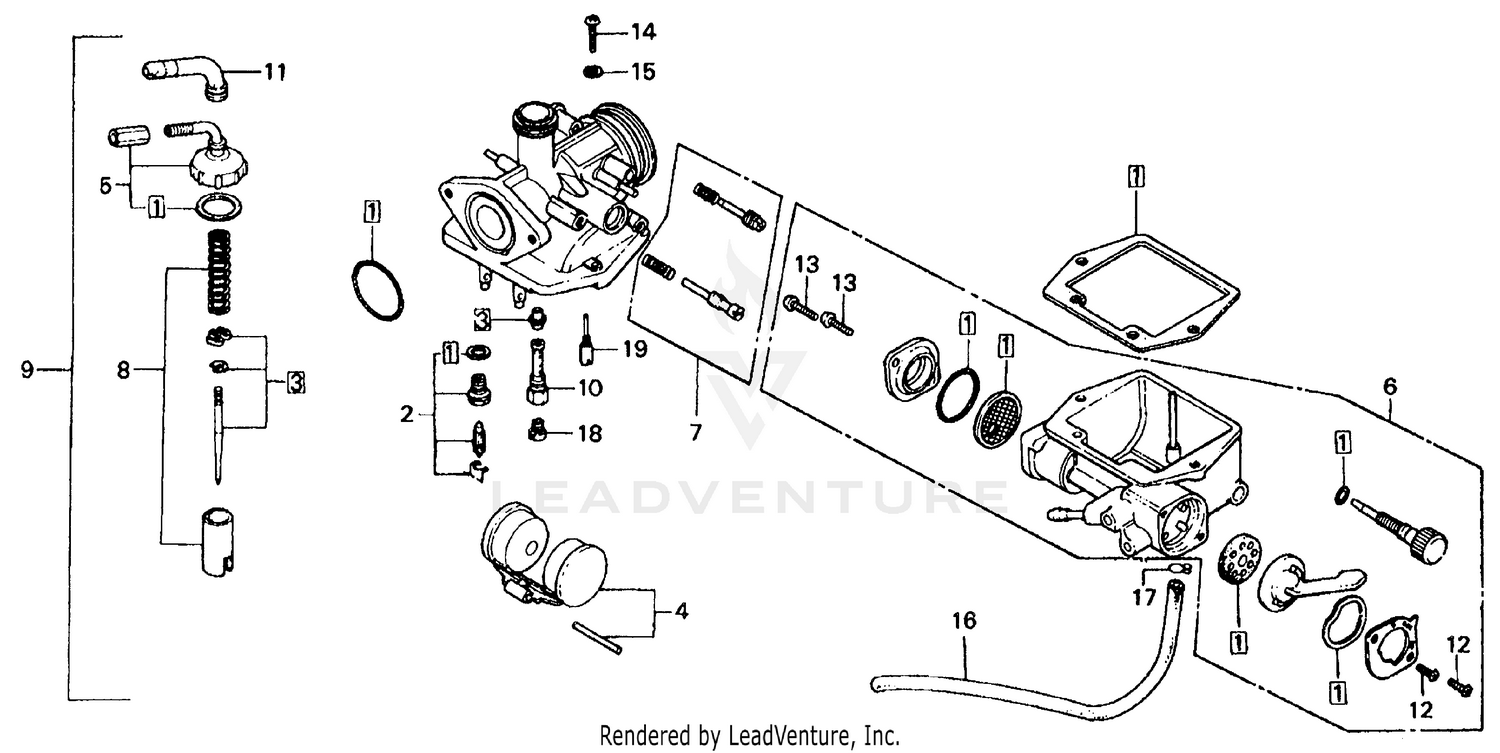

Carburetor K3-77 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-098-004
Superseded by 16010-102-305
|
$39.27 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET
16010-102-305
|
$39.27 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-051-004
|
$19.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-098-004
Superseded by 16011-051-004
|
$19.87 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-134-004
Superseded by 16011-051-004
|
$19.87 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET
16012-098-014
|
$21.09 | ||
|
Unavailable |
|||
|
#4
FLOAT SET
16013-046-004
Superseded by 16013-116-700
|
$34.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-116-700
|
$34.65 | ||
|
Unavailable |
|||
|
#4
FLOAT SET
16013-116-704
Superseded by 16013-116-700
|
$34.65 | ||
|
Unavailable |
|||
|
#5
TOP SET (NOT AVAILABLE)
16014-918-004
|
$22.32 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT (NOT AVAILABLE)
16015-098-730
|
$100.24 | ||
|
Unavailable |
|||
|
#7
SCREW SET A
16016-046-004
|
$19.84 | ||
|
Unavailable |
|||
|
#8
VALVE SET, THROTTLE (NOT AVAILABLE)
16022-098-670
|
$39.22 | ||
|
Unavailable |
|||
|
#9
CARBURETOR ASSY. (NOT AVAILABLE)
16100-098-731
|
$148.12 | ||
|
Unavailable |
|||
|
#10
HOLDER, NEEDLE JET (NOT AVAILABLE)
16165-098-730
|
$11.15 | ||
|
Unavailable |
|||
|
#11
CAP, RUBBER (NOT AVAILABLE)
16194-045-741
|
$5.45 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN (3X5)
93500-03005-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN (3X6)
93500-03006-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN (4X12)
93500-04012-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING (4MM)
94111-04000
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULK HOSE, FUEL (3.5X3000) (3.5X240)
95001-35003-60M
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
JET, MAIN (#58)
99114-076-0580
|
$5.67 | ||
|
Unavailable |
|||
|
#19
JET, SLOW (#35)
99124-098-0350
Superseded by 99124-217-0351
|
$7.30 | ||
|
Unavailable |
|||
|
#19
JET, SLOW (#35)
99124-217-0351
|
$7.30 | ||
|
Unavailable |
|||
