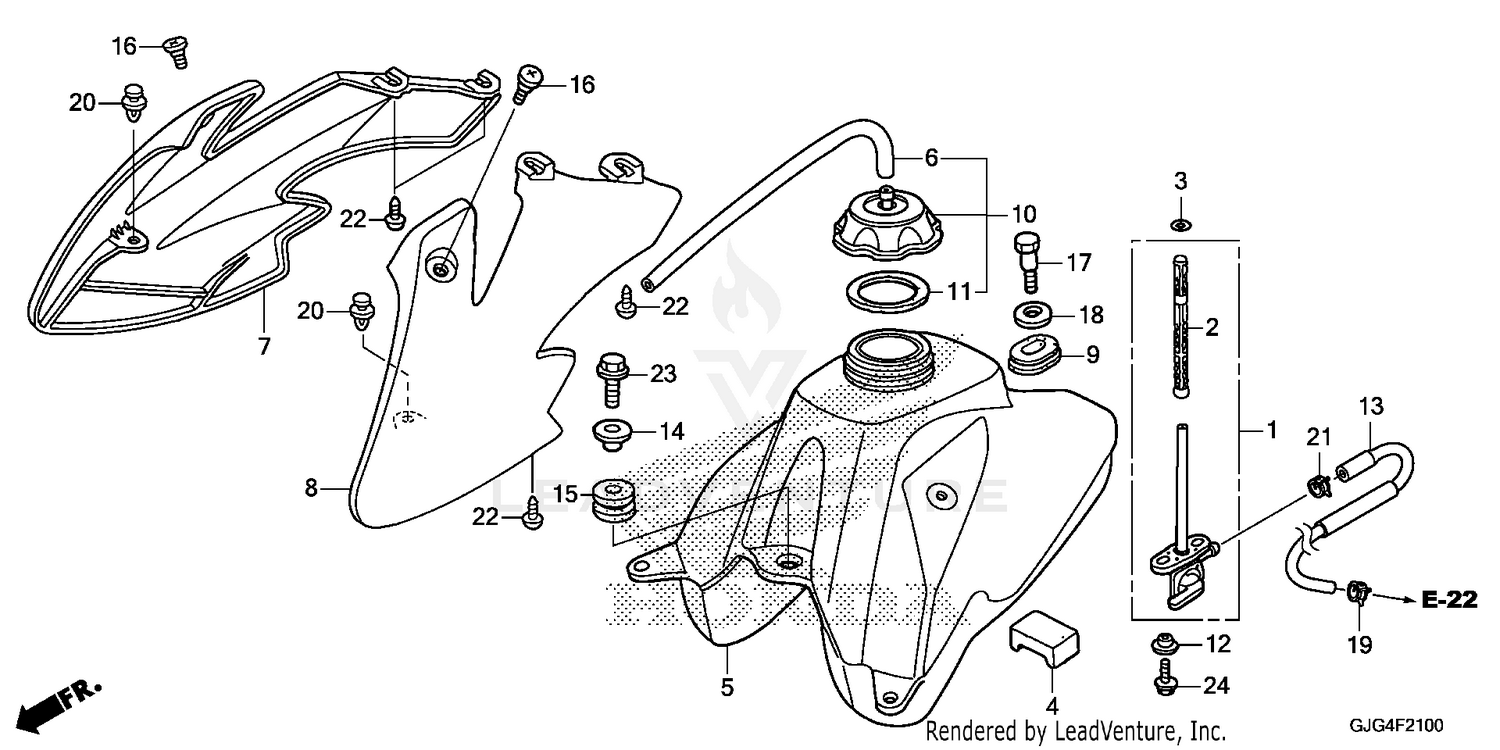

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-GEL-701
|
$74.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
SCREEN SET, FUEL STRAINER
16952-GEL-701
|
$25.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING (11.8X3.55)
16997-467-000
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
RUBBER, TANK MOUNTING
17504-GEL-700
|
$15.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
TANK, FUEL
17510-GEL-A40
|
$282.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE, FUEL CAP BREATHER
17521-429-000
|
$8.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SHROUD SET *NH196*
17545-GJG-C60ZA
|
$65.49 | ||
|
Unavailable |
|||
|
#8
SHROUD SET *NH196*
17555-GJG-C60ZA
|
$65.45 | ||
|
Unavailable |
|||
|
#9
CUSHION, RR. FUEL TANK
17613-GF8-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP ASSY., FUEL TANK
17620-GEL-770
|
$38.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, FUEL CAP
17624-GEL-770
|
$5.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
COLLAR, FUEL TANK SETTING
17626-467-000
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, FUEL
17681-GEL-A40
|
$21.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR (8X12)
80101-KB7-600
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION, RR. FENDER
80103-MG2-000
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, SPECIAL (5MM)
90104-GEL-A80
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (8X21)
90138-GEL-A80
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (10MM)
90501-GEL-A80
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CLAMP, TUBE (8.0)
90652-KSJ-A21
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLAMP, TUBE (8.5)
90653-KSJ-A20
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, TAPPING (5X16)
93903-25320
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (8X25)
95701-08025-00
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
