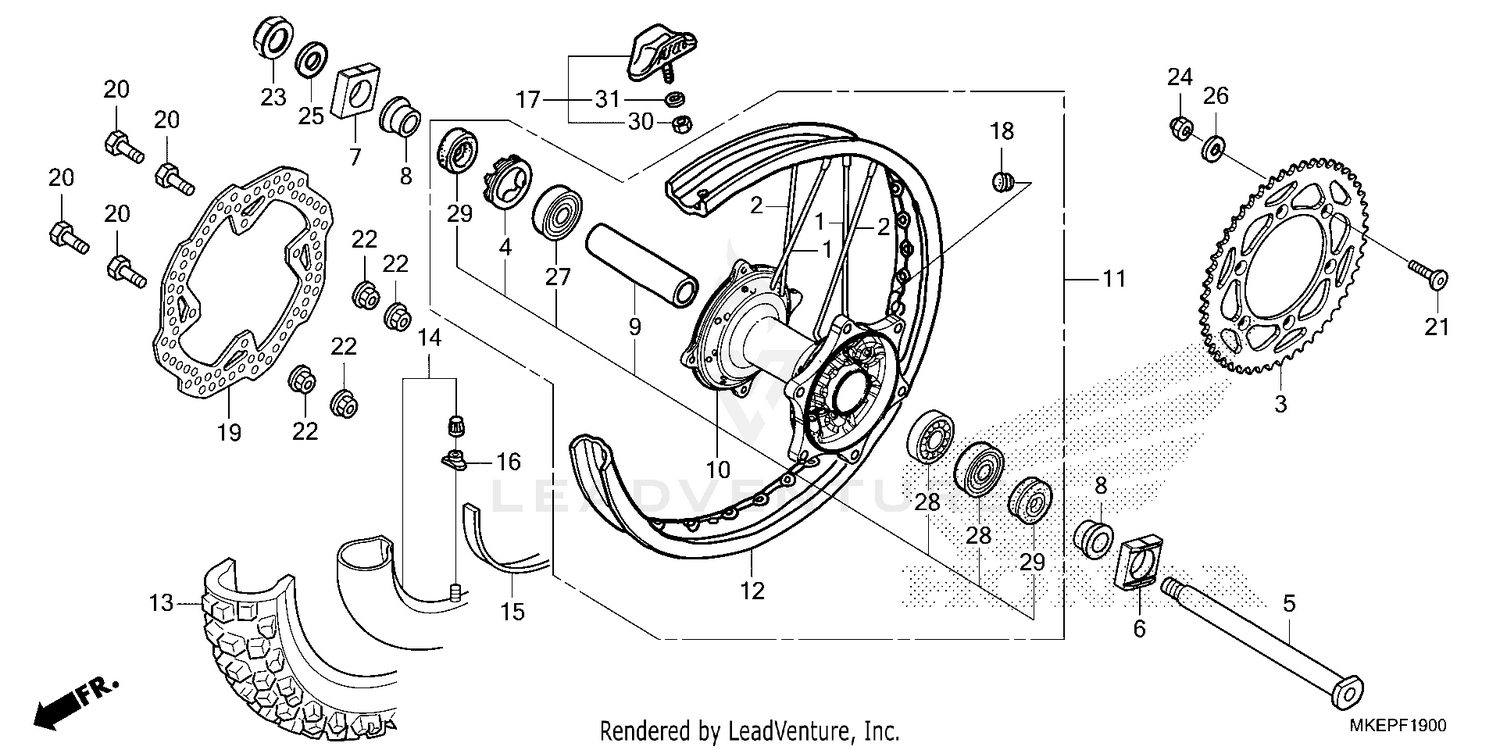

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPOKE SET, RR. (INSIDE)
06420-KRN-710
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET, RR. (OUTSIDE)
06421-KRN-710
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, FINAL DRIVEN (49T)
41201-MKE-A70
|
$156.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, FINAL DRIVEN (48T)
41202-MKE-A00
|
$155.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, FINAL DRIVEN (50T)
41203-MKE-A00
|
$155.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINER, RR. WHEEL BEARING
41231-KZ4-J20
|
$23.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
AXLE, RR. WHEEL
42301-KRN-A30
|
$56.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, L. RR. AXLE
42305-MKE-A50
|
$25.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, R. RR. AXLE
42306-KZ4-J20
|
$23.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
COLLAR, RR. WHEEL SIDE
42311-MKE-A60
|
$32.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, RR. WHEEL DISTANCE
42620-MKE-A60
|
$32.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
HUB SUB-ASSY., RR.
42635-MKE-AF0
|
$487.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
WHEEL SUB-ASSY., RR.
42650-MKE-AH0
|
$1,059.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
RIM, RR. WHEEL (19X2.15)
42701-MKE-A91
|
$452.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
TIRE (120/80-19 63M)
42711-MKE-AF1
Superseded by 42711-MKE-AF2
|
$146.30 | ||
|
Unavailable |
|||
|
#13
TIRE (120/80-19 63M)
42711-MKE-AF2
|
$146.30 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE (DUNLOP)
42712-KZ3-612
Superseded by 42712-KZ3-613
|
$53.33 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE (DUNLOP)
42712-KZ3-613
|
$53.33 | ||
|
Unavailable |
|||
|
#15
BAND, TIRE RIM (DUNLOP)
42713-KZ3-611
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER, BEAD (2.15)
42715-MA0-770
|
$45.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, RIM HOLE
42717-329-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
DISK, RR. BRAKE
43351-KRN-A90
|
$273.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, DISK (6X19)
90105-MAC-680
|
$6.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, FLAT SOCKET
90125-MKE-AF0
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, U (6MM) NUT, FLANGE (6MM)
90301-473-003
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U (22MM)
90305-KZ4-J20
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, U (8MM)
90309-MKE-AF1
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (22X35X2)
90401-KZ4-J20
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER (8MM)
90465-MC4-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (69052RS)
91051-KZ4-J21
|
$22.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (6905RS)
91052-KZ4-J21
|
$21.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
DUST SEAL (32X43X7)
91251-KZ4-J21
|
$6.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
