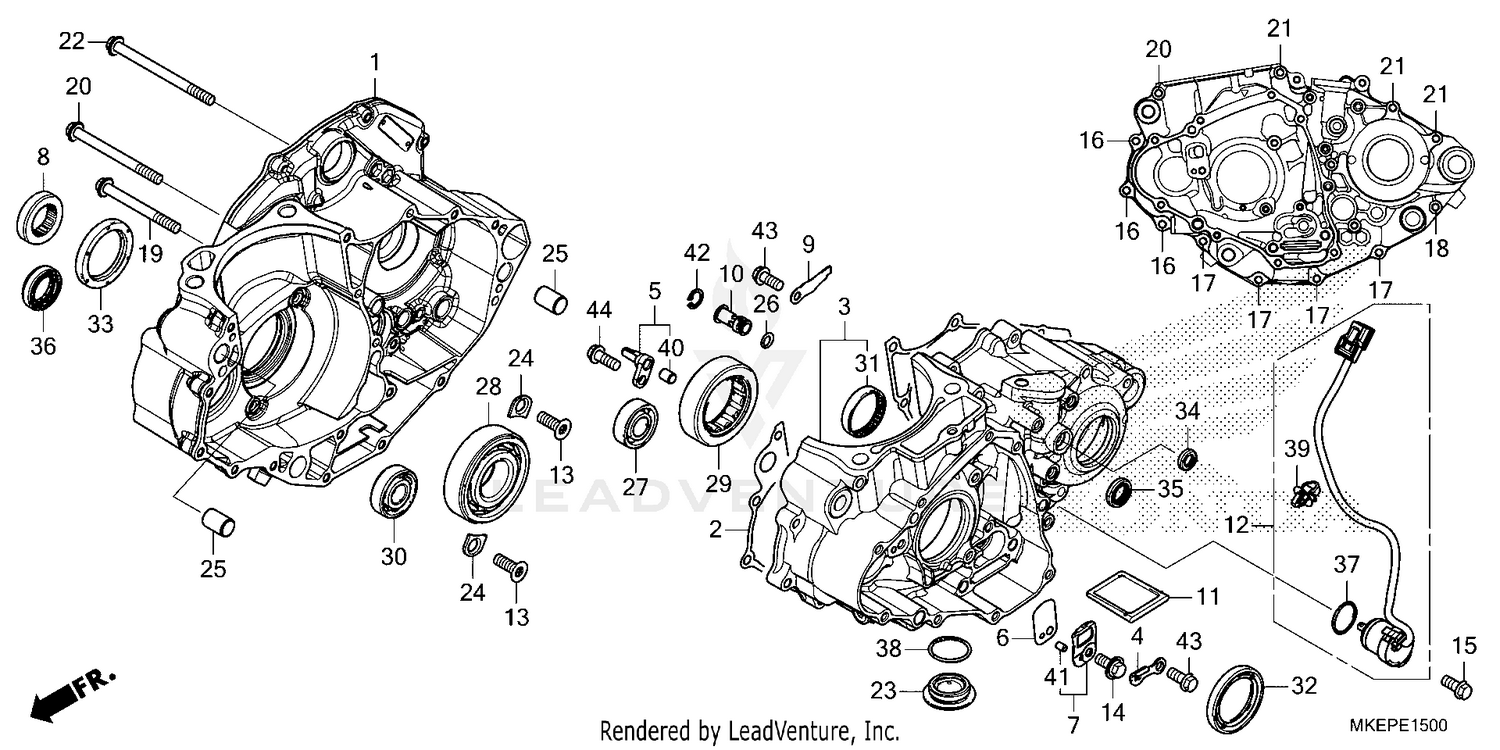

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-MKE-A70
|
$537.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE
11191-MKE-A01
|
$25.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE COMP, L.
11200-MKE-AF1
|
$532.19 | ||
|
Unavailable |
|||
|
#4
PLATE, CAM CHAIN GUIDE
11206-MKE-A00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, PISTON
11210-MKE-A71
|
$52.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE, REED
11221-MKE-A00
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOPPER, REED VALVE
11230-MKE-A00
|
$30.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, CRANKSHAFT
13415-MKE-A00
|
$35.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, OIL GUIDE
15201-MKE-A00
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE ASSY., RELIEF
15220-MEN-A30
|
$28.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREEN, OIL FILTER
15421-MKE-A70
|
$17.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWITCH ASSY., CHANGE
35759-MKE-AF1
|
$115.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, SPECIAL FLAT (6X17)
90001-MEN-850
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-WASHER (6X14)
90019-MKE-A00
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X12)
90020-GHB-620
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X28)
90025-GHB-690
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X40)
90025-GHB-740
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X50)
90025-GHB-760
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X60)
90025-GHB-780
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X70)
90025-GHB-800
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X75)
90025-GHB-810
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X80)
90025-GHB-820
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, DRAIN (30MM)
90088-MKE-A70
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, BEARING HOLDER
90441-MEN-A30
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, DOWEL (14X20)
90701-MKE-A00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (8.5X1.7)
90751-GK1-003
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL SPECIAL (6202)
91001-MEN-A31
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (30X72X19)
91001-MKE-A71
|
$60.84 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, SPECIAL ROLLER (NTN)
91002-MEY-671
|
$60.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BEARING, RADIAL BALL (15X38X11)
91004-MKE-A01
|
$28.87 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, SHELL (33X38X8)
91022-KA4-741
|
$19.22 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL (38X52X7) (ARAI)
91201-MEB-671
|
$15.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
OIL SEAL (39X53X7)
91202-MKE-A01
|
$20.25 | ||
|
Available to order. Add to View Price |
|||
|
#34
OIL SEAL (7X14.5X5)
91202-MKE-AF1
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#35
OIL SEAL (14X22X5) (ARAI)
91203-KSP-911
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#36
OIL SEAL (22X33X7.5)
91203-MKE-A01
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (16.5X2.5)
91305-KC1-850
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING (30MM)
91356-KWV-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP, HARNESS BAND (145MM) (BLACK)
91541-S0A-003
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN A, DOWEL (8X10)
94301-08100
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
PIN C, DOWEL (4X6.5)
94303-04065
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#42
CIRCLIP (INNER) (14MM)
94520-14000
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
