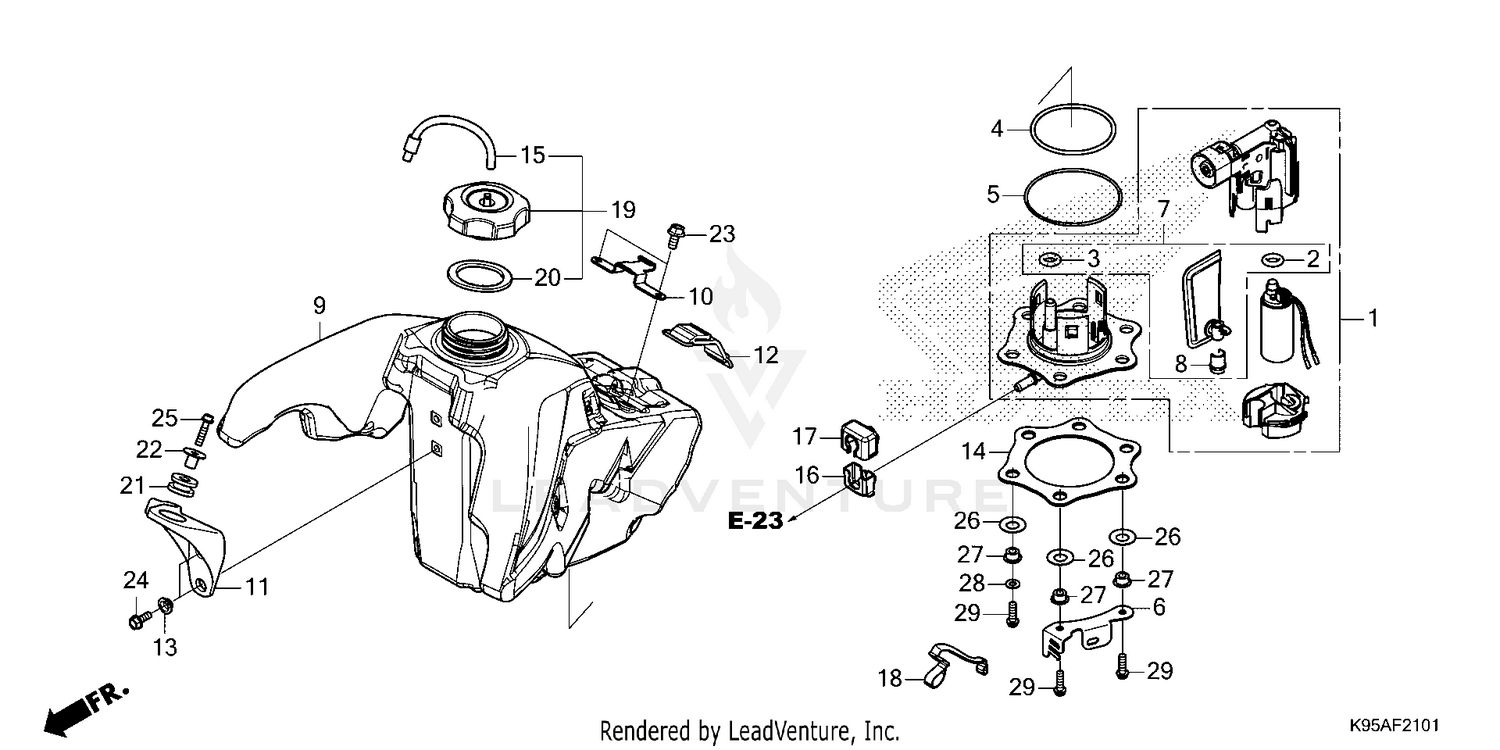

Fuel Tank (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE)
16700-MEN-A52
|
$441.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING (8.6X1.9)
16702-KPC-D50
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING (10X2.4)
16702-KTR-940
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING (3.7X73.9)
16711-MEN-A30
|
$14.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
O-RING (2.4X88.4)
16712-MEN-A30
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUARD, FUEL JOINT
16714-MKE-AG0
|
$22.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
FILTER SET
16715-MEN-A51
|
$77.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, STOPPER
16735-MEN-A51
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
TANK, FUEL
17510-MKE-AG0
|
$919.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, SEAT HOOK
17513-MKE-AG0
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, FR. FUEL TANK
17516-MKE-AG0
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, RR. TANK
17517-MKE-AF0
|
$16.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, FR. TANK STAY
17518-MKE-AF0
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, FUEL PUMP
17519-MEN-A30
|
$21.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE, FUEL CAP BREATHER
17521-MKE-A70
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, FUEL CONNECTOR
17575-MKE-AF0
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER, FUEL CONNECTOR
17576-KRN-A90
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
STRAP, FUEL TANK
17577-MKE-AF0
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP ASSY., FUEL TANK
17620-MKE-A81
|
$104.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, FUEL CAP
17624-KT1-781
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
RUBBER, MUFFLER
18334-KA3-830
|
$4.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
COLLAR, RADIATOR MOUNTING
19052-MAC-680
|
$6.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (5X10)
90002-892-000
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X16)
90020-GHB-640
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X25)
90020-GHB-680
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, CONICAL SPRING FUEL PUMP
90502-MEN-A30
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR, FUEL PUMP
90504-MKE-A00
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#28
WASHER, PLAIN (6MM) (USED ON TAILLIGHT)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
