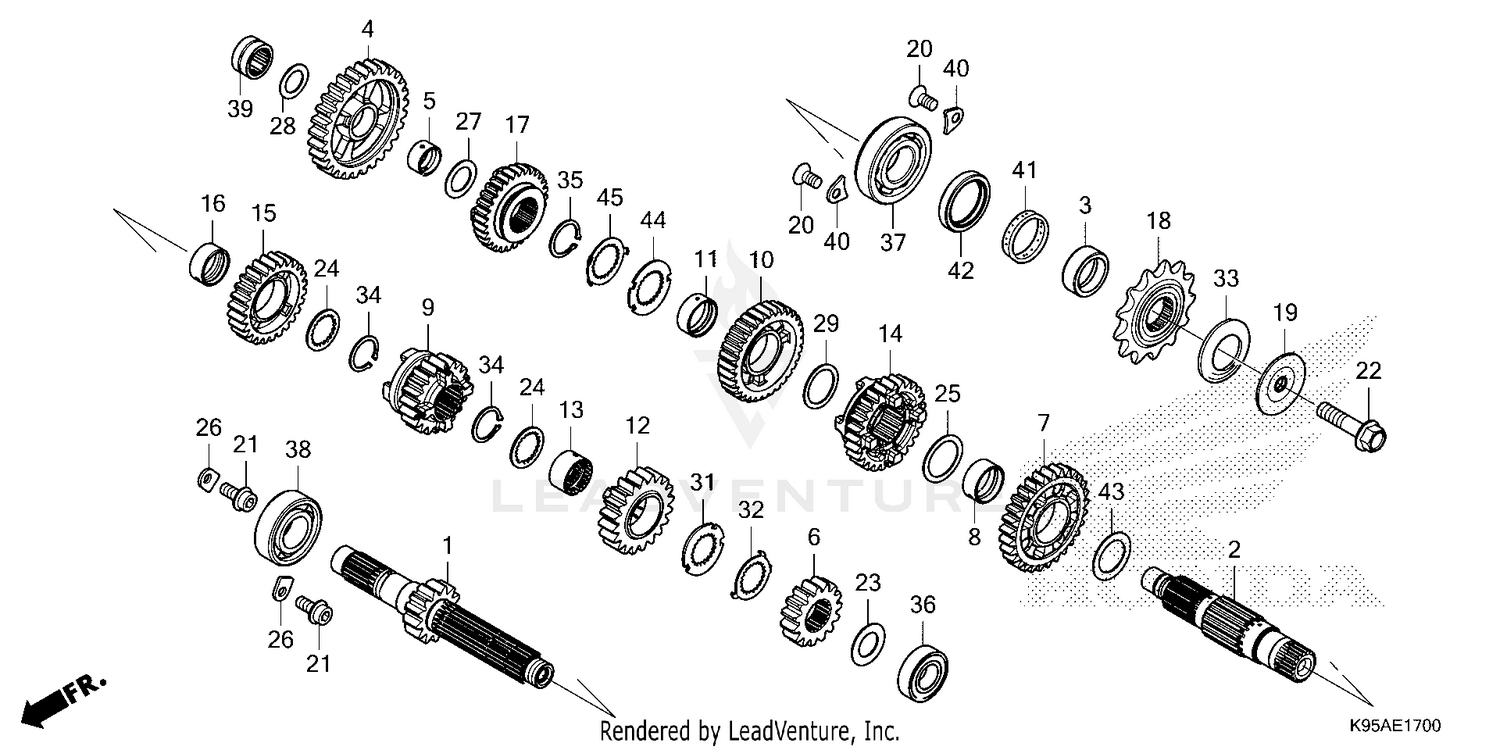

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (13T)
23210-K95-AA0
|
$159.69 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT
23221-K95-AA0
|
$152.84 | ||
|
Unavailable |
|||
|
#3
COLLAR, COUNTERSHAFT
23225-MEN-730
|
$18.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR (31T)
23411-K95-AA0
|
$108.15 | ||
|
Unavailable |
|||
|
#5
COLLAR (17MM)
23413-KRN-A40
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR (15T)
23421-K95-AA0
|
$55.64 | ||
|
Unavailable |
|||
|
#7
GEAR (29T)
23431-K95-AA0
|
$102.80 | ||
|
Unavailable |
|||
|
#8
COLLAR (27X30X13.2)
23432-MKE-A00
|
$19.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR (20T)
23441-K95-AA0
|
$112.25 | ||
|
Unavailable |
|||
|
#10
GEAR (32T)
23451-K95-AA0
|
$108.15 | ||
|
Unavailable |
|||
|
#11
COLLAR (25X28X11) (NOT AVAILABLE)
23452-K95-AA0
|
$14.11 | ||
|
Unavailable |
|||
|
#12
GEAR (20T)
23461-K95-AA0
|
$99.53 | ||
|
Unavailable |
|||
|
#13
COLLAR (22X12.2)
23462-K95-AA0
|
$15.71 | ||
|
Unavailable |
|||
|
#14
GEAR (27T)
23471-K95-AA0
|
$118.40 | ||
|
Unavailable |
|||
|
#15
GEAR (26T)
23481-K95-AA0
|
$102.80 | ||
|
Unavailable |
|||
|
#16
COLLAR (22X25X10)
23482-K95-AA0
|
$14.73 | ||
|
Unavailable |
|||
|
#17
GEAR (30T)
23491-K95-AA0
|
$118.40 | ||
|
Unavailable |
|||
|
#18
SPROCKET, DRIVE (13T)
23802-MEN-730
|
$47.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR, DRIVE SPROCKET
23802-KSC-670
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, SPECIAL FLAT (6X12)
90003-KRN-670
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE SOCKET (6X14)
90071-MF5-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, UBS (8X33)
90112-413-000
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, SPECIAL (17MM)
90403-HN8-000
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (22X21X1.0)
90404-K95-AA0
|
$2.76 | ||
|
Unavailable |
|||
|
#25
WASHER, THRUST (27.2X35)
90446-ML3-870
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE, BEARING HOLDER
90441-KRM-840
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, THRUST (17.2MM)
90446-357-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER (16X26X1.0)
90446-K95-A20
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER (25X32X1.0)
90401-HP1-670
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPLINE (22MM)
90453-K95-A20
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, LOCK (22MM)
90454-K95-A20
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING (24MM)
90501-KSC-670
|
$5.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
SET-RING, COUNTER SECOND
90602-360-000
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP (OUTER) (25MM)
90602-259-010
|
$7.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BEARING, RADIAL BALL (17X40X11)
91006-MKE-A51
|
$23.62 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, RADIAL BALL (24X56X14)
91005-MKE-A01
|
$38.84 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, RADIAL BALL (22X47X14)
91006-HM7-003
|
$44.13 | ||
|
Available to order. Add to View Price |
|||
|
#39
BEARING, NEEDLE (16X24X13)
91006-K95-A21
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#40
PLATE, COUNTERSHAFT BEARING
91012-KA3-710
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#41
D-RING (23.75MM) (ARAI)
91201-ML3-873
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#42
OIL SEAL (31X40X7) (ARAI)
91207-ML3-871
|
$12.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
WASHER, THRUST (24.1X37X1.0)
90445-MKE-A00
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, SPLINE (25MM)
90461-MEN-A70
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, LOCK (25MM)
90462-MEN-A70
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
