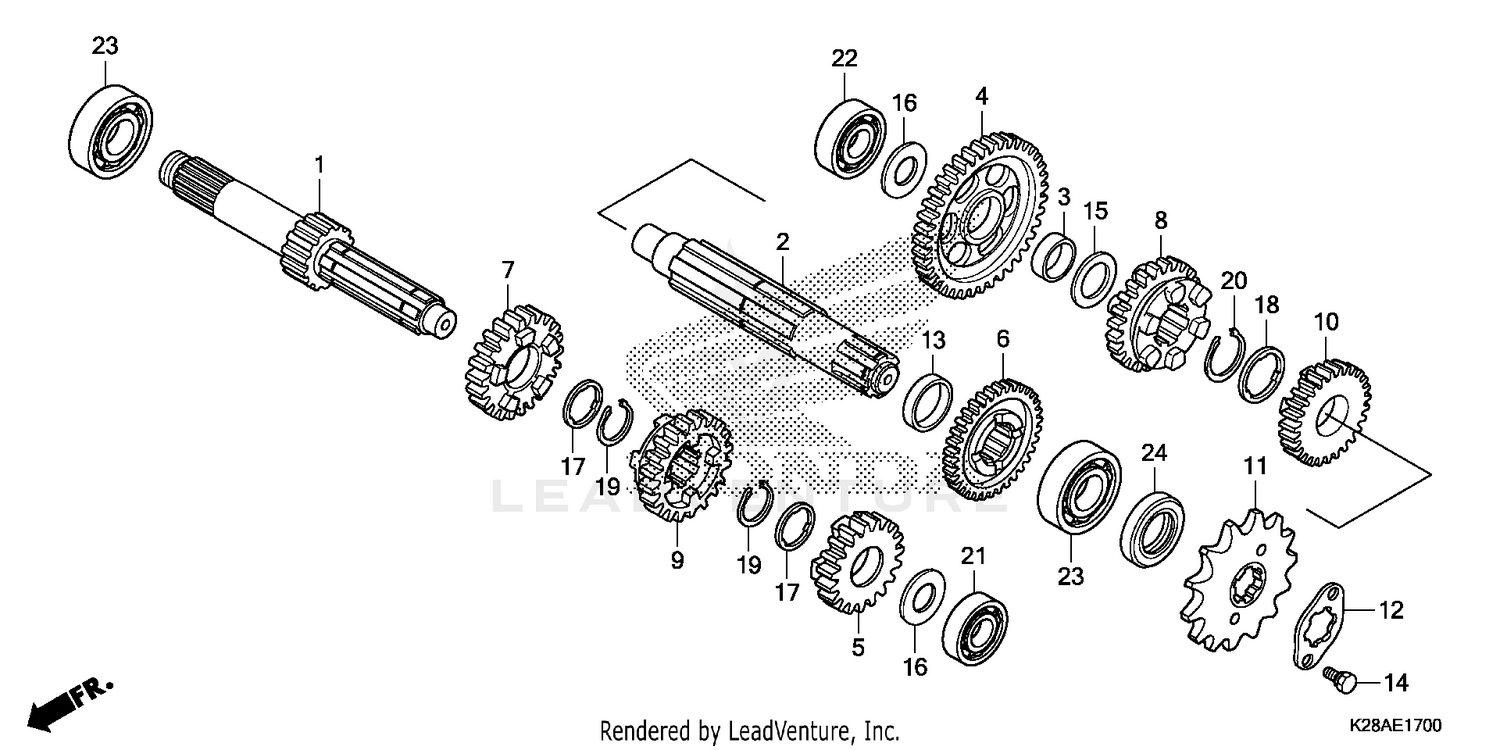

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (11T)
23211-KYY-900
|
$125.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23221-KYY-900
|
$103.86 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH (15MM)
23415-KPH-900
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTERSHAFT FIRST (35T)
23421-KYY-900
|
$94.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, MAINSHAFT SECOND (17T)
23431-KYY-900
|
$72.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (29T)
23441-KYY-900
|
$80.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, MAINSHAFT THIRD (21T)
23451-KYY-901
|
$80.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (26T)
23461-KYY-901
|
$95.83 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, MAINSHAFT FOURTH (24T)
23471-KYY-901
|
$87.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTERSHAFT FOURTH (22T)
23481-KYY-901
|
$85.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPROCKET, DRIVE (13T)
23801-K28-910
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, FIXING
23802-K28-910
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR (20MM)
23911-KWS-900
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, DRIVE SPROCKET FIXING
90084-041-000
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, THRUST (15MM)
90412-187-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, SPECIAL (12X23)
90412-KPH-900
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPLINE (17MM)
90461-035-000
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPLINE (20MM)
90461-459-010
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP (17MM)
90601-KYY-900
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP (20MM)
90602-KYY-900
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (6001)
91013-KZV-J01
Superseded by 96100-60010-00
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (6001)
96100-60010-00
|
$9.64 | ||
|
Unavailable |
|||
|
#22
BEARING, RADIAL BALL (6201)
91014-KZV-J01
|
$18.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (6203) (NA USE ALT:96100-62030-00)
91015-KZV-J01
|
$15.14 | ||
|
Unavailable |
|||
|
#24
OIL SEAL (17X29X5)
91204-KWB-601
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
