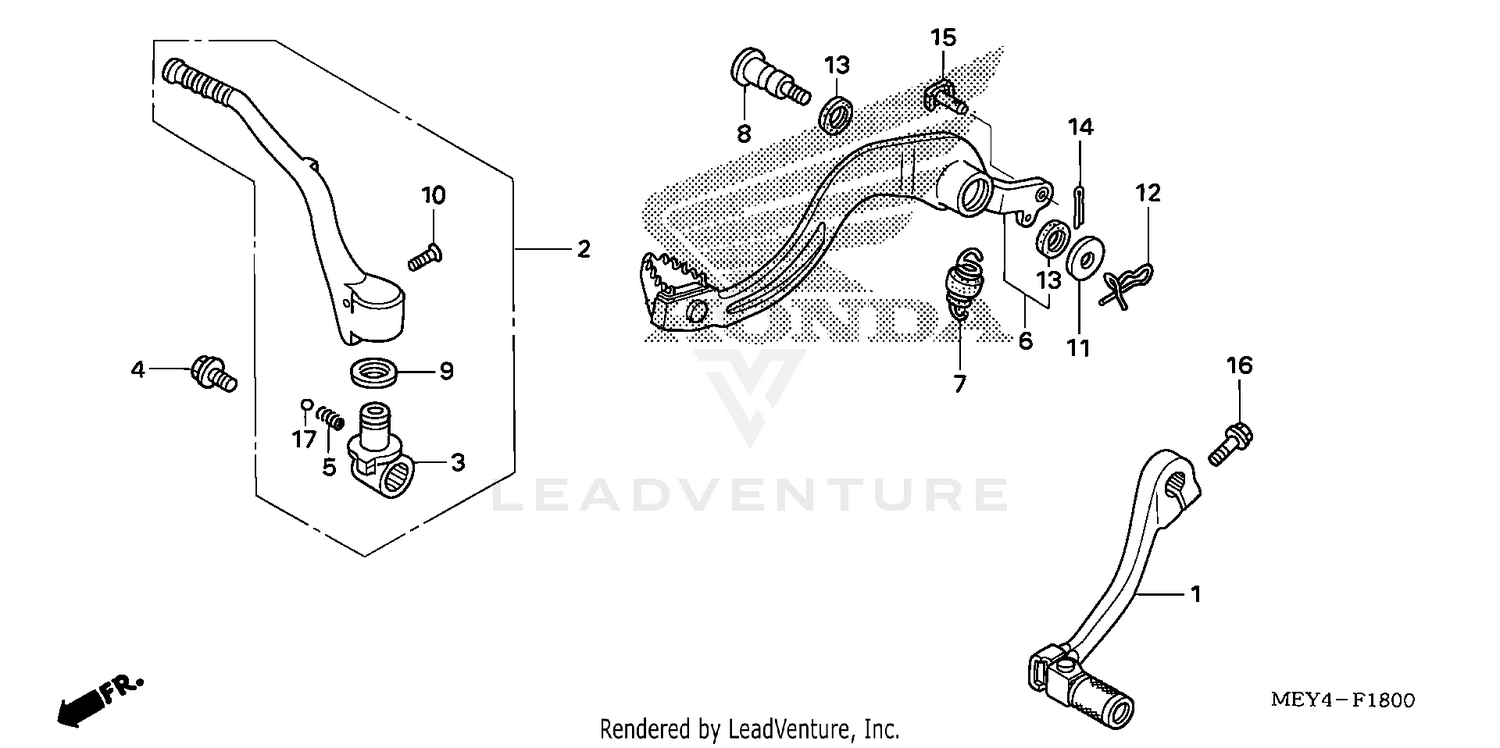

Pedal + Kick Starter Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, CHANGE (COO)
24700-MEY-670
Superseded by 24700-MEY-305
|
$121.18 | ||
|
Unavailable |
|||
|
#2
ARM ASSY., KICK STARTER
28300-MEY-A00
|
$208.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT, KICK ARM
28302-MEB-671
|
$89.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, KICK JOINT
28306-MEN-670
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, KICK STARTER
28333-KK0-000
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PEDAL, RR. BRAKE
46510-MEY-305
Superseded by 46510-MEY-670
|
$141.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
PEDAL, RR. BRAKE
46510-MEY-670
|
$141.69 | ||
|
Unavailable |
|||
|
#7
SPRING ASSY., RR. BRAKE RETURN
46511-KZ4-J00
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, BRAKE PIVOT
46513-MEY-670
|
$17.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUST SEAL (17X20X2.5)
46525-KK0-003
|
$6.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, KICK ARM
90103-KRN-000
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (26X10.5)
90512-KRN-730
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, SNAP (8MM)
90705-PFF-300
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
DUST SEAL (15X20X2.5)
91251-444-000
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, SPLIT (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
