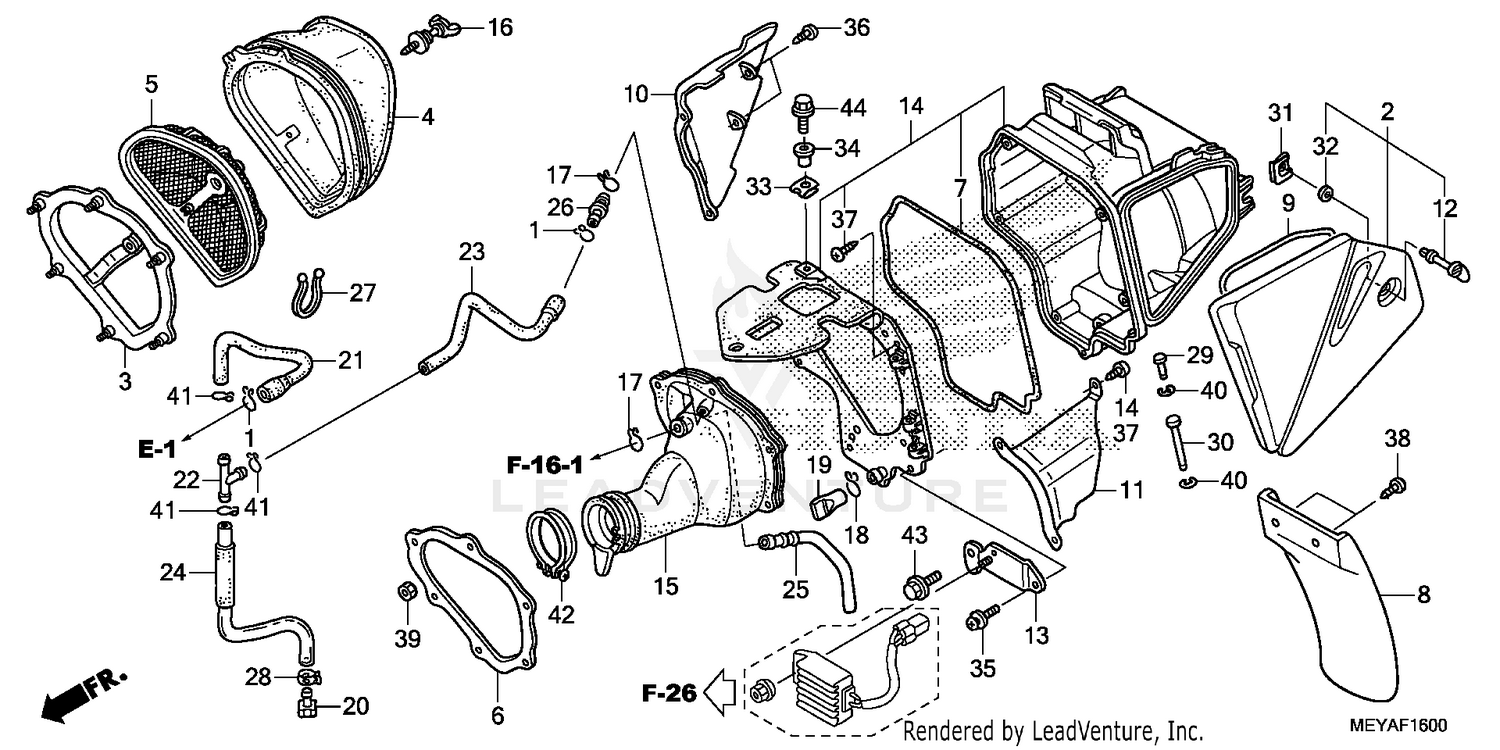

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, OIL DRAIN TUBE
15771-551-000
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER ASSY., AIR CLEANER
17211-MEY-A30
|
$61.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, AIR CLEANER ELEMENT
17212-MEN-670
|
$80.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
ELEMENT, AIR CLEANER
17213-KSC-000
|
$48.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
BASE ASSY., ELEMENT
17214-MEN-670
|
$57.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, FR. AIR CLEANER HOUSING
17217-MEB-770
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, AIR CLEANER HOUSING
17218-KSC-000
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPLASH GUARD, AIR CLEANER HOUSING
17218-MEN-A20
|
$44.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, AIR CLEANER COVER
17219-MEY-670
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, R. SIDE
17221-MEY-A30
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUARD, HEAT
17223-MEY-670
|
$32.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
STUD (6X21)
17225-KN5-671
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, REGULATOR
17231-MEY-670
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOUSING, AIR CLEANER
17250-MEY-670
|
$96.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE, AIR CLEANER CONNECTING
17253-MEY-720
|
$58.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, ELEMENT SETTING
17291-KSC-000
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, BREATHER TUBE
17316-611-000
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP A, BREATHER TUBE
17316-MN1-670
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE, DRAIN
17358-HA0-680
Superseded by 17358-HM8-000
|
$6.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
TUBE, DRAIN
17358-HM8-000
|
$6.20 | ||
|
Unavailable |
|||
|
#20
PLUG, BREATHER TUBE
17370-419-700
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE A, BREATHER
17372-MEN-A10
|
$12.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
JOINT, BREATHER THREE WAY
17373-KC1-J10
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
TUBE B, BREATHER
17374-MEY-A20
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
TUBE C, BREATHER
17375-MEB-670
|
$7.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PIPE, BREATHER
17376-MEY-720
|
$37.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
JOINT (TWO-WAY)
18631-MAH-710
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#27
LOCK, PURSE
32171-GF9-621
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, BRAKE LOCK LEVER PIVOT
53189-GCS-000
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, VISOR HINGE
64308-GG2-000
|
$9.22 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE, SPRING
64508-KV3-000
|
$9.07 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER (5.4X14X0.5)
90505-MY6-920
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, CLIP (6MM)
90305-GK8-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR, AIR CLEANER
90501-KRN-000
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW-WASHER (5X14)
93892-05014-07
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, TAPPING (4X12)
93903-24380
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
SCREW, TAPPING (5X16)
93903-25380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, TAPPING (5X16) (PO)
93913-25410
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, HEX. (5MM)
94002-05070-0S
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#40
E-RING (3MM)
94540-03010
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
BAND, AIR CLEANER CONNECTING TUBE (60)
95018-60321
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE (6X12)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
