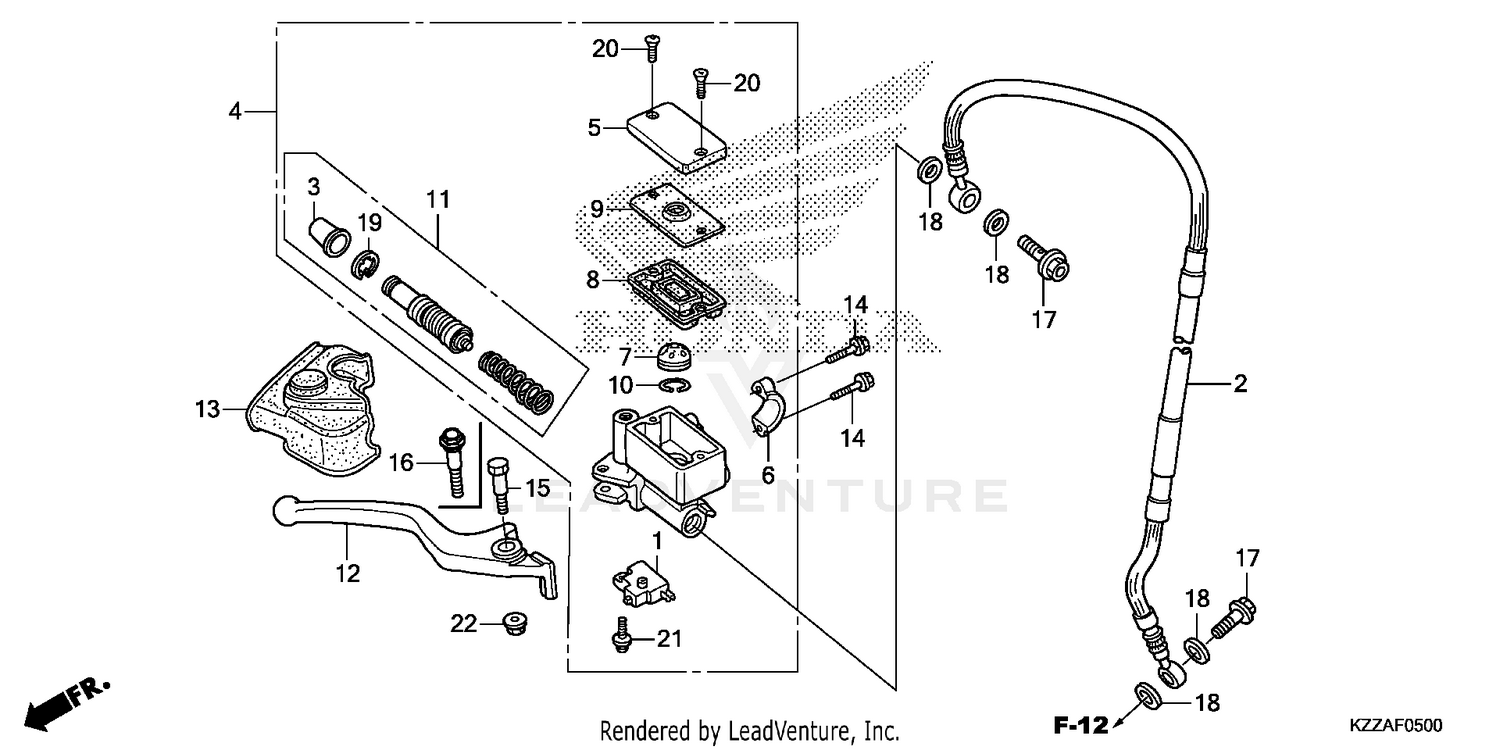

Front Brake Master Cylinder (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MGS-D31
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, FR. BRAKE
45124-KZZ-J01
|
$35.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
45510-KZZ-305
|
$90.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
45510-KZZ-901
Superseded by 45510-KZZ-305
|
$90.20 | ||
|
Unavailable |
|||
|
#5
CAP, MASTER CYLINDER
45513-HA2-006
|
$33.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, MASTER CYLINDER
45517-166-006
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEPARATOR
45518-MEN-J01
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM
45520-MG7-006
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, DIAPHRAGM
45521-HA2-006
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING
45523-KA3-731
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
MASTER CYLINDER SET
45530-471-831
|
$48.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, R. HANDLEBAR (COO)
53175-KZZ-305
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, R. HANDLEBAR (COO)
53175-KZZ-900
Superseded by 53175-KZZ-305
|
$13.04 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (6X22)
90013-GHB-660
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, LEVER PIVOT
90114-KZZ-J01
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#21
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#22
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
