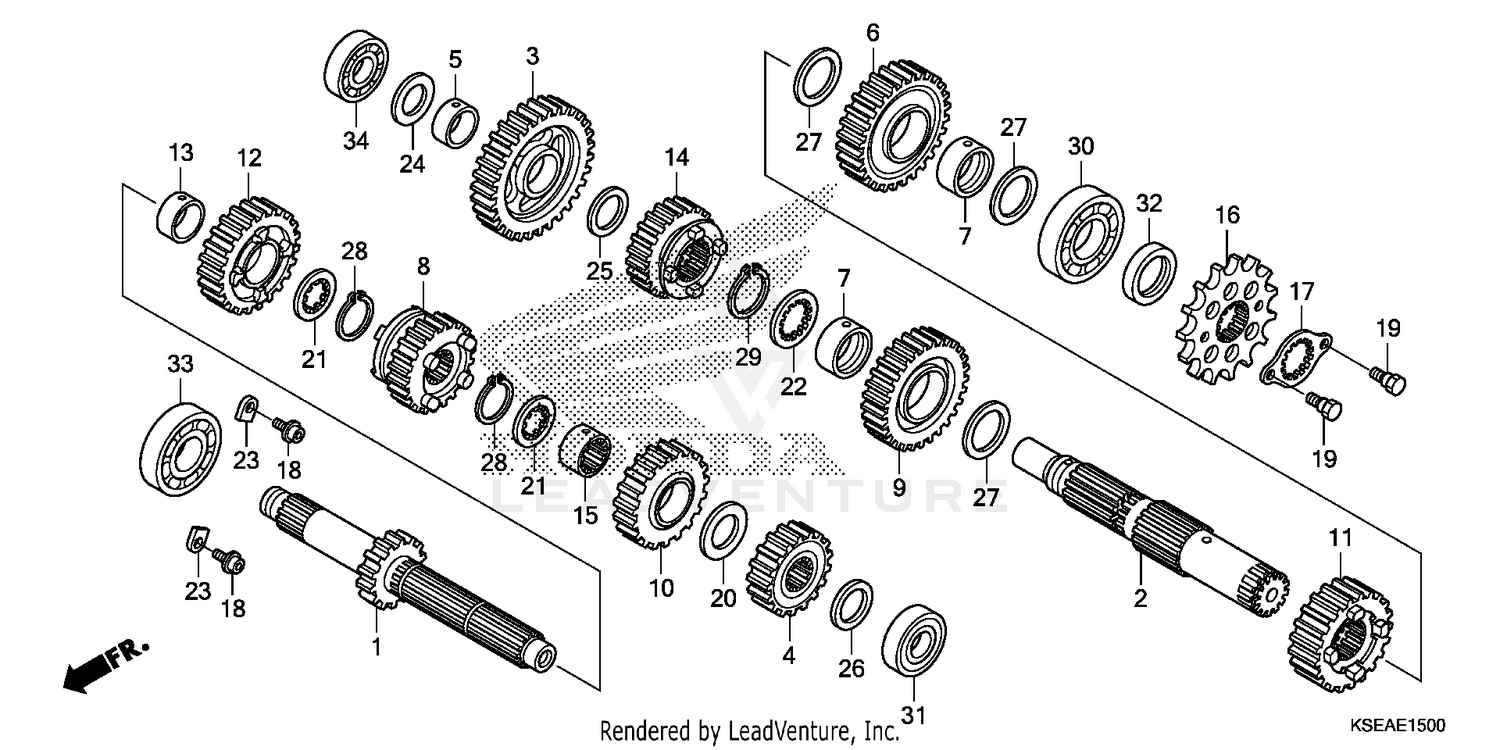

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (14T)
23210-KSE-670
|
$120.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23221-KSE-670
|
$133.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, COUNTERSHAFT LOW (31T)
23411-KSE-670
|
$96.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, MAINSHAFT SECOND (17T)
23421-KSE-670
|
$56.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR (16.5MM)
23422-KSE-670
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (28T)
23431-KSE-670
|
$90.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR (20MM)
23432-KSE-670
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT THIRD (22T)
23441-KSE-670
|
$98.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (29T)
23451-KSE-670
|
$93.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, MAINSHAFT FOURTH (19T)
23461-KSE-670
|
$80.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTERSHAFT FOURTH (21T)
23471-KSE-670
|
$91.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, MAINSHAFT FIFTH (23T)
23481-KSE-A70
|
$79.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR (18MM)
23483-KSE-670
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, COUNTERSHAFT FIFTH (22T)
23491-KSE-670
|
$98.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, SPLINE (18X11.7)
23512-KSE-670
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPROCKET, DRIVE (15T)
23801-KSE-670
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, DRIVE SPROCKET FIXING
23802-KSE-670
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE SOCKET (6X14)
90071-MF5-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, DRIVE SPROCKET FIXING
90084-041-000
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (18MM)
90401-KCZ-000
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, THRUST INVOLUTE (18X23X1.6)
90401-KSE-670
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, THRUST INVOLUTE (20X26X1)
90403-KSE-670
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, BEARING HOLDER
90441-KRM-840
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, THRUST (15MM)
90451-107-000
|
$1.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, THRUST (16.5MM)
90452-437-000
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, THRUST (15X1)
90457-HB3-000
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, THRUST (20MM)
90554-728-940
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP (18MM)
90601-030-000
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP (20MM)
90601-459-000
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BEARING, RADIAL BALL (20X47X10.5)
91004-MT3-003
|
$23.18 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, RADIAL BALL (6002U)
91008-KSE-671
|
$14.24 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL (20X30X7)
91202-KCY-761
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, RADIAL BALL (6203)
96120-62030-00
|
$21.44 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, RADIAL BALL (6202U)
96140-62020
|
$16.48 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, RADIAL BALL (6202U)
96140-62020-00
Superseded by 96140-62020
|
$16.48 | ||
|
Unavailable |
|||
