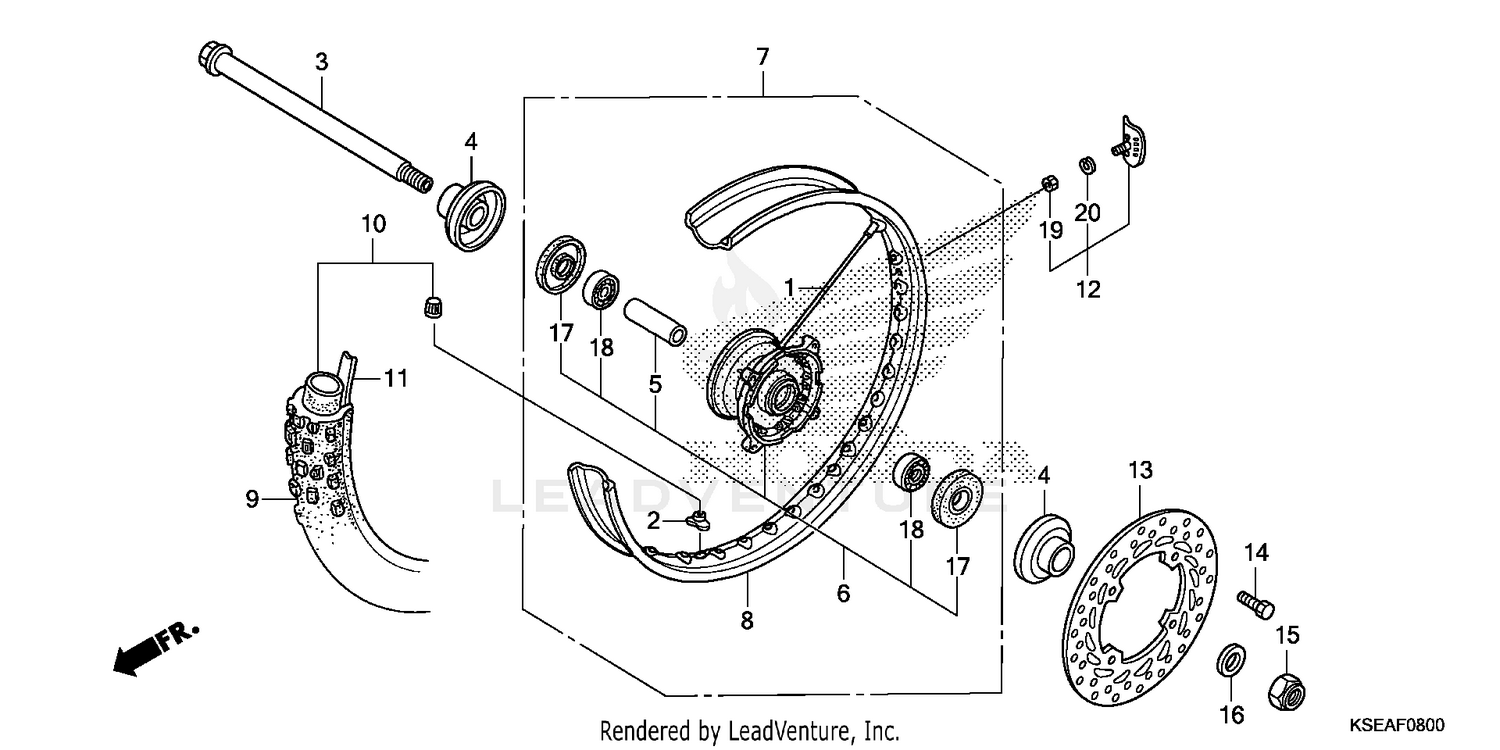

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPOKE SET A, FR.
06440-KSE-840
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, FR. WHEEL
44301-KSE-000
|
$33.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, FR. WHEEL SIDE
44312-KSE-000
|
$21.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, FR. WHEEL DISTANCE
44620-KSE-000
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
HUB SUB-ASSY., FR.
44635-KSE-670
|
$162.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
WHEEL SUB-ASSY., FR.
44650-KSE-840
|
$598.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIM, FR. WHEEL
44701-KSE-841
|
$243.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
TIRE (70/100-19 42M)
44711-KSE-F61
Superseded by 44711-KSE-F62
|
$66.25 | ||
|
Unavailable |
|||
|
#10
TUBE, TIRE (70/90-19) (DUNLOP)
44712-GE4-004
|
$35.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
FLAP, TIRE (1.40-19) (DUNLOP)
44713-GBF-861
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
STOPPER, BEAD (1.40)
44715-GC4-000
|
$38.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
DISK, FR. BRAKE
45351-KSE-000
|
$199.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, DISK (6X17)
90105-KAE-870
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U (14MM)
90305-197-013
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN (15MM)
90510-KY1-000
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
DUST SEAL (32X21X5) (NOK)
90745-GC4-701
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (6002)
91052-KSE-003
|
$14.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
