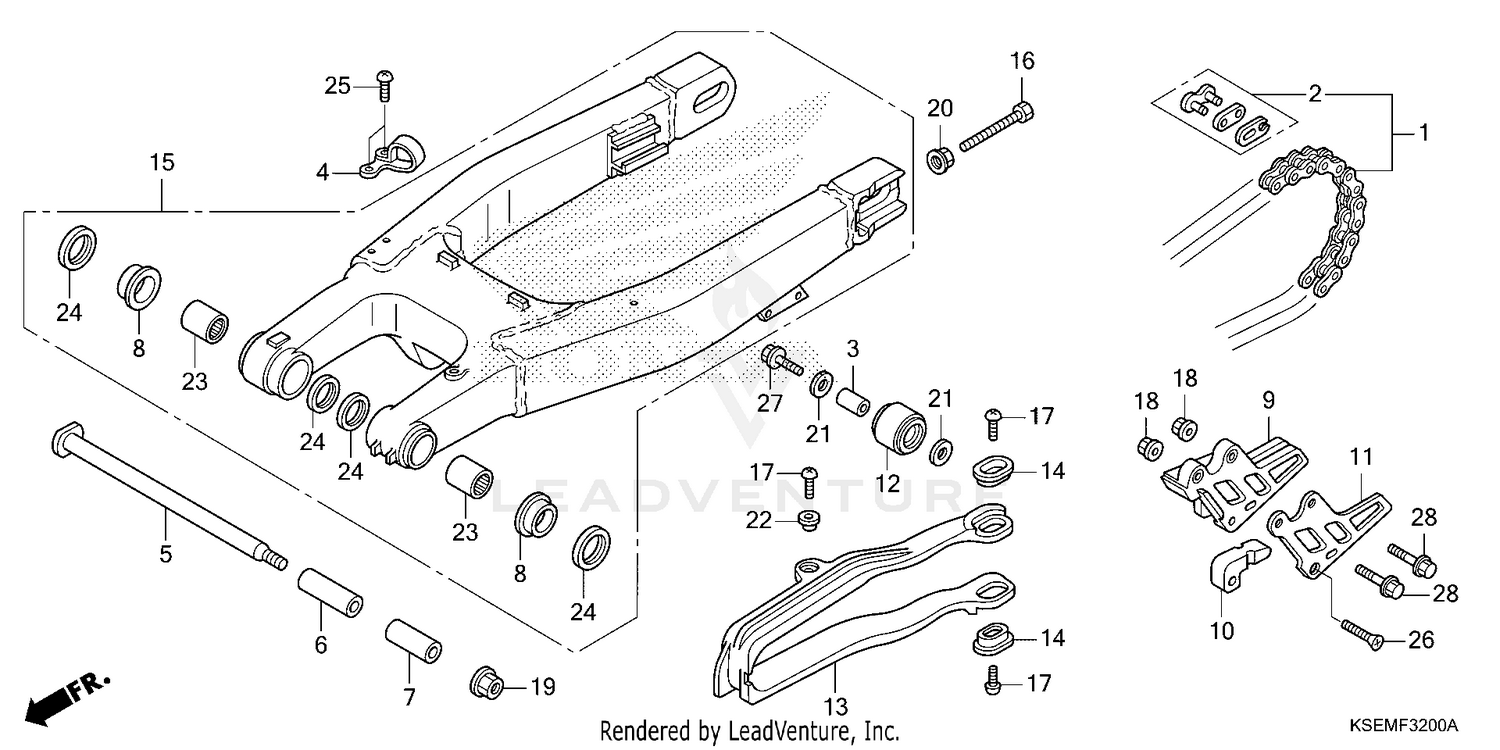

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, DRIVE (DID420DS3-120RB) (STANDARD LINK 120L)
40530-KSE-671
|
$96.55 | ||
|
Available to order. Add to View Price |
|||
|
#1
CHAIN, DRIVE (DID420DS3-130RB) (DAIDO) (STANDARD LINK 120L) (STANDARD LINK 126L)
40540-KSE-003
|
$78.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER LINK
40531-KSE-671
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, LINK
43435-392-000
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, RR. BRAKE HOSE
43468-MEB-000
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, SWINGARM PIVOT
52101-KSE-000
|
$19.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, R. SWINGARM
52141-GBF-J00
|
$22.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, L. SWINGARM
52142-GBF-J00
|
$20.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, THRUST PIVOT
52143-GBF-J00
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, CHAIN
52146-KSE-000
|
$36.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
SLIDER, CHAIN GUIDE
52147-GM7-701
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CHAIN GUIDE
52147-KSE-000
|
$27.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROLLER, CHAIN TENSIONER
52158-GBF-830
|
$21.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
SLIDER, CHAIN
52170-KSE-N10
|
$45.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SWINGARM SUB-ASSY., RR.
52200-KSE-N10
|
$826.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (8X47.5)
90105-MEN-000
|
$3.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW, PAN (5X8)
90115-KV3-700
|
$2.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, U (6MM) NUT, FLANGE (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, FLANGE (12MM) (FUSE RASHI)
90306-KF0-003
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, HEX. (10MM)
90309-357-000
|
$4.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER (8MM)
90485-KSE-000
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, HEADLIGHT CASE SETTING
90520-134-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, NEEDLE (20X26X20) (TOYO) BEARING, SWINGARM PIVOT
91070-GC4-601
|
$29.96 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL (20X26X4.5) (ARAI)
91254-KS6-003
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (8X62)
93500-05008-0A
|
$0.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
SCREW, FLAT (6X40)
93600-06040-0A
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X35)
95701-08035-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X35) (Honda Code 2112209)
96001-06035-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
