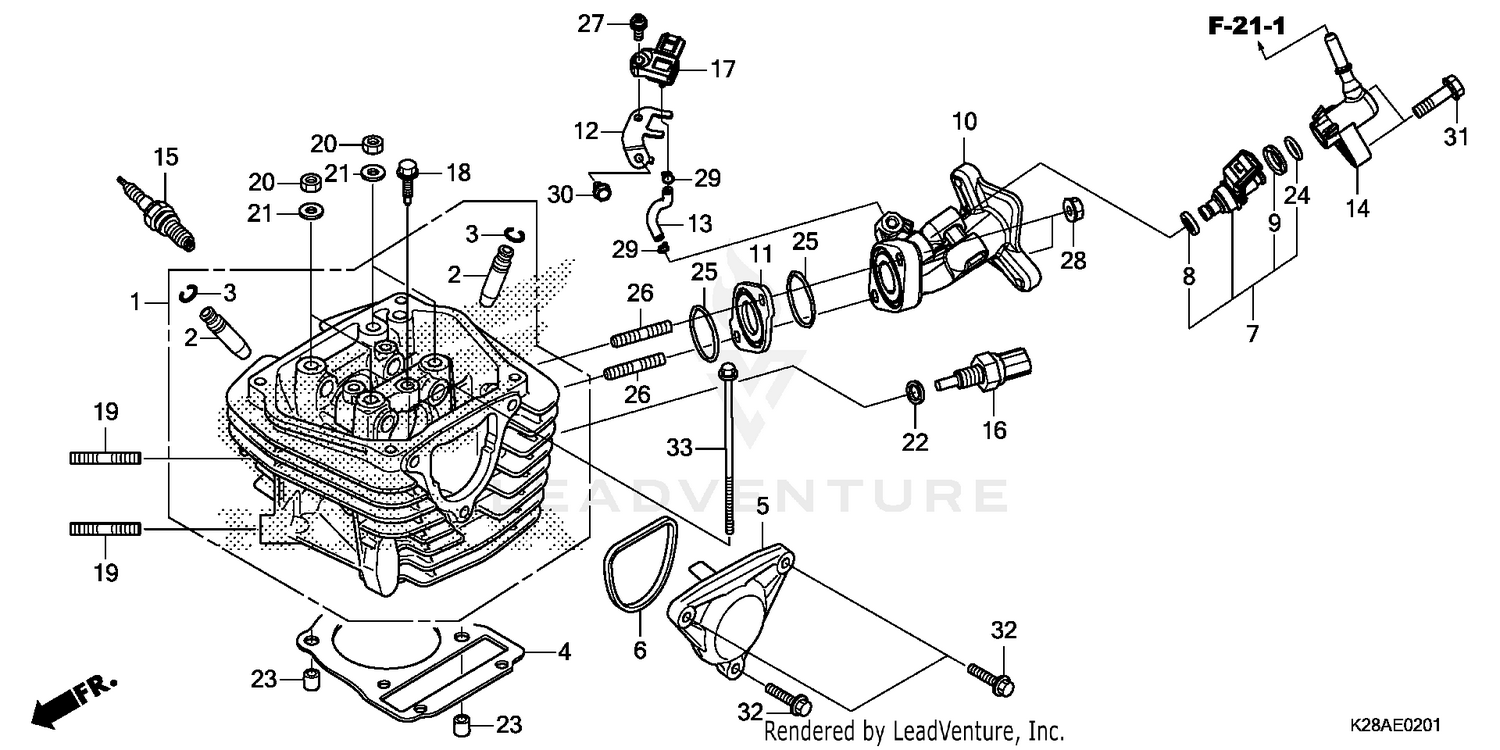

Cylinder Head (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-K28-A60
|
$387.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-KVY-305
|
$12.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP, VALVE GUIDE
12206-KPL-900
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-KYY-901
|
$19.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, L. CYLINDER HEAD SIDE
12341-KYY-900
|
$25.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, L. CYLINDER HEAD SIDE COVER
12395-KYY-900
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
INJECTOR ASSY., FUEL
16450-K28-A61
|
$160.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SEAL (Honda Code 8954000)
16472-KPC-D50
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUST SEAL RING
16473-HR3-A42
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, INLET
17111-K28-A60
|
$56.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
INSULATOR, INLET PIPE A
17113-KYY-901
|
$12.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, PB
17535-K28-A60
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, PB
17537-K28-A60
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT, INJECTOR
17565-K28-A60
|
$36.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPARK PLUG (CPR6EA-9) (NGK)
31916-KPH-901
|
$12.34 | ||
|
Available to order. Add to View Price |
|||
|
#16
SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445)
37750-KPH-701
|
$61.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
SENSOR A, MASTER POWER PRESSURE
46401-TM8-A01
|
$212.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SPECIAL (6X21)
90014-KYY-900
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, STUD (8X22)
90035-KRM-840
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEX. (7MM)
90201-GCC-000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (7.2X16X2.5)
90401-GFM-900
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SEALING (10.2MM)
90443-MB0-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, DOWEL SPECIAL (8X14)
90701-KVR-C00
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (6.3X2.2)
91301-GGL-J01
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (27X2.0)
91313-KVR-C00
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT 2, STUD (6X25)
92900-06025-0B
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW-WASHER (4X20)
93893-04020-08
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW-WASHER (4X20)
93893-04020-18
|
|||
|
Unavailable |
|||
|
#28
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CLIP, TUBE (B7) CLIP, TUBE (B6.5)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)
95701-06010-00
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X110)
96001-06110-00
|
$4.78 | ||
|
Unavailable |
|||
