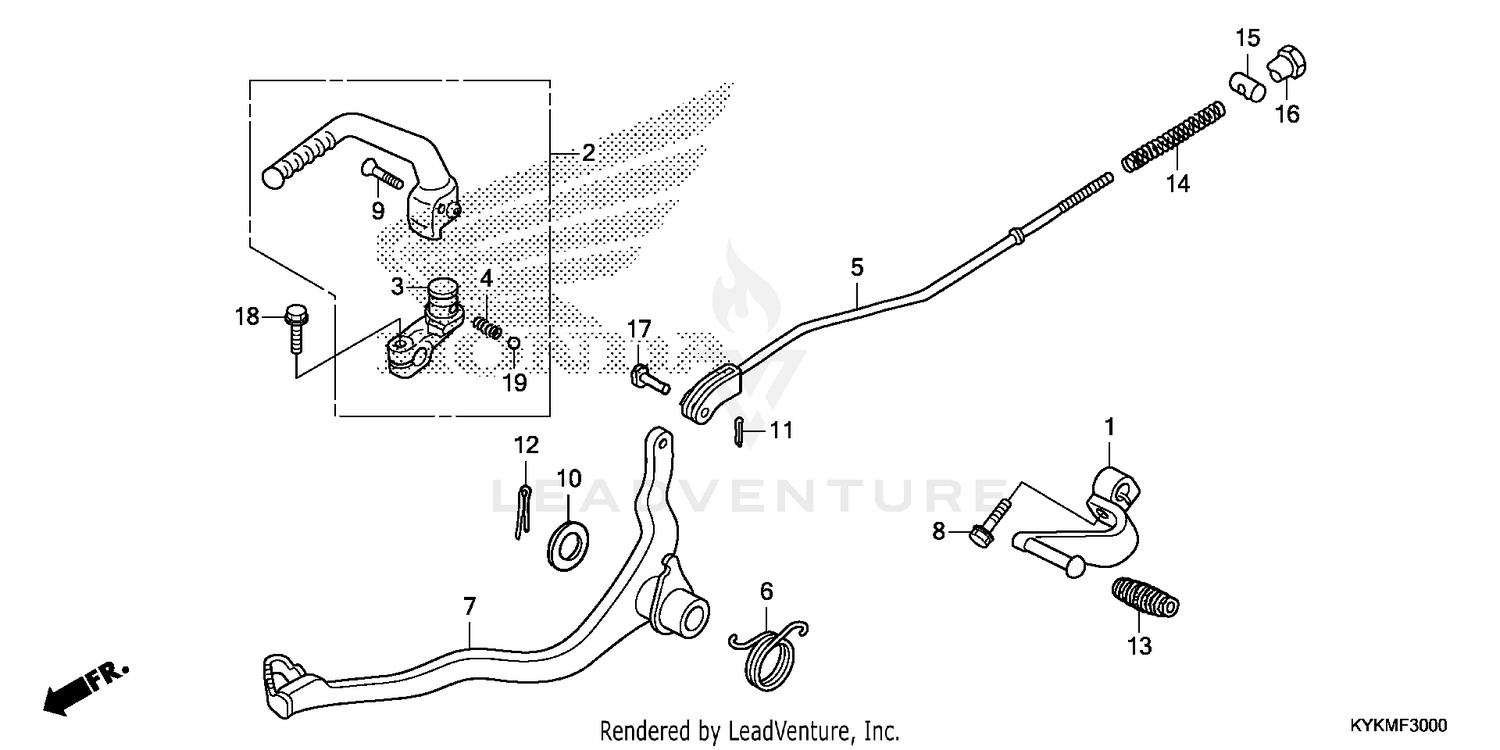

Pedal@kick Starter Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT (COO)
24701-KYK-305
|
$44.53 | ||
|
Available to order. Add to View Price |
|||
|
#1
PEDAL, GEARSHIFT (COO)
24701-KYK-910
Superseded by 24701-KYK-305
|
$44.53 | ||
|
Unavailable |
|||
|
#2
ARM ASSY., KICK STARTER (COO)
28300-KYK-305
|
$146.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM ASSY., KICK STARTER (COO)
28300-KYK-910
Superseded by 28300-KYK-305
|
$146.71 | ||
|
Unavailable |
|||
|
#3
JOINT, KICK ARM
28302-KYK-910
|
$78.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, KICK STARTER ARM SETTING
28333-KYK-910
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, RR. BRAKE
43451-KYK-910
|
$19.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, BRAKE ARM RETURN
45435-KYK-910
|
$11.81 | ||
|
Available to order. Add to View Price |
|||
|
#7
PEDAL, BRAKE (COO)
46500-KYK-305
|
$110.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
PEDAL, BRAKE (COO)
46500-KYK-910
Superseded by 46500-KYK-305
|
$110.41 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE (6X25)
90131-124-000
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, FLAT (6X22) (NOT AVAILABLE)
93600-06022-0H
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN (16MM)
94102-16000
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, COTTER (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIN, SPLIT (2.0X12)
94201-20121
Superseded by 94201-20120
|
$1.08 | ||
|
Unavailable |
|||
|
#12
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#12
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#12
PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#13
RUBBER, CHANGE PEDAL
95011-40000
|
$1.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SPRING A, BRAKE ROD
95014-73100
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
JOINT B, BRAKE ARM
95015-32001
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT B, BRAKE ROD ADJUSTING
95015-42000
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PIN, JOINT (C)
95015-53000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#19
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
