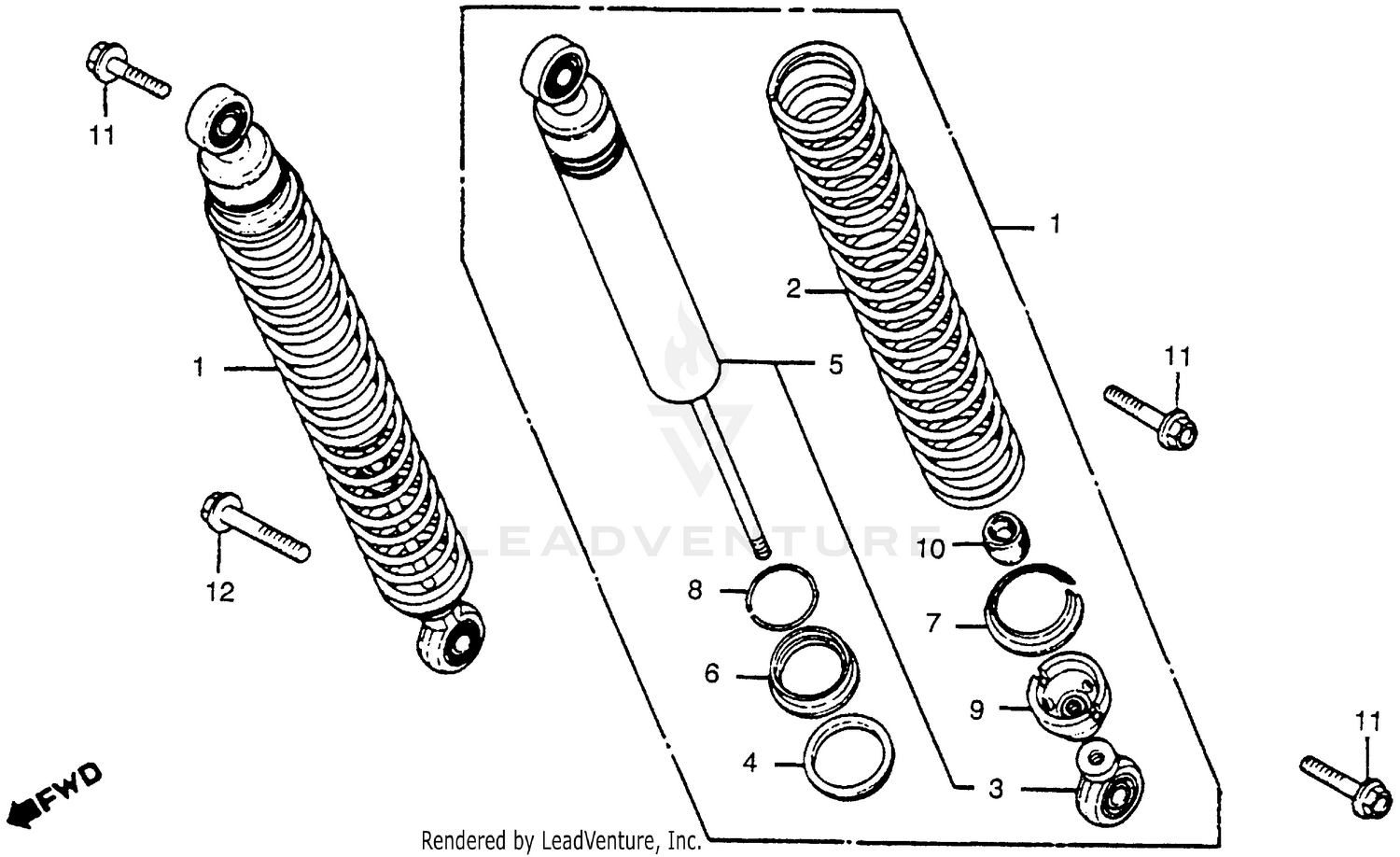

Rear Shock Absorber 78-79 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)
52400-430-010
|
$648.29 | ||
|
Unavailable |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)
52401-430-010
|
$131.51 | ||
|
Unavailable |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (WHITE) (NOT AVAILABLE)
52401-430-810
|
$131.51 | ||
|
Unavailable |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (RED)
52401-430-820
|
$179.17 | ||
|
Unavailable |
|||
|
#3
JOINT (UPPER) (NOT AVAILABLE)
52403-360-700
|
$22.62 | ||
|
Unavailable |
|||
|
#4
GUIDE, SPRING (LOWER) (NOT AVAILABLE)
52407-381-771
|
$9.87 | ||
|
Unavailable |
|||
|
#5
DAMPER, RR. (NOT AVAILABLE)
52410-430-010
|
$503.31 | ||
|
Unavailable |
|||
|
#6
ADJUSTER, SPRING (NOT AVAILABLE)
52422-400-681
|
$16.57 | ||
|
Unavailable |
|||
|
#7
SEAT, SPRING STOPPER (NOT AVAILABLE)
52459-400-681
|
$9.66 | ||
|
Unavailable |
|||
|
#8
C-RING, STOPPER (NOT AVAILABLE)
52460-400-681
|
$2.17 | ||
|
Unavailable |
|||
|
#9
SEAT, SPRING STOPPER LOCK (NOT AVAILABLE)
52483-430-000
|
$22.05 | ||
|
Unavailable |
|||
|
#10
RUBBER, STOPPER (NOT AVAILABLE)
52517-430-000
|
$4.49 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (10X35)
95800-10035-08
Superseded by 95801-10035-08
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (10X40)
95800-10040-08
Superseded by 95801-10040-08
|
$2.33 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (10X40)
95801-10040-08
|
$2.33 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (10X35)
96400-10040-08
|
|||
|
Unavailable |
|||
|
#12
BOLT, FLANGE (10X50)
95800-10050-08
Superseded by 95801-10050-08
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (10X50)
95801-10050-08
|
$2.93 | ||
|
Unavailable |
|||
