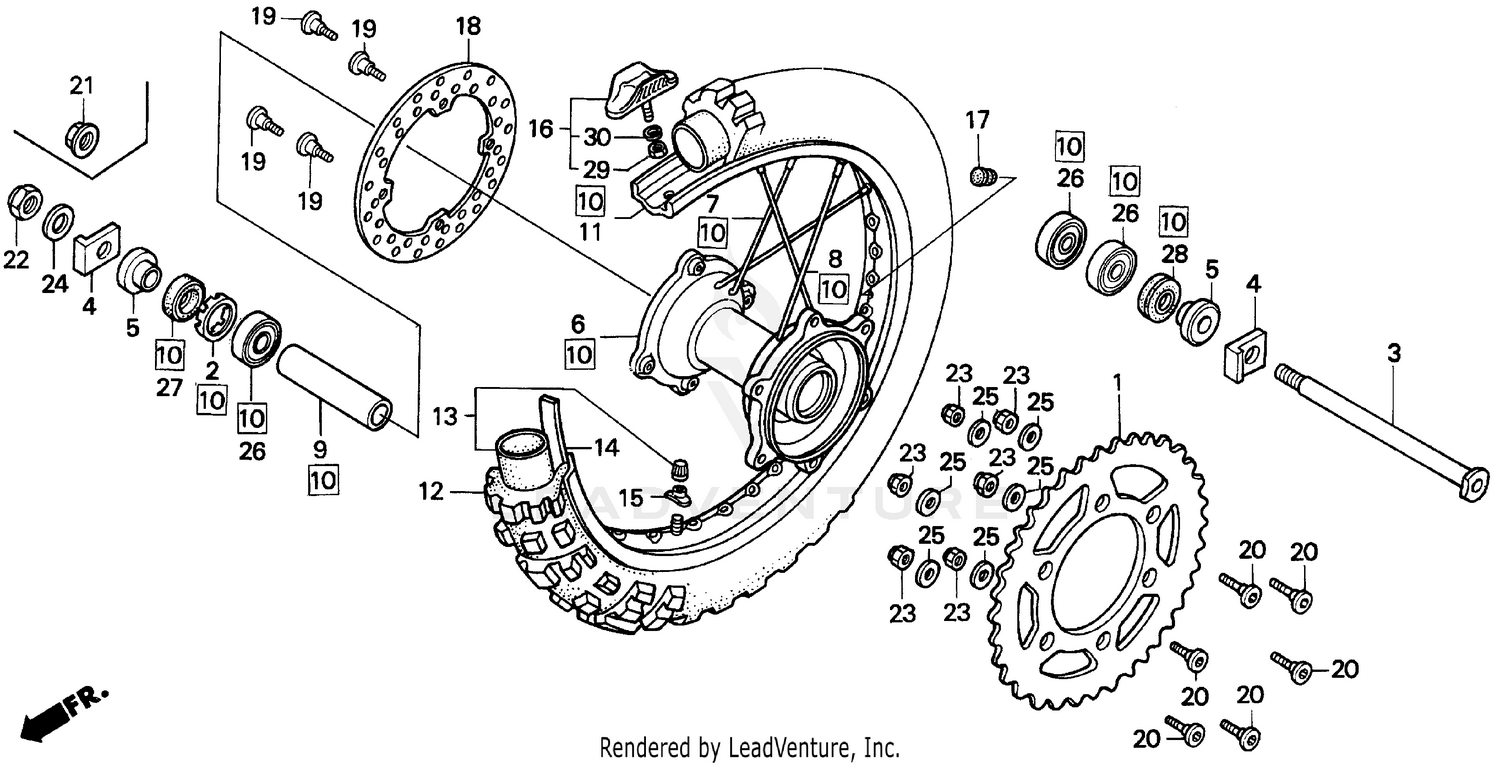

Rear Wheel 92-96 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, FINAL DRIVEN (49T)
41201-ML3-791
Superseded by 41201-KZ3-J40
|
$140.31 | ||
|
Available to order. Add to View Price |
|||
|
#1
SPROCKET, FINAL DRIVEN (47T)
41202-ML3-811
|
$155.53 | ||
|
Available to order. Add to View Price |
|||
|
#1
SPROCKET, FINAL DRIVEN (49T) (STEEL)
41204-ML3-505
|
$69.17 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (49T) (STEEL)
41204-ML3-810
Superseded by 41204-ML3-505
|
$69.17 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41201-KZ4-711
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Available to order. Add to View Price |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41202-KZ3-B00
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41202-KZ4-J20
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#2
RETAINER, RR. WHEEL BEARING
41231-KZ4-000
|
$31.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, RR. WHEEL
42301-KZ3-600
|
$53.24 | ||
|
Unavailable |
|||
|
#4
COLLAR, RR. AXLE
42306-KZ3-600
|
$22.38 | ||
|
Unavailable |
|||
|
#5
COLLAR, RR. WHEEL SIDE
42311-KZ3-600
|
$35.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
HUB, RR. WHEEL
42601-MAC-680
|
$313.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPOKE SET A, RR. (210.0MM)
04420-KZ3-600
|
$9.45 | ||
|
Unavailable |
|||
|
#8
SPOKE SET B, RR. (207.0MM)
04421-KZ3-600
|
$9.45 | ||
|
Unavailable |
|||
|
#9
COLLAR, RR. DISTANCE
42620-ML3-681
|
$39.56 | ||
|
Unavailable |
|||
|
#10
WHEEL SUB-ASSY., RR.
42650-KZ3-600
|
$968.48 | ||
|
Unavailable |
|||
|
#11
RIM, RR. WHEEL (2.15X19) (RK EXCEL)
42701-KZ3-602
|
$368.41 | ||
|
Unavailable |
|||
|
#12
TIRE, RR. (110/90-19) (DN K695) (DUNLOP)
42711-KZ3-611
|
$117.53 | ||
|
Unavailable |
|||
|
#13
TUBE, TIRE (110/90-19) (DUNLOP)
42712-KZ3-611
|
$48.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, TIRE RIM (DUNLOP)
42713-KZ3-611
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
STOPPER, BEAD (2.15)
42715-MA0-770
|
$45.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, RIM HOLE
42717-329-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
DISK, RR. BRAKE
43351-ML3-790
|
$214.59 | ||
|
Unavailable |
|||
|
#19
BOLT, DISK (8X22)
90105-MK5-010
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, FLAT (8X31)
90125-KA4-000
|
$3.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT, U (18MM)
90305-KZ4-890
Superseded by 90305-KZ4-891
|
$19.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, U (18MM)
90305-KZ4-891
|
$19.18 | ||
|
Unavailable |
|||
|
#23
NUT, U (8MM)
90309-ML3-791
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (18X32X2)
90401-KZ4-890
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (8MM)
90465-MC4-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, RADIAL BALL (6004)
91062-KS6-831
|
$38.44 | ||
|
Available to order. Add to View Price |
|||
|
#27
DUST SEAL (28X38X7)
91251-KZ4-003
|
$11.94 | ||
|
Available to order. Add to View Price |
|||
|
#28
DUST SEAL (28X42X8) (NOK)
91257-KA3-712
Superseded by 91257-MAY-003
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#28
DUST SEAL (28X42X8) (NOK)
91257-KA3-711
Superseded by 91257-MAY-003
|
$11.11 | ||
|
Unavailable |
|||
|
#28
DUST SEAL (28X42X8) (NOK)
91257-MAY-003
|
$11.11 | ||
|
Unavailable |
|||
|
#29
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
