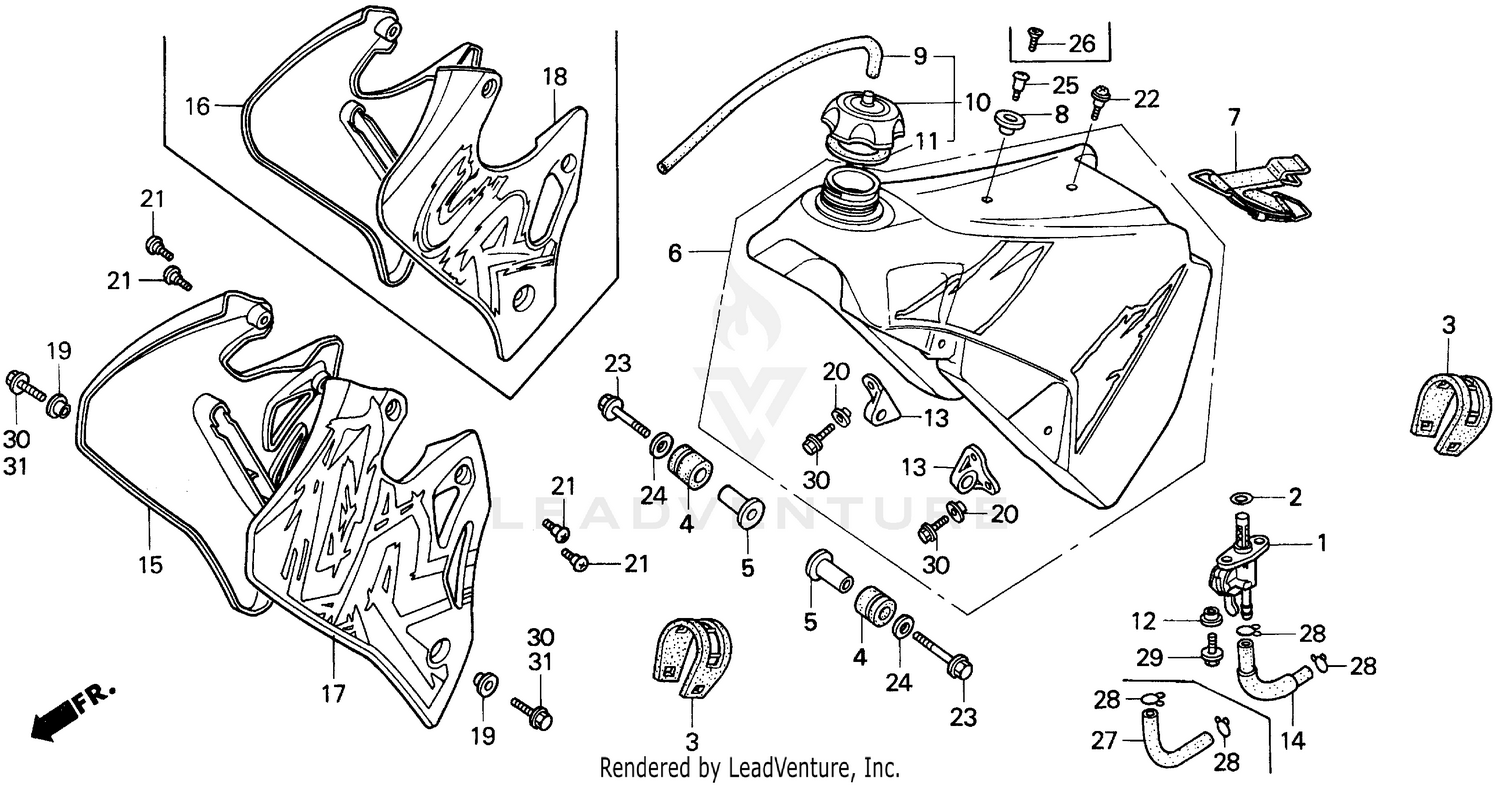

Fuel Tank 92-96 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-ML3-911
|
$61.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
O-RING (11.8X3.55)
16997-467-000
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
RUBBER, FUEL TANK SETTING
17506-KZ3-860
|
$27.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, TANK MOUNTING
17508-KS6-700
Superseded by 17508-GBF-830
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, TANK SETTING
17509-KS6-700
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
TANK SET, FUEL (TYPE1) (WL)
17500-KZ3-600ZA
|
$495.57 | ||
|
Unavailable |
|||
|
#7
BAND, RR. TANK
17516-MAC-680
|
$33.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, FR. SEAT
17518-KZ4-710
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, FUEL CAP BREATHER
17521-429-000
|
$8.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CAP ASSY., FUEL TANK
17620-ML3-600
|
$46.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, FUEL TANK CAP
17624-KA4-000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, FUEL TANK SETTING
17626-467-000
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, FR. FUEL TANK
17634-KZ3-860
|
$17.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE ASSY., FUEL
17681-KZ3-710
|
$9.11 | ||
|
Unavailable |
|||
|
#15
SHROUD SET, R. RADIATOR (TYPE1) (WL)
19071-KZ3-600ZA
|
$98.22 | ||
|
Unavailable |
|||
|
#17
SHROUD SET, L. RADIATOR (TYPE1) (WL)
19072-KZ3-600ZA
|
$98.22 | ||
|
Unavailable |
|||
|
#19
COLLAR, FR. WHEEL COVER
44125-MN5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
84706-415-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, SPECIAL (5MM)
90102-GT4-000
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (5X13)
90108-MN0-000
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X40)
90137-KA3-830
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, FENDER SETTING
90506-430-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW, SPECIAL (5MM)
91422-MT8-770
|
$3.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X18)
96001-06018-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
