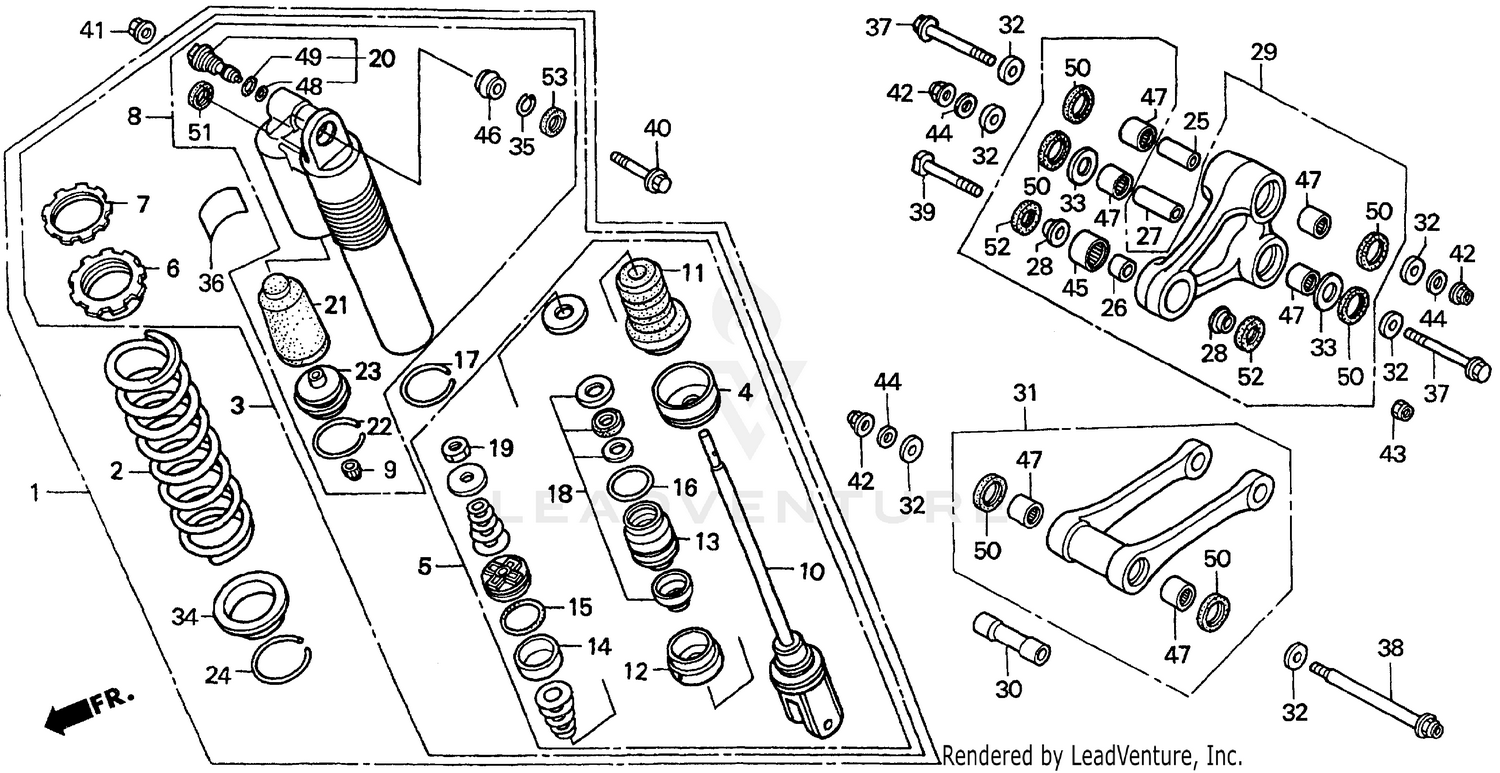

Rear Shock Absorber 98-99 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY., RR. (SHOWA)
52400-KZ3-A71
|
$984.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (48.1N/MM,4.90KGF/MM) (SHOWA)
52401-KZ3-A71
|
$148.70 | ||
|
Unavailable |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (4.70KGF/MM) (SHOWA)
52402-KZ3-A71
|
$148.70 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (50.0N/MM,5.10KGF/MM) (SHOWA)
52403-KZ3-A71
|
$148.70 | ||
|
Unavailable |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (52.0N/MM,5.30KGF/MM) (SHOWA)
52404-KZ3-A71
|
$134.47 | ||
|
Unavailable |
|||
|
#3
DAMPER, RR. (SHOWA)
52410-KZ3-A71
|
$766.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, SPRING SEAT
52419-KZ3-A71
|
$15.95 | ||
|
Unavailable |
|||
|
#5
ROD, PISTON
52421-KZ3-A71
|
$294.21 | ||
|
Unavailable |
|||
|
#6
ADJUSTER, SPRING
52422-KS7-701
|
$38.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, ADJUSTER
52423-KS7-701
|
$29.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE, SHOCK ABSORBER
52425-KZ3-A71
|
$739.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, AIR VALVE (SHOWA)
52425-169-003
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD
52426-KZ3-A71
|
$341.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, STOPPER
52427-KZ3-891
|
$23.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PLATE, END
52428-KZ3-B01
|
$10.71 | ||
|
Unavailable |
|||
|
#13
CASE, ROD GUIDE
52429-KZ3-B01
|
$16.28 | ||
|
Unavailable |
|||
|
#14
RING, PISTON
52431-KZ3-B01
|
$8.83 | ||
|
Unavailable |
|||
|
#15
O-RING (39.5X2.0)
52432-KZ3-861
|
$3.60 | ||
|
Unavailable |
|||
|
#16
O-RING (39.7X3.5)
52434-KZ3-861
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, STOPPER (SHOWA)
52435-KZ3-861
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL SET
52436-KZ3-305
|
$52.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEX. (12MM)
52438-KA4-741
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
ADJUSTER, COMPRESSION DAMPING FORCE
52440-KZ3-A71
|
$71.28 | ||
|
Available to order. Add to View Price |
|||
|
#21
BLADDER
52451-KZ3-891
|
$21.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING, STOPPER
52452-KS7-831
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, CHAMBER
52453-KS7-831
|
$47.74 | ||
|
Unavailable |
|||
|
#24
RING, STOPPER (SHOWA)
52455-MM5-003
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR C, CUSHION ARM
52463-KZ3-B00
|
$13.97 | ||
|
Unavailable |
|||
|
#26
COLLAR D, CUSHION
52463-KZ4-B00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR B, CUSHION ARM
52464-KZ3-J00
|
$13.57 | ||
|
Unavailable |
|||
|
#28
COLLAR D, CUSHION SIDE
52464-KZ4-B00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#29
ARM SUB-ASSY., CUSHION
52465-KZ3-J00
|
$277.61 | ||
|
Unavailable |
|||
|
#30
COLLAR, CONNECTING ROD
52473-KZ3-J00
|
$20.88 | ||
|
Unavailable |
|||
|
#31
ROD SUB-ASSY., SHOCK CONNECTING
52475-KZ3-J00
|
$175.50 | ||
|
Unavailable |
|||
|
#32
COLLAR, CONNECTING ROD SIDE
52475-KZ3-860
|
$15.31 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, THRUST
52476-KZ3-860
|
$13.27 | ||
|
Available to order. Add to View Price |
|||
|
#34
SEAT, SPRING
52486-KZ3-003
|
$26.63 | ||
|
Unavailable |
|||
|
#35
RING, STOPPER
52487-KA4-831
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#36
LABEL, RR. DAMPER WARNING
87516-KZ1-600
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, LINK (15X96)
90130-KZ3-B00
|
$17.71 | ||
|
Unavailable |
|||
|
#38
BOLT, LINK (15X132)
90131-KZ3-J00
|
$20.56 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, CUSHION (LOWER) (10X43.5)
90153-KZ4-710
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (10X58)
90182-KA3-730
Superseded by 90153-KK0-000
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, U (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
NUT, HEX. (12MM)
90306-KBP-901
Superseded by 90306-GAB-711
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, U (10MM)
90306-KZ4-711
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
WASHER, PLAIN (12MM)
90504-SF4-000
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#45
BEARING, NEEDLE (19X26X15)
91074-KZ4-B01
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#46
BEARING, SPHERICAL (10)
91074-MAC-741
|
$42.44 | ||
|
Available to order. Add to View Price |
|||
|
#47
BEARING, NEEDLE (22X28X16)
91078-KZ3-731
|
$39.95 | ||
|
Available to order. Add to View Price |
|||
|
#48
O-RING (21.5X1.5)
91256-KZ3-731
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#49
O-RING (26.2X1.9)
91257-KZ3-891
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#50
DUST SEAL (27X34X4)
91261-KZ3-861
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#51
DUST SEAL, RR. CUSHION PIVOT
91351-KZ3-731
|
$6.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
DUST SEAL (17X26X3)
91351-KZ4-B01
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#53
DUST SEAL (16X26X3)
91351-MAC-671
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
