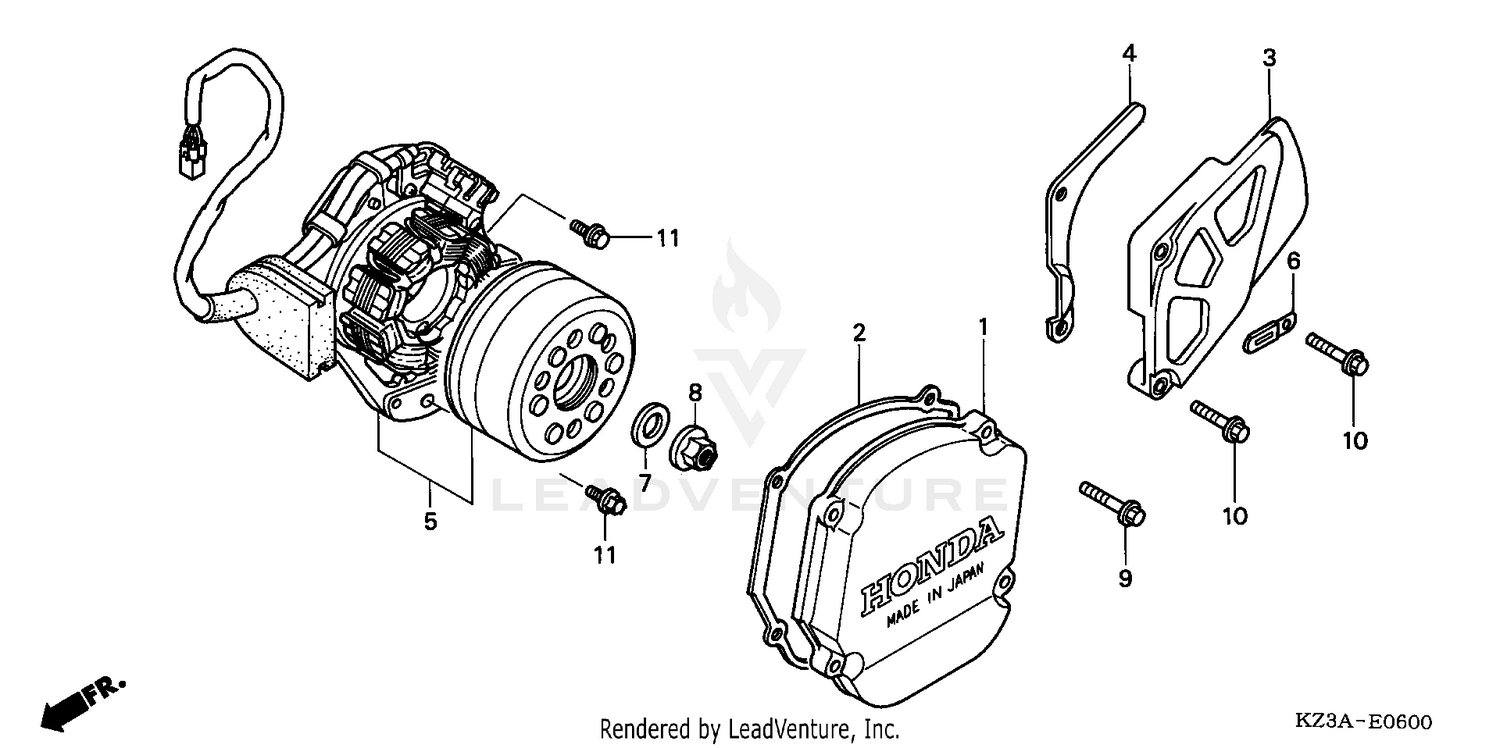

Left Crankcase Cover + Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CASE
11351-KZ3-L20
|
$55.01 | ||
|
Unavailable |
|||
|
#2
GASKET, L. COVER
11352-KZ3-L20
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, DRIVE SPROCKET
23810-KZ3-L20
|
$26.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, DRIVE CHAIN
23812-KZ3-L20
|
$11.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
ALTERNATOR ASSY., FLYWHEEL TYPE
31100-KZ3-J41
|
$485.13 | ||
|
Unavailable |
|||
|
#6
CLIP, PULSER WIRE
32925-958-000
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLAIN (12MM)
90437-611-000
|
$5.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
NUT, FLANGE (12MM)
94050-12000
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X32)
96001-06032-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X18)
96300-06018-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
