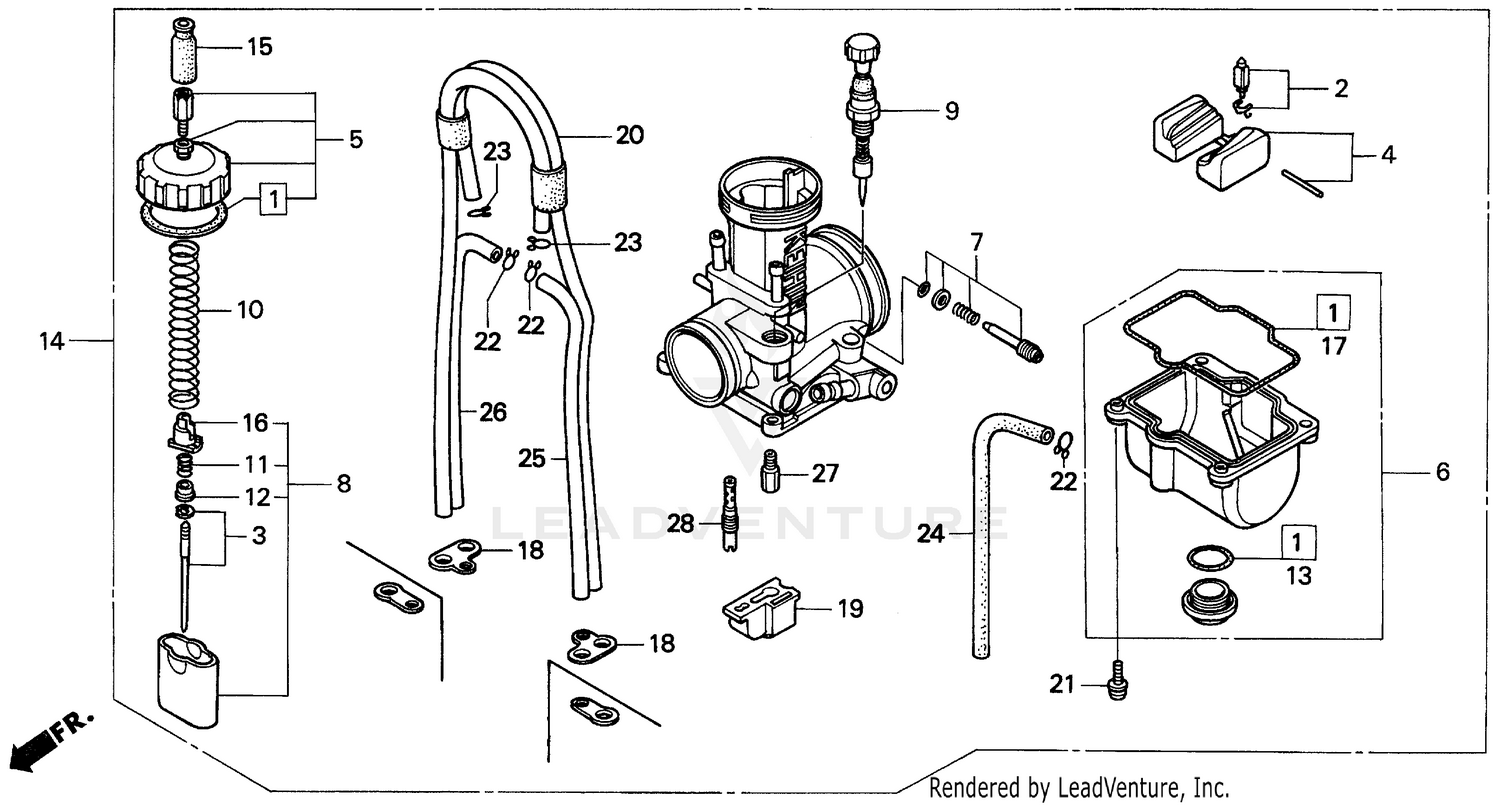

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-KA5-691
|
$56.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-KA3-741
|
$54.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE SET, JET (R1369LS)
16203-KZ3-A20
|
$21.21 | ||
|
Unavailable |
|||
|
#4
FLOAT SET
16013-KA3-741
Superseded by 16013-HA2-671
|
$59.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
TOP SET
16014-KA5-691
|
$41.39 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT
16015-VM0-004
|
$70.18 | ||
|
Unavailable |
|||
|
#7
SCREW SET A
16016-ML3-910
|
$27.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE SET, THROTTLE
16022-KZ3-690
|
$118.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE SET, STARTER
16046-KS7-004
|
$79.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION
16050-KA5-691
|
$16.34 | ||
|
Unavailable |
|||
|
#11
SPRING, COMPRESSION COIL
16051-KA3-761
|
$18.75 | ||
|
Unavailable |
|||
|
#12
COLLAR, SPRING SETTING
16066-KA3-761
|
$3.49 | ||
|
Unavailable |
|||
|
#13
O-RING (2.4X18.6)
16075-GHB-B00
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
CARBURETOR ASSY. (PJ28K A)
16100-KZ3-A20
|
$366.75 | ||
|
Unavailable |
|||
|
#15
CAP, CABLE SEALING
16118-GHB-600
Superseded by 16118-166-004
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, CABLE
16137-KA3-761
|
$13.10 | ||
|
Unavailable |
|||
|
#17
GASKET, FLOAT CHAMBER
16163-KZ3-B10
|
$15.61 | ||
|
Unavailable |
|||
|
#18
BINDER
16179-KZ4-690
|
$11.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, BUFFER
16185-KA3-761
|
$12.46 | ||
|
Unavailable |
|||
|
#20
TUBE, AIR VENT
16199-KZ3-880
|
$21.96 | ||
|
Unavailable |
|||
|
#21
SCREW-WASHER (4X16)
93892-04016-08
|
$0.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW-WASHER (4X16)
93892-04016-18
Superseded by 93892-04016-08
|
$0.77 | ||
|
Unavailable |
|||
|
#22
CLIP, TUBE (B17)
95002-02079
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, TUBE (B17)
95002-02079
|
$1.36 | ||
|
Unavailable |
|||
|
#24
TUBE, OVERFLOW
16143-MAC-880
Superseded by 16199-KZ3-505
|
$2.65 | ||
|
Unavailable |
|||
|
#25
TUBE, AIR VENT
16144-MAC-880
Superseded by 16198-KZ3-P00
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
TUBE, AIR VENT
16198-KZ3-P00
|
$5.58 | ||
|
Unavailable |
|||
|
#26
TUBE, AIR VENT
16198-KZ3-P00
|
$5.58 | ||
|
Unavailable |
|||
|
#26
TUBE, AIR VENT
16198-MAC-880
Superseded by 16198-KZ3-P00
|
$5.58 | ||
|
Unavailable |
|||
|
#27
JET, MAIN (#175)
99113-GHB-1750
Superseded by 99101-357-1750
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET, SLOW (#52)
99103-440-0520
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
