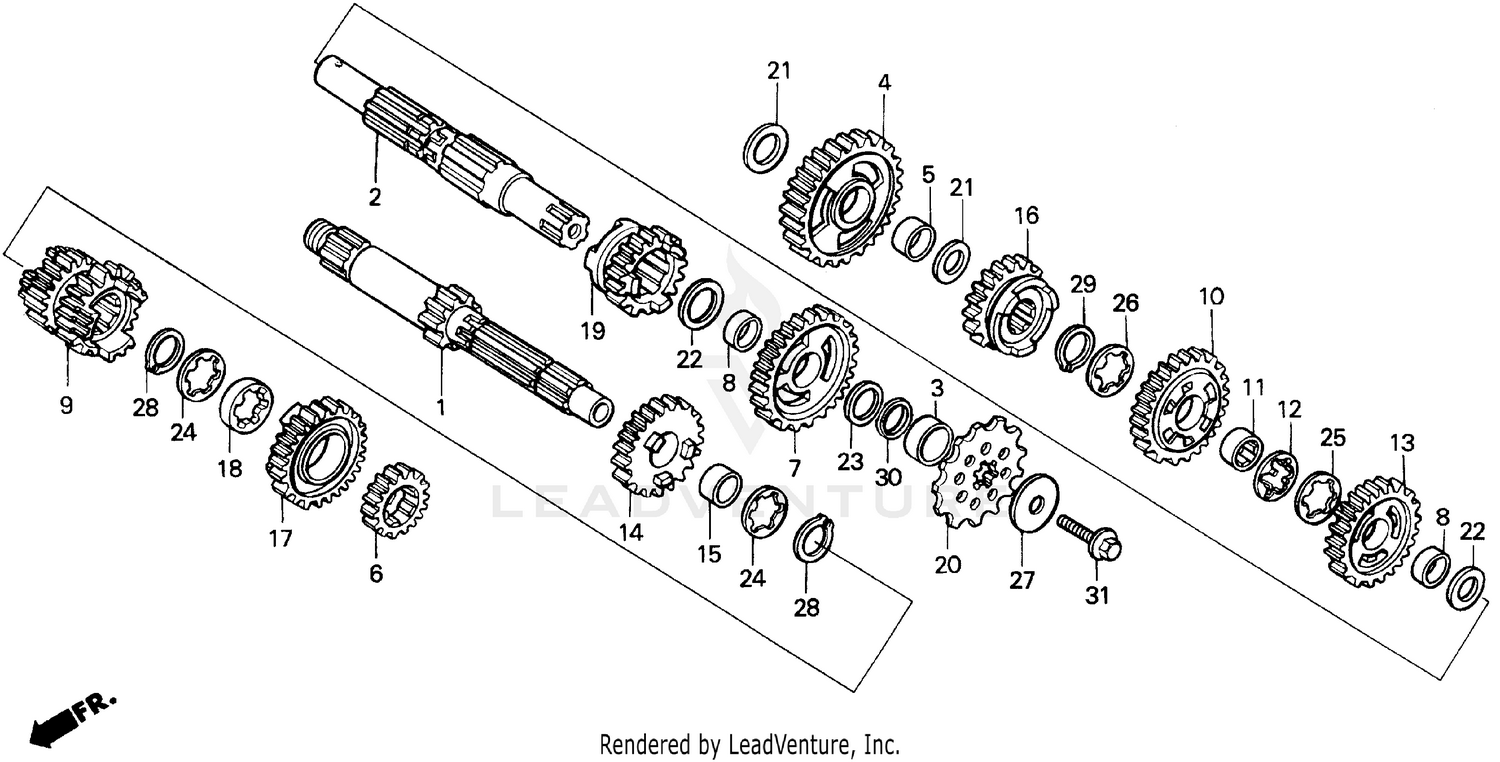

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT
23210-KZ4-890
|
$121.84 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT
23221-KZ4-890
Superseded by 23221-KZ4-B00
|
$84.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23221-KZ4-B00
|
$84.07 | ||
|
Unavailable |
|||
|
#3
COLLAR, COUNTERSHAFT
23225-KS6-000
|
$19.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTERSHAFT LOW (33T)
23411-KZ4-700
|
$106.38 | ||
|
Unavailable |
|||
|
#5
COLLAR (17MM)
23413-KZ4-000
|
$18.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, MAINSHAFT SECOND (15T)
23421-KZ4-L20
|
$39.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, MAINSHAFT SECOND (15T)
23421-KZ4-000
Superseded by 23421-KZ4-L20
|
$39.33 | ||
|
Unavailable |
|||
|
#7
GEAR, COUNTERSHAFT SECOND (28T)
23431-KZ4-000
|
$91.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR (22MM)
23432-KZ4-000
|
$18.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, MAINSHAFT THIRD & FOURTH (19/21T)
23441-KZ4-700
Superseded by 23441-KZ4-B00
|
$95.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTERSHAFT THIRD (29T)
23451-KZ4-000
|
$112.76 | ||
|
Unavailable |
|||
|
#11
COLLAR, SPLINE (22X19X5)
23452-KZ4-000
|
$19.29 | ||
|
Unavailable |
|||
|
#12
WASHER, LOCK
23456-KA3-000
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, COUNTERSHAFT FOURTH (27T)
23461-KZ4-010
Superseded by 23461-KZ4-B00
|
$94.97 | ||
|
Unavailable |
|||
|
#13
GEAR, COUNTERSHAFT FOURTH (27T)
23461-KZ4-B00
|
$94.97 | ||
|
Unavailable |
|||
|
#14
GEAR, MAINSHAFT FIFTH (23T)
23471-KZ4-010
|
$108.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR (20MM)
23472-KZ4-000
|
$18.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, COUNTERSHAFT FIFTH (26T)
23481-KZ4-700
|
$97.64 | ||
|
Unavailable |
|||
|
#17
GEAR, MAINSHAFT SIXTH (24T)
23491-KZ4-000
|
$77.81 | ||
|
Unavailable |
|||
|
#18
COLLAR, MAINSHAFT SIXTH GEAR
23492-KA3-710
|
$35.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, COUNTERSHAFT SIXTH (24T)
23501-KZ4-700
|
$97.20 | ||
|
Unavailable |
|||
|
#20
SPROCKET, DRIVE (13T)
23803-KS6-700
|
$33.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, THRUST (17.2MM)
90446-357-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, THRUST (22X30X1)
90452-KZ4-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (20X30X1.5)
90453-KZ4-000
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPLINE (20MM)
90461-444-000
|
$6.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, SPLINE (22MM)
90464-KZ4-730
|
$14.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, SPLINE (22MM)
90464-444-000
|
$6.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, SPRING (8X40)
90501-KA3-741
Superseded by 90501-HB9-003
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
SET-RING (20MM)
90601-360-000
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#29
SET-RING, COUNTER SECOND
90602-360-000
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (20MM)
91351-KA3-711
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, UBS (8X33)
90112-413-000
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
