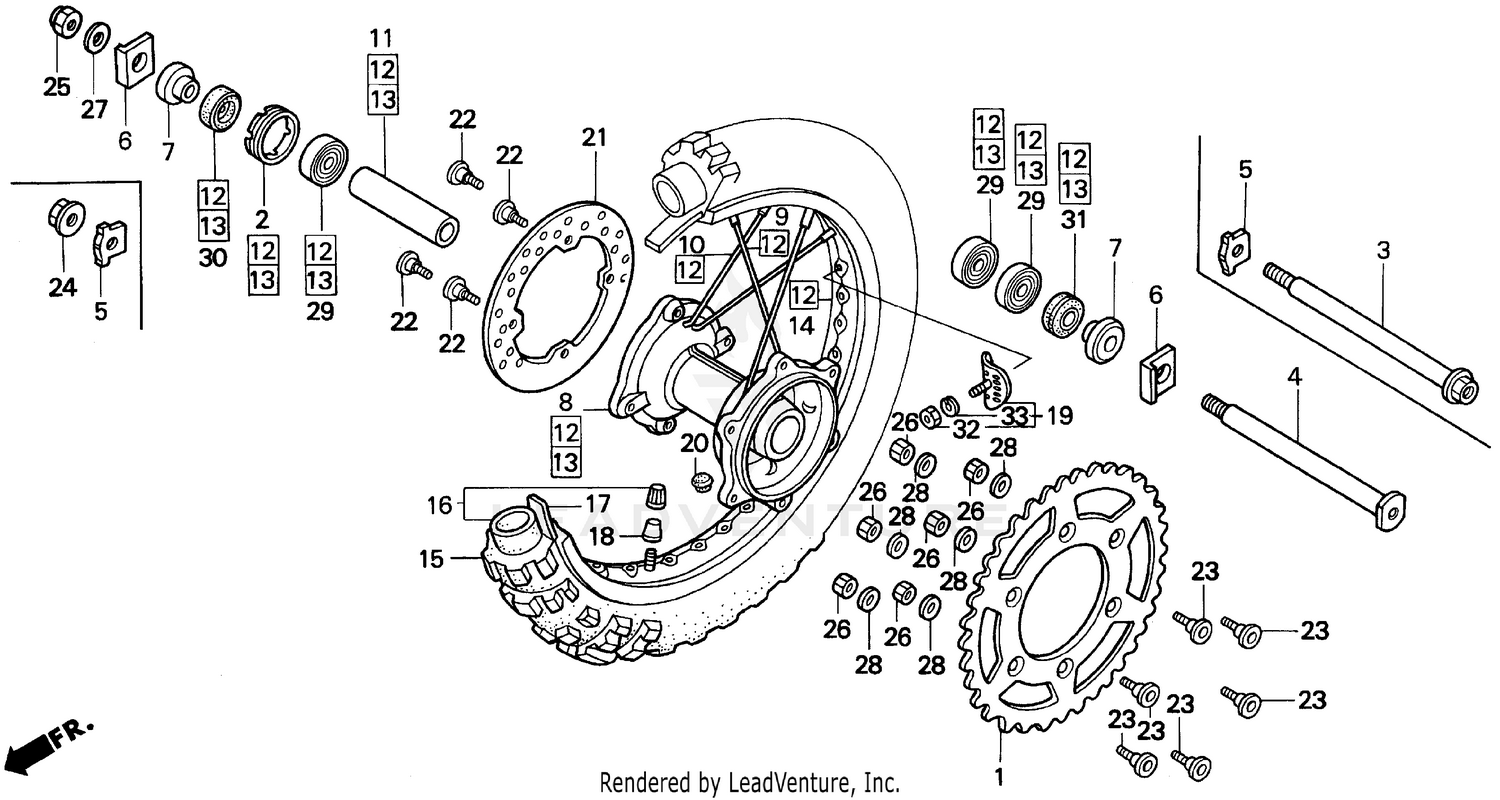

Rear Wheel 92-97 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, FINAL DRIVEN (51T)
41201-KZ4-861
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Available to order. Add to View Price |
|||
|
#1
SPROCKET, FINAL DRIVEN (49T)
41201-ML3-791
Superseded by 41201-KZ3-J40
|
$140.31 | ||
|
Available to order. Add to View Price |
|||
|
#1
SPROCKET, FINAL DRIVEN (53T)
41203-KZ4-811
|
$143.08 | ||
|
Available to order. Add to View Price |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T) (STEEL)
41204-KA3-710
|
$62.74 | ||
|
Unavailable |
|||
|
#2
RETAINER, RR. WHEEL BEARING
41231-KZ4-000
|
$31.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
AXLE, RR. WHEEL
42301-KZ3-861
|
$49.48 | ||
|
Unavailable |
|||
|
#6
COLLAR, RR. AXLE
42306-KZ3-860
|
$20.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, RR. WHEEL SIDE
42311-KS6-830
|
$35.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
HUB, RR. WHEEL
42601-ML3-790
|
$425.34 | ||
|
Unavailable |
|||
|
#9
SPOKE SET A, RR.
42610-ML3-405
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPOKE SET B, RR.
42611-ML3-405
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, RR. DISTANCE
42620-ML3-681
|
$39.56 | ||
|
Unavailable |
|||
|
#12
WHEEL SET, RR.
42650-KZ4-305
|
$904.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
RIM, RR. WHEEL (18X1.85 U06)
42701-KZ4-861
|
$335.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
TIRE, RR. (100/100-18) (59M D756) (DUNLOP)
42711-KZ4-771
Superseded by 42711-KSC-004
|
$104.27 | ||
|
Unavailable |
|||
|
#16
TUBE, TIRE
42712-KS6-003
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#16
TUBE, TIRE
42712-KS6-641
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#16
TUBE, TIRE
42712-KS7-641
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#16
TUBE, TIRE
42712-KT1-671
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#16
TUBE, TIRE
42712-KV6-009
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#16
TUBE, TIRE
42712-300-004
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#16
TUBE, TIRE
42712-400-003
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#17
FLAP, TIRE (2.15-18) (DUNLOP)
42713-KS6-641
Superseded by 42713-300-004
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER, BEAD (1.85)
42715-KA2-680
|
$39.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP, RIM HOLE
42717-329-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
DISK, RR. BRAKE
43351-ML3-790
|
$214.59 | ||
|
Unavailable |
|||
|
#22
BOLT, DISK (8X22)
90105-MK5-010
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, FLAT (8X31)
90125-KA4-000
|
$3.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, U (18MM)
90305-KZ4-890
Superseded by 90305-KZ4-891
|
$19.18 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, U (18MM)
90305-KZ4-891
|
$19.18 | ||
|
Unavailable |
|||
|
#26
NUT, U (8MM)
90309-ML3-791
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER (18X32X2)
90401-KZ4-890
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER (8MM)
90465-MC4-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, RADIAL BALL (6004)
91062-KS6-831
|
$38.44 | ||
|
Available to order. Add to View Price |
|||
|
#30
DUST SEAL (28X38X7)
91251-KZ4-003
|
$11.94 | ||
|
Available to order. Add to View Price |
|||
|
#31
DUST SEAL (28X42X8) (NOK)
91257-KA3-712
Superseded by 91257-MAY-003
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#31
DUST SEAL (28X42X8) (NOK)
91257-KA3-711
Superseded by 91257-MAY-003
|
$11.11 | ||
|
Unavailable |
|||
|
#31
DUST SEAL (28X42X8) (NOK)
91257-MAY-003
|
$11.11 | ||
|
Unavailable |
|||
|
#32
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
